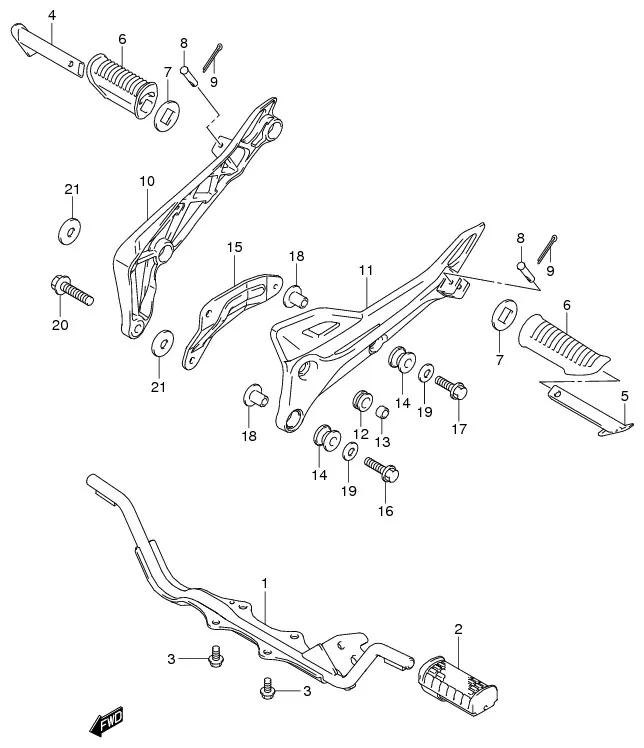

FIG.29 FOOTREST

FIG.29 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 43510B45H20N000		 BAR, FRONT FOOTREST 1 -
2 43551-45H00-000
SUB: 43551B45H00N000		 RUBBER, FRONT FOOTREST 2 Rp25.000
3 01550-0816A-000 BOLT 4 Rp6.000
4 43610-34A00-000
SUB: 43610B34A00N000		 BAR, RH 1 Rp15.000
5 43710-34A00-000
SUB: 43710B34A00N000		 BAR, LH 1 Rp15.000
6 43612-09G00-000
SUB: 43612B09G00N000		 RUBBER 2 Rp14.000
7 43631-09G00-000 WASHER 2 Rp7.500
8 09200-06041-000
SUB: 09200B06041N000		 PIN 2 Rp4.000
9 04111-2515A-000 COTTER PIN 2 Rp8.500
10 DISCONTINUE
SUB: 43811B45H20N000		 BRACKET, PILLION RH 1 -
11 DISCONTINUE
SUB: 43821B45H10N000		 BRACKET, PILLION LH 1 -
12 DISCONTINUE
SUB: 43817B23F20N000		 RUBBER, PIVOT LH 1 -
13 DISCONTINUE
SUB: 43816-23F20-000		 SPACER, LH 1 -
14 43818-07H00-000
SUB: 43818B07H00N000		 CUSHION, LH 2 Rp8.500
15 43822-45H10-000
SUB: 43822B45H10N000		 PLATE, LH 1 Rp110.000
18 09180-08151-000
SUB: 09180B08151N000		 SPACER, LH 2 Rp22.000
19 09160-08134-000 WASHER, LH 2 Rp7.500
20 01550-1025A-000 BOLT, RH 1 Rp3.500
21 DISCONTINUE
SUB: 09160B10079N000		 WASHER, RH 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
