SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 LEG SHIELD (FW110DL0/SDL0)FIG.33 FRAME HEAD COVERFIG.34 FRONT FENDERFIG.35 HANDLE BARFIG.36 HANDLE COVERFIG.37 HANDLE LEVERFIG.38 REAR FENDERFIG.39 LUGGAGE BOXFIG.40 LABELFIG.41 SEATFIG.42 FRONT DAMPER (FW110DL0)FIG.43 FRONT DAMPER (FW110DL0/SCDL0)FIG.44 STEERING STEEMFIG.45 FRONT WHEEL (FW110DL0)FIG.46 FRONT WHEEL (FW110SDL0)FIG.47 FRONT WHEEL (FW110SCDL0)FIG.48 FRONT CALIPER (FW110SDL0/FW110SCDL0)FIG.49 FRONT MASTER CYLINDER (FW110SDL0/FW110SCDL0)FIG.50 REAR SWINGING ARMFIG.51 CHAIN CASEFIG.52 REAR WHELL (FW110DL0/SDL0)FIG.53 REAR WHEEL (FW110SCDL0)

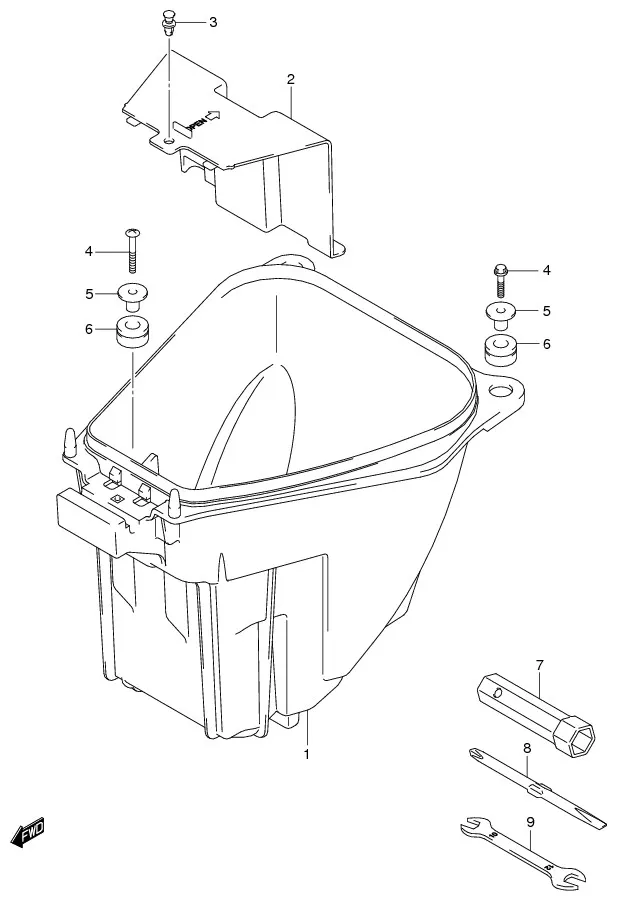

FIG.39 LUGGAGE BOX

FIG.39 LUGGAGE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 92211-45H20-000
SUB: 92211B45H10N000		 BOX, LUGGAGE 1 Rp103.500
2 92212-45H00-000
SUB: 92212B45H00N000		 LID 1 Rp22.500
3 92217-45H00-000
SUB: 92217B45H00N000		 CLIP 1 Rp10.500
4 02142-0630A-000
SUB: 02142B0630AN000		 SCREW, FRONT 2 Rp6.500
5 92215-20G00-000
SUB: 92215B20G00N000		 SPACER 4 Rp8.000
6 DISCONTINUE
SUB: 92216B45H00N000		 CUSHION 4 -
7 96512-09G00-000
SUB: 96512B09G00N000		 SPANNER, BOX (16) 1 Rp15.000
8 09814-00030-000
SUB: 09814B00030N000		 DRIVER 1 Rp7.000
9 09813-00135-000
SUB: 09813B00135N000		 SPANNER, OPEN (10X12) 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
