SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 LEG SHIELD (FW110DL0/SDL0)FIG.33 FRAME HEAD COVERFIG.34 FRONT FENDERFIG.35 HANDLE BARFIG.36 HANDLE COVERFIG.37 HANDLE LEVERFIG.38 REAR FENDERFIG.39 LUGGAGE BOXFIG.40 LABELFIG.41 SEATFIG.42 FRONT DAMPER (FW110DL0)FIG.43 FRONT DAMPER (FW110DL0/SCDL0)FIG.44 STEERING STEEMFIG.45 FRONT WHEEL (FW110DL0)FIG.46 FRONT WHEEL (FW110SDL0)FIG.47 FRONT WHEEL (FW110SCDL0)FIG.48 FRONT CALIPER (FW110SDL0/FW110SCDL0)FIG.49 FRONT MASTER CYLINDER (FW110SDL0/FW110SCDL0)FIG.50 REAR SWINGING ARMFIG.51 CHAIN CASEFIG.52 REAR WHELL (FW110DL0/SDL0)FIG.53 REAR WHEEL (FW110SCDL0)

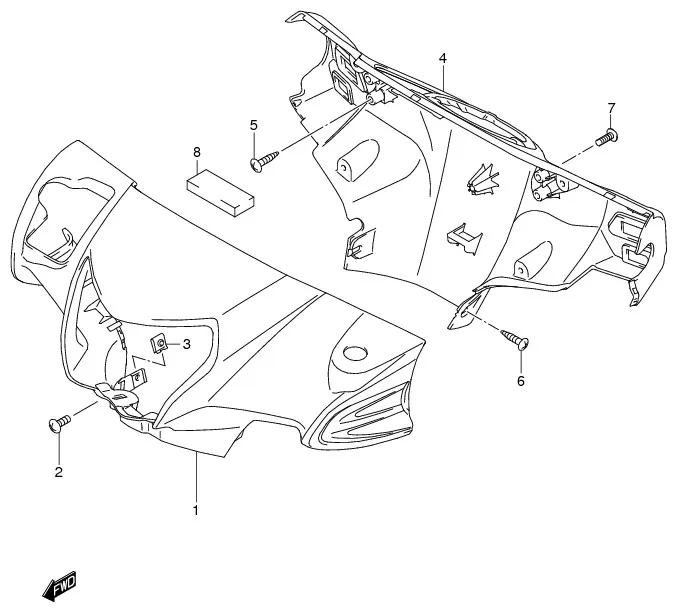

FIG.36 HANDLE COVER

FIG.36 HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
1-1 56311-45H00-YTB
SUB: 56311B45H00NYTB		 COVER,HANDLE FRONT SUMMER RED 1 Rp121.000 FW110DL0
1-2 56311-45H00-YUJ
SUB: 56311B45H00NYUJ		 COVER,HANDLE FRONT MACHO BRIGHT BLUE 1 Rp126.500 FW110DL0
1-3 56311-45H00-YVU
SUB: 56311B45H00NYVU		 COVER,HANDLE FRONT TITAN BLACK 1 Rp121.000 FW110DL0
1-4 56311-45H10-PZ5
SUB: 56311B45H10NPZ5		 COVER,HANDLE FRONT FRASH GREEN 1 Rp126.500 FW110SDL0/SCDL0
1-5 56311-45H10-YTB
SUB: 56311B45H10NYTB		 COVER,HANDLE FRONT SUMMER RED 1 Rp118.500 FW110SDL0/SCDL0
1-6 56311-45H10-YUH
SUB: 56311B45H10NYUH		 COVER,HANDLE FRONT BRILLIANT WHITE 1 Rp126.500 FW110SDL0/SCDL0
1-7 56311-45H10-YUJ
SUB: 56311B45H10NYUJ		 COVER,HANDLE FRONT MACHO BRIGHT BLUE 1 Rp121.000 FW110SDL0/SCDL0
1-8 56311-45H10-YVD
SUB: 56311B45H10NYVD		 COVER,HANDLE FRONT DARK GRAY MET 1 Rp123.500 FW110SDL0/SCDL0
1-9 56311-45H10-YVE
SUB: 56311B45H10NYVE		 COVER,HANDLE FRONT MARINE BLUE 1 Rp121.000 FW110SDL0/SCDL0
1-10 56311-45H10-YVU
SUB: 56311B45H10NYVU		 COVER,HANDLE FRONT TITAN BLACK 1 Rp118.500 FW110SDL0/SCDL0
2 02142-0512A-000
SUB: 02142B0512AN000		 SCREW 1 Rp3.500
3 09148-04019-000
SUB: 09148-04034-000		 NUT 4 Rp6.500
4 56321-45H00-000
SUB: 56321B45H00N000		 COVER, HANDLE REAR 1 Rp36.500
6 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 4 Rp4.500
7 56316-45H00-000
SUB: 56316B45H00N000		 SCREW, REAR 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
