SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 LEG SHIELD (FW110DL0/SDL0)FIG.33 FRAME HEAD COVERFIG.34 FRONT FENDERFIG.35 HANDLE BARFIG.36 HANDLE COVERFIG.37 HANDLE LEVERFIG.38 REAR FENDERFIG.39 LUGGAGE BOXFIG.40 LABELFIG.41 SEATFIG.42 FRONT DAMPER (FW110DL0)FIG.43 FRONT DAMPER (FW110DL0/SCDL0)FIG.44 STEERING STEEMFIG.45 FRONT WHEEL (FW110DL0)FIG.46 FRONT WHEEL (FW110SDL0)FIG.47 FRONT WHEEL (FW110SCDL0)FIG.48 FRONT CALIPER (FW110SDL0/FW110SCDL0)FIG.49 FRONT MASTER CYLINDER (FW110SDL0/FW110SCDL0)FIG.50 REAR SWINGING ARMFIG.51 CHAIN CASEFIG.52 REAR WHELL (FW110DL0/SDL0)FIG.53 REAR WHEEL (FW110SCDL0)

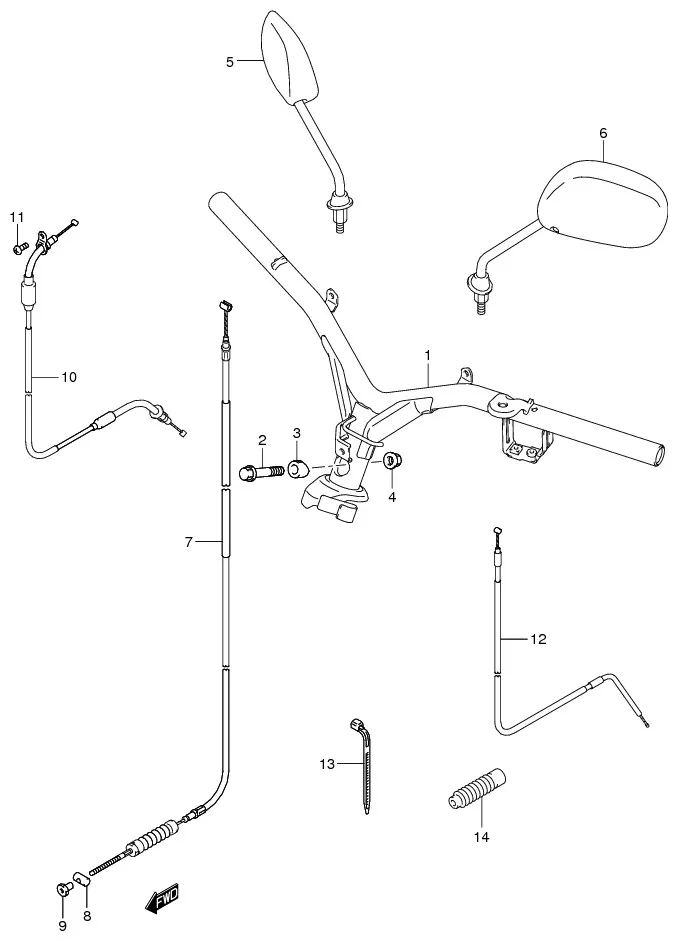

FIG.35 HANDLE BAR

FIG.35 HANDLE BAR
No No. Part Description Qty Price Per Pcs Remarks
1-1 56110-45H00-000
SUB: 56110B45H00N000		 HANDLEBAR 1 Rp153.500 FW110DL0
1-2 56110-45H10-000
SUB: 56110B45H10N000		 HANDLEBAR 1 Rp257.500 FW110SDL0/SCDL0
2 09103-10126-000
SUB: 09103B10126N000		 BOLT (10X48) 1 Rp28.500
3 51358-09G00-000
SUB: 51358B09G00N000		 STOPPER 1 Rp8.000
5-1 56500-45HB0-000
SUB: 56500B45HB0N000		 MIRROR, REAR VIEW RH 1 Rp93.000 FW110DL0
5-2 56500-45HA0-000
SUB: 56500B45HA0N000		 MIRROR, REAR VIEW RH 1 Rp90.000 FW110SDL0/SCDL0
6 56600-45HA0-000
SUB: 56600B45HA0N000		 MIRROR, REAR VIEW LH 1 Rp90.000
7 58110-45H10-000
SUB: 58110B45H10N000		 CABLE, FRONT BRAKE 1 Rp65.500 FW110DL0
8 DISCONTINUE
SUB: 09209-10001-000		 PIN 1 - FW110DL0
9 09150-05101-000 NUT 1 Rp18.000 FW110DL0
10 58300-45H10-000
SUB: 58300B45H10N000		 CABLE ASSY, THROTTLE 1 Rp65.000
11 02112-0512A-000
SUB: 02112B0512AN000		 SCREW, CASE 1 Rp2.500
12 58410-45H10-000
SUB: 58410B45H10N000		 CABLE, STARTER 1 Rp35.500
14 58333-35401-000 SEAL,DUST 1 Rp35.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
