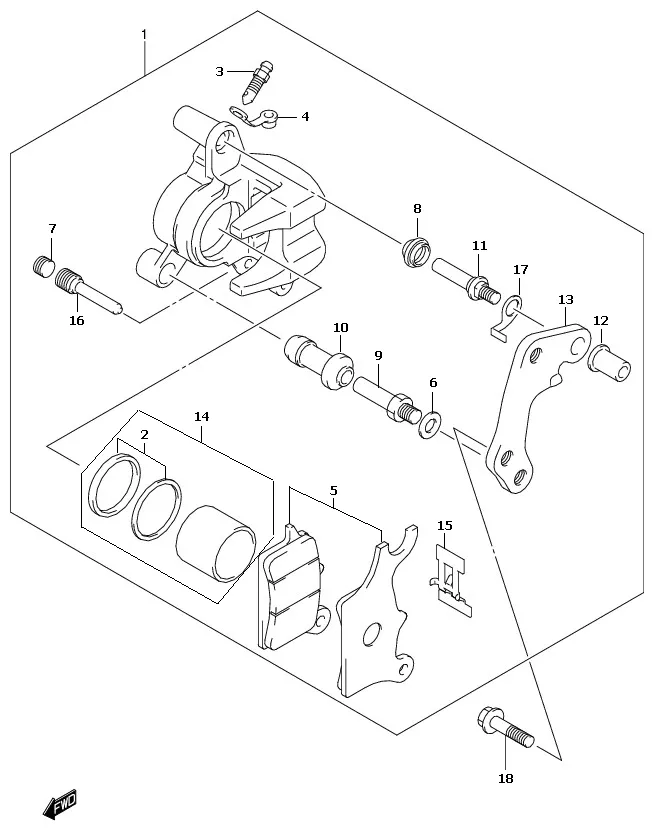

FIG.48 FRONT CALIPER (FW110SDL0/FW110SCDL0)

FIG.48 FRONT CALIPER (FW110SDL0/FW110SCDL0)
No No. Part Description Qty Price Per Pcs Remarks
1 59100-45H00-000
SUB: 59100B45H00N000		 CALIPER ASSY, FRONT 1 Rp897.500
2 59300-13820-000
SUB: 59300-13820L000		 .SEAL SET, PISTON 1 Rp37.000
3 59121-01A00-000
SUB: 59121B01A00N000		 .BLEEDER 1 Rp14.500
4 59122-01A00-000
SUB: 59122B01A00N000		 .CAP, BLEEDER 1 Rp3.000
5 59100-41HA0-000
SUB: 59100B41HA0N000		 .PAD SET 1 Rp119.500
6 59314-13A00-000
SUB: 59314B13A00N000		 .WASHER, WAVE 1 Rp3.000
7 59146-21E10-000
SUB: 59146B21E10N000		 .PLUG, PIN 1 Rp5.500
8 59303-14500-000
SUB: 59303B14500N000		 .BOOT 1 Rp12.500
9 59382-13A00-000
SUB: 59382B13A00N000		 .PIN 1 Rp13.500
10 59386-13A00-000
SUB: 59386B13A00N000		 .BOOT 1 Rp14.000
11 59387-41HA0-000
SUB: 59387B41HA0N000		 .PIN 1 Rp15.000
12 59388-41HA0-000
SUB: 59388B41HA0N000		 .NUT 1 Rp13.000
13 59351-41HA0-000
SUB: 59351B41HA0N000		 .BRACKET 1 Rp40.000
14 69100-41HA0-000
SUB: 69100B41HA0N000		 .PISTON SET 1 Rp122.000
15 59115-41HA0-000
SUB: 59115B41HA0N000		 .SPRING, PAD 1 Rp28.500
16 59345-41HA0-000
SUB: 59345B41HA0N000		 .PIN, HANGER 1 Rp29.500
17 59133-41HA0-000
SUB: 59133B41HA0N000		 .RETAINER BRACKET 1 Rp7.500
18 59199-07H00-000
SUB: 59199B07H00N000		 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
