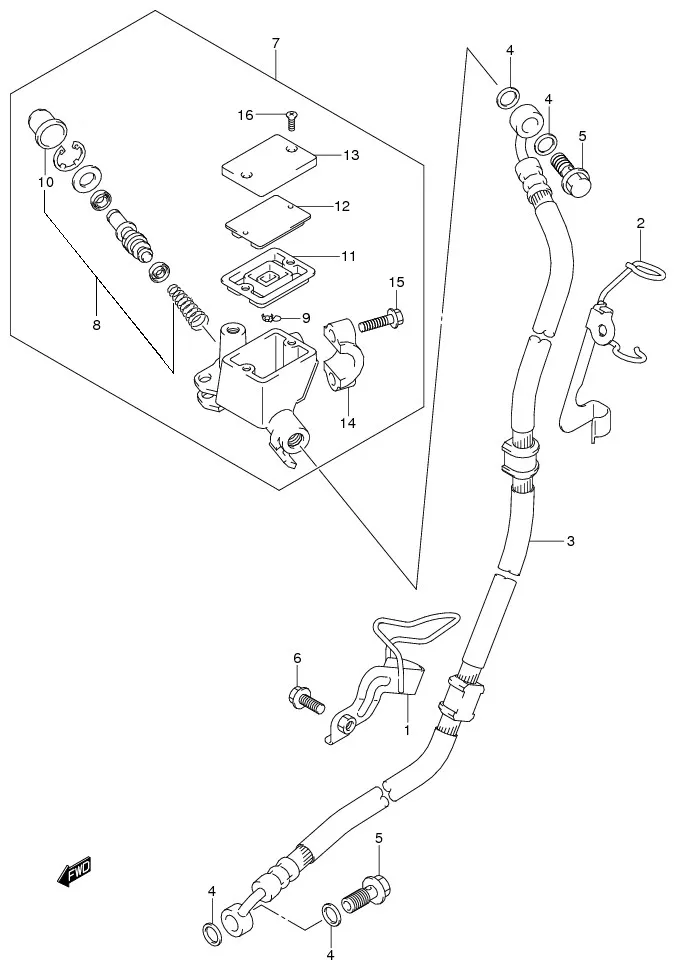

FIG.49 FRONT MASTER CYLINDER (FW110SDL0/FW110SCDL0)

FIG.49 FRONT MASTER CYLINDER (FW110SDL0/FW110SCDL0)
No No. Part Description Qty Price Per Pcs Remarks
1 59240-45H00-000
SUB: 59240B45H00N000		 GUIDE, FR BRAKE HOSE 1 Rp17.500
2 DISCONTINUE
SUB: 59260B45H00N000		 CLAMP, FR BRAKE HOSE LOWER 1 -
3 59480-45H20-000
SUB: 59480B45H20N000		 HOSE, FRONT BRAKE 1 Rp118.500
4 09168-10033-000
SUB: 09168B10033N000		 WASHER, BRAKE FLUID 4 Rp8.500
5 09360-10062-000
SUB: 09360B10062N000		 BOLT, BRAKE FLUID 2 Rp13.000
7 59600-45H00-000
SUB: 59600B45H00N000		 CYLINDER ASSY, FRONT MASTER 1 Rp918.500
8 59611-36500-000
SUB: 59611B36500N000		 .PISTON/CUP SET 1 Rp75.500
9 59664-32F00-000
SUB: 59664B32F00N000		 .PROTECTOR 1 Rp20.500
10 59666-44300-000
SUB: 59666B44300N000		 .BOOT 1 Rp16.000
11 59667-44B00-000
SUB: 59667B44B00N000		 .DIAPHRAGM 1 Rp13.000
12 59668-21D20-000
SUB: 59668B21D20N000		 .PLATE, DIAPHRAGM 1 Rp3.000
13 59669-21D20-000
SUB: 59669B21D20N000		 .CAP 1 Rp40.000
14 59671-27C00-000
SUB: 59671B27C00N000		 .HOLDER 1 Rp18.000
15 59675-02FA0-000
SUB: 59675B02FA0N000		 .BOLT 2 Rp9.000
16 69689-49300-000
SUB: 69689B49300N000		 .SCREW 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
