Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 17 STARTER MOTORFIG. 19 BATTERYFIG. 21 SPEEDOMETERFIG. 23 TURNSIGNAL LAMPFIG. 25 WIRING HARNESSFIG. 16 KICK STARTERFIG. 22 HEADLAMP FIG. 20 ELECTRICALFIG. 18 MAGNETOFIG. 24 TAIL LAMPFIG. 16 KICK STARTER

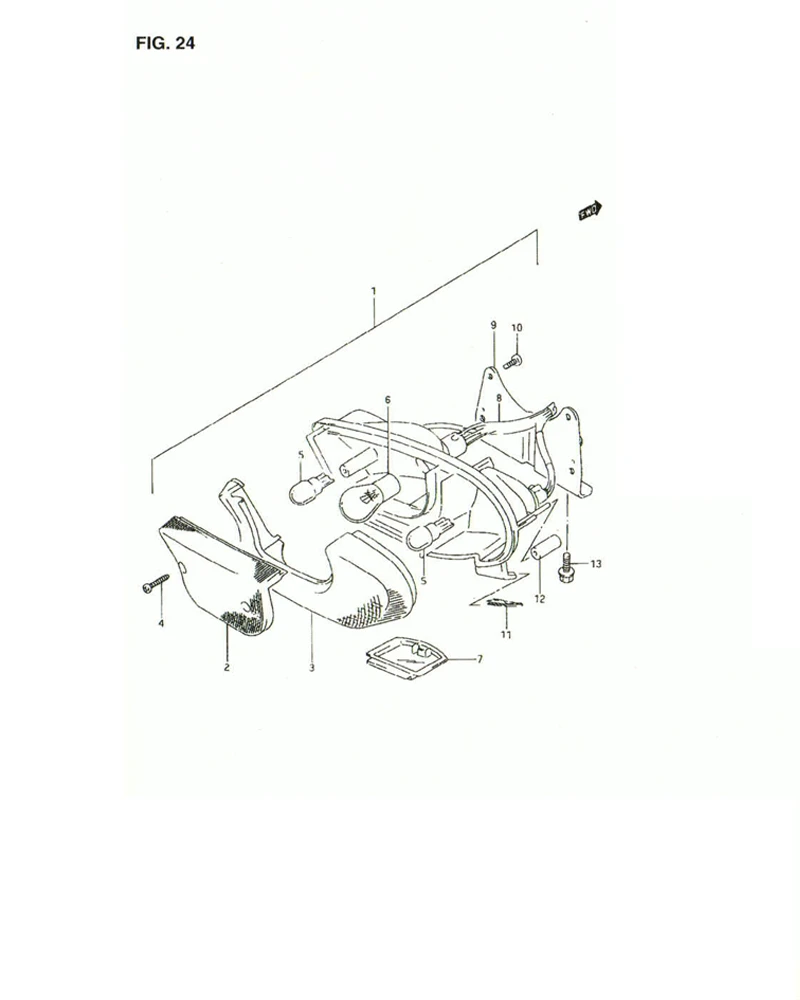

FIG. 24 TAIL LAMP

FIG. 24 TAIL LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 35710-31C30L000		 LAMP ASSY, tail 1 -
2 35712-31C30-000
SUB: 35712-31C30L000		 .LENS, tail 1 Rp13.000
3 35652-31C30L000 .LENS, turn 1 -
4 03511-04203L000 .SCREW, lens 2 -
5 DISCONTINUE
SUB: 09471-12114L000		 .BULB, turn (12V, 10W) 2 -
6 09471-12127-000
SUB: 09471-12127L000		 .BULB, stop (12V, 18/5W) 1 Rp12.500
7 DISCONTINUE
SUB: 35912-31C30L000		 .LENS, license 1 -
8 35718-31C20L000 .CORD ASSY 1 -
9 DISCONTINUE
SUB: 35730-31C20L000		 .BRACKET 1 -
10 03511-0516A-000
SUB: 03511-05163L000		 .SCREW 4 Rp5.500
11 09148-05004L000 .NUT 3 -
12 09352-45853L00B .PROTECTOR 2 -
13 01550-0616A-000
SUB: 01550-06163-000		 BOLT 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
