Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 17 STARTER MOTOR FIG. 19 BATTERY FIG. 21 SPEEDOMETER FIG. 23 TURNSIGNAL LAMP FIG. 25 WIRING HARNESS FIG. 16 KICK STARTER FIG. 22 HEADLAMP FIG. 20 ELECTRICAL FIG. 18 MAGNETO FIG. 24 TAIL LAMP FIG. 16 KICK STARTER

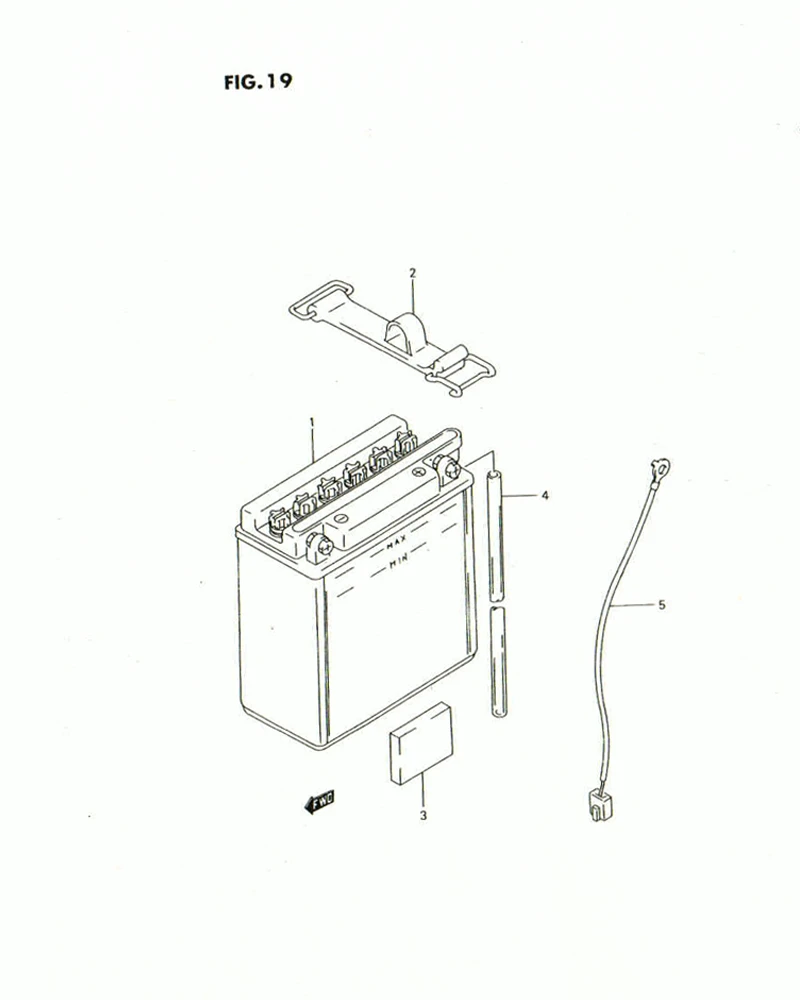

FIG. 19 BATTERY

FIG. 19 BATTERY

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 33610-35400L000	BATTERY ASSY (12V.5AH)	1	-
2	33651-31C01-000 SUB: 33651-31C01L000	BAND, battery	1	Rp12.500
3	33652-36100-000 SUB: 33652-36100L000	PROTECTOR, battery A	1	Rp3.500
4	33680-14A00L000	HOSE, battery EXH	1	-
5	DISCONTINUE SUB: 33860-30D10L000	WIRE, battery minus lead	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
