Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 17 STARTER MOTORFIG. 19 BATTERYFIG. 21 SPEEDOMETERFIG. 23 TURNSIGNAL LAMPFIG. 25 WIRING HARNESSFIG. 16 KICK STARTERFIG. 22 HEADLAMP FIG. 20 ELECTRICALFIG. 18 MAGNETOFIG. 24 TAIL LAMPFIG. 16 KICK STARTER

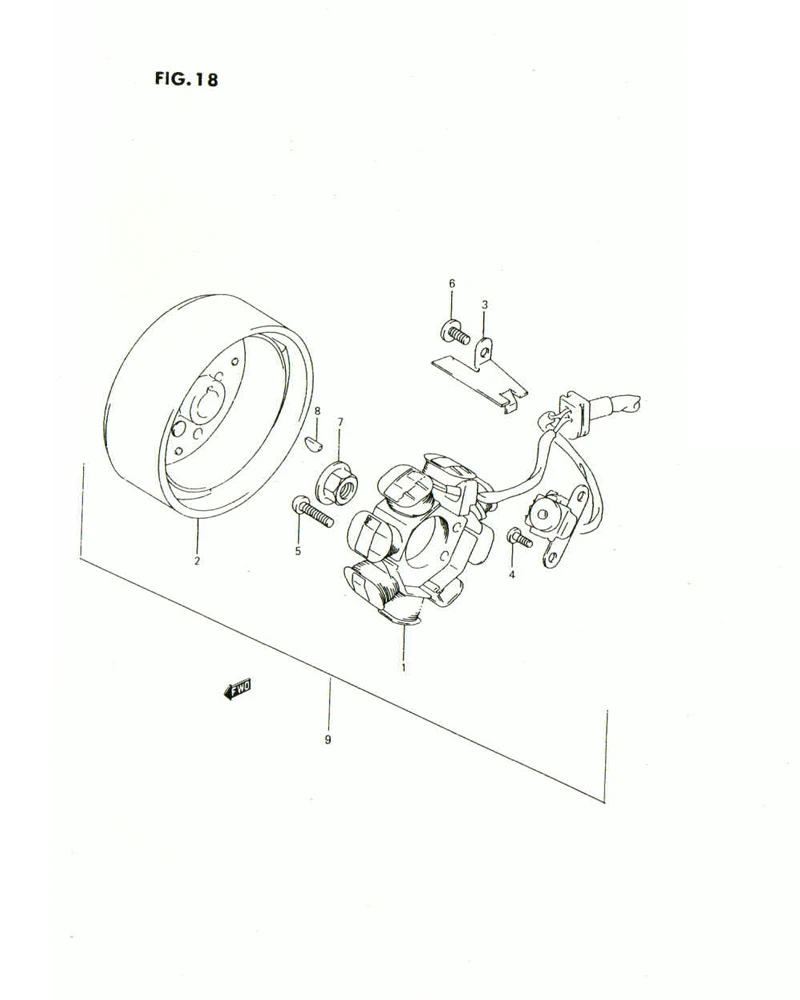

FIG. 18 MAGNETO

FIG. 18 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 32101-30D10-000
SUB: 32101-30D10L000		 STATOR ASSY 1 Rp369.500
2 DISCONTINUE
SUB: 32102-30D10L000		 ROTOR 1 -
3 DISCONTINUE
SUB: 32371-30D00L000		 CLAMP, MAGNETO LEAD 1 -
4 DISCONTINUE
SUB: 02112-05103-000		 SCREW, sensor 2 -
5 02112-0620A-000
SUB: 02112-06203-000		 SCREW, magneto stator 2 Rp4.000
6 02142-0610A-000
SUB: 02142-06103-000		 SCREW, magneto lead clamp 1 Rp3.500
7 08316-1012A-000
SUB: 08316-10123-000		 NUT, magneto rotor 1 Rp6.500
8 08341-31039-000 KEY, magneto rotor 1 Rp9.500
9 DISCONTINUE
SUB: 32100-30D10L000		 MAGNETO ASSY 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
