Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 17 STARTER MOTORFIG. 19 BATTERYFIG. 21 SPEEDOMETERFIG. 23 TURNSIGNAL LAMPFIG. 25 WIRING HARNESSFIG. 16 KICK STARTERFIG. 22 HEADLAMP FIG. 20 ELECTRICALFIG. 18 MAGNETOFIG. 24 TAIL LAMPFIG. 16 KICK STARTER

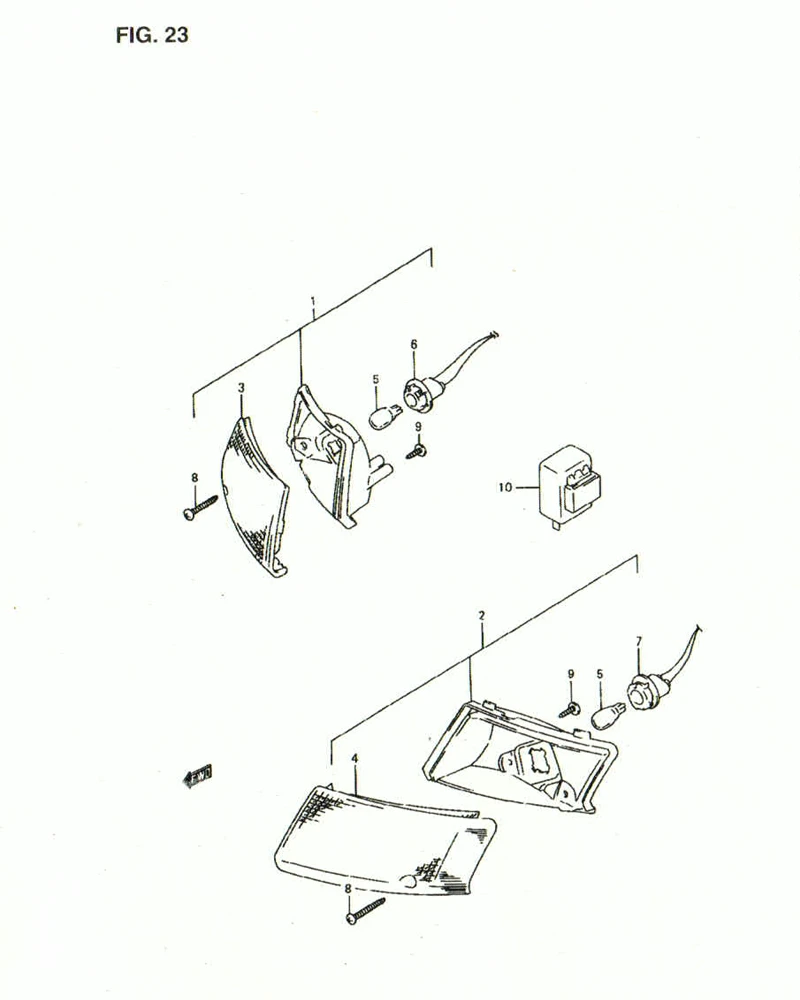

FIG. 23 TURNSIGNAL LAMP

FIG. 23 TURNSIGNAL LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 35601-30D10L000		 LAMP ASSY, front RH 1 -
2 DISCONTINUE
SUB: 35602-30D10L000		 LAMP ASSY, front LH 1 -
3 DISCONTINUE
SUB: 35612-31D00L000		 .LENS, RH 1 -
4 DISCONTINUE
SUB: 35632-31D00L000		 .LENS, LH 1 -
5 DISCONTINUE
SUB: 09471-12114L000		 .BULB (12V, 10W) 2 -
6 DISCONTINUE
SUB: 35618-31C20L000		 .SOCKET, RH 1 -
7 DISCONTINUE
SUB: 35638-31C20L000		 .SOCKET, LH 1 -
8 DISCONTINUE
SUB: 03511-04253-000		 SCREW, front turnsignal 2 -
9 03541-0412A-000
SUB: 03541-04123-000		 SCREW, front turnsignal 2 Rp3.500
10 38610-35491-000
SUB: 38610-35491L000		 RELAY ASSY, turnsignal 1 Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
