Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 17 STARTER MOTORFIG. 19 BATTERYFIG. 21 SPEEDOMETERFIG. 23 TURNSIGNAL LAMPFIG. 25 WIRING HARNESSFIG. 16 KICK STARTERFIG. 22 HEADLAMP FIG. 20 ELECTRICALFIG. 18 MAGNETOFIG. 24 TAIL LAMPFIG. 16 KICK STARTER

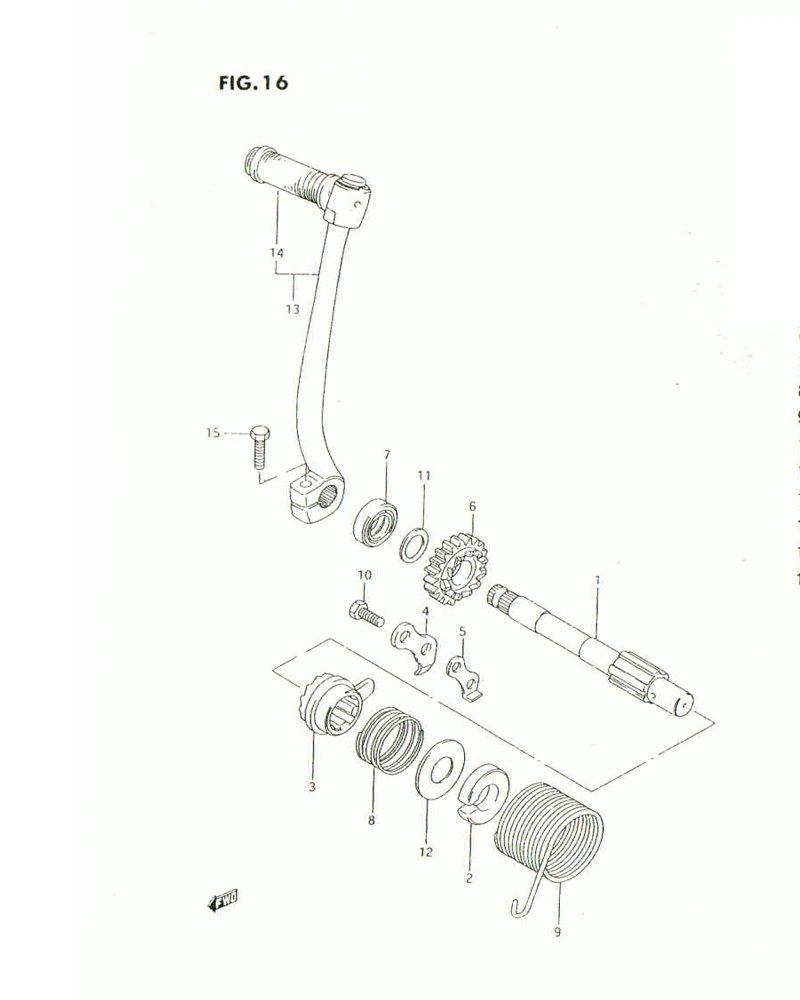

FIG. 16 KICK STARTER

FIG. 16 KICK STARTER
No No. Part Description Qty Price Per Pcs Remarks
1 26211-09410-000 SHAFT, kick starter 1 Rp613.500
2 DISCONTINUE
SUB: 26221-30A00-000		 GUIDE, kick starter SPR 1 -
3 26231-09430-000
SUB: 26231-09401-000		 STARTER, kick 1 Rp61.500
4 26232-09410-000
SUB: 26232-09401-000		 GUIDE, kick starter 1 Rp6.500
5 26233-09400-000 STOPPER, kick starter 1 Rp3.000
6 DISCONTINUE
SUB: 26241-09410-000		 GEAR, kick starter crive 1 -
7 09285-14001-000 SEAL, kick starter 1 Rp8.000
8 09440-3007 SPRING, kick starter 1 -
9 09448-38004-000 SPRONG, kick shaft return 1 Rp21.000
10 DISCONTINUE
SUB: 01500-06123-000		 BOLT, kick starter stopper 2 -
11 09181-14167-000
SUB: 08211-14221-000		 WASHER, kick drive gear 1 Rp13.000
12 0821-14321 PLATE, kick starter SPR 1 -
13 26300-30A21-000
SUB: 26300-30A21L000		 LEVER ASSY, kick starter 1 Rp44.000
14 26352-09D10-000 .RUBBER, kick pedal 1 -
15 01500-06207-000 BOLT, kick pedal 1 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
