Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 17 STARTER MOTOR FIG. 19 BATTERY FIG. 21 SPEEDOMETER FIG. 23 TURNSIGNAL LAMP FIG. 25 WIRING HARNESS FIG. 16 KICK STARTER FIG. 22 HEADLAMP FIG. 20 ELECTRICAL FIG. 18 MAGNETO FIG. 24 TAIL LAMP FIG. 16 KICK STARTER

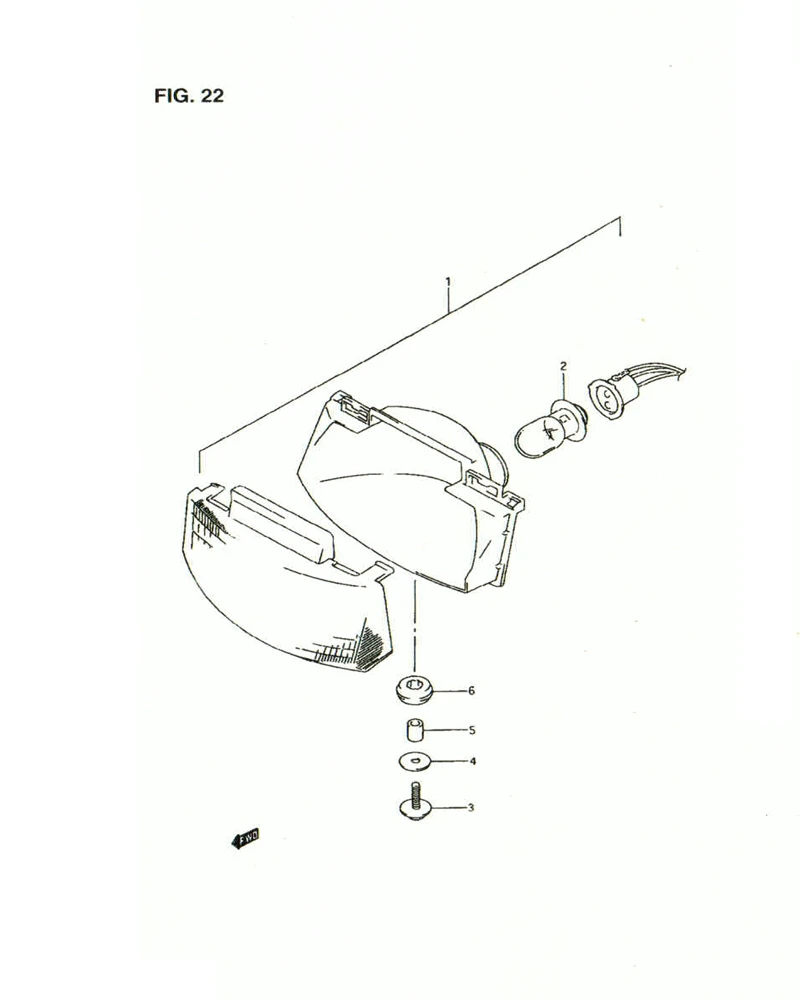

FIG. 22 HEADLAMP

FIG. 22 HEADLAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35100-31C31-000 SUB: 35100-31C30L000	HEADLAMP ASSY	1	Rp102.500
2	09471-12168L000	.BULB (12V, 30/30W)	1	Rp52.500
3	09136-05055-000	SCREW, headlamp	1	Rp20.500
4	09160-05501-000 SUB: 09160-05011-000	WASHER, headlamp	1	Rp12.000
5	09180-05054-000	SPACER (5.5X9. 5X11. 50)	1	Rp13.000
6	09320-09010-000	CUSHION, headlamp	1	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
