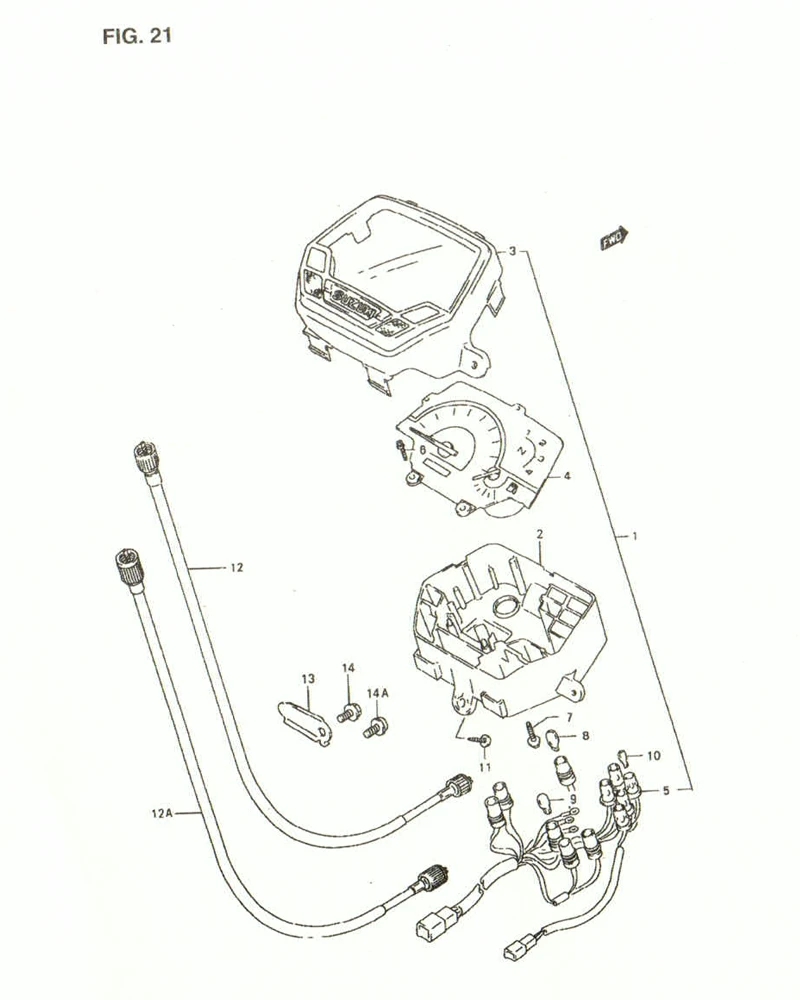

FIG. 21 SPEEDOMETER

FIG. 21 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 34100-30D10L000		 SPEEDOMETER ASSY 1 -
2 DISCONTINUE
SUB: 34111-31C10L000		 .CASE, speedometer lower 1 -
3 DISCONTINUE
SUB: 34112-30D10L000		 .CASE, speedometer upper 1 -
4 DISCONTINUE
SUB: 34120-30D10L000		 .BODY, speedometer 1 -
5 DISCONTINUE
SUB: 34170-30D10L000		 .SCOKET, speedometer 1 -
6 34383-09400L000 .SCREW, fuel meter 3 -
7 DISCONTINUE
SUB: 02112-74103L000		 .SCREW, seepdometer body 2 -
8 09471-12077-000
SUB: 09471-12077L000		 .BULB (12V,1.7W) 3 Rp6.000
9 09471-12028-000
SUB: 09471-12028L000		 .BULB (12V,3.4W) 2 Rp8.000
10 09471-12108-000
SUB: 09471-12108L000		 .BULB (12V,1.7W) 5 Rp9.500
11 03541-0416A-000
SUB: 03541-04163-000		 SCREW, speedometer 3 Rp3.500
12 DISCONTINUE
SUB: 34910-31C10L000		 CABLE ASSY, speedometer 1 -
12A 34910-31C20-000
SUB: 34910-31C20L000		 CABLE ASSY, speedometer 1 Rp54.000
13 DISCONTINUE
SUB: 34938-21D20L000		 GUIDE, seedometer cable 1 -
14 DISCONTINUE
SUB: 01550-06123-000		 BOLD, guide 1 -
14A 02112-16123-000 SCREW, guide 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
