Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 17 STARTER MOTORFIG. 19 BATTERYFIG. 21 SPEEDOMETERFIG. 23 TURNSIGNAL LAMPFIG. 25 WIRING HARNESSFIG. 16 KICK STARTERFIG. 22 HEADLAMP FIG. 20 ELECTRICALFIG. 18 MAGNETOFIG. 24 TAIL LAMPFIG. 16 KICK STARTER

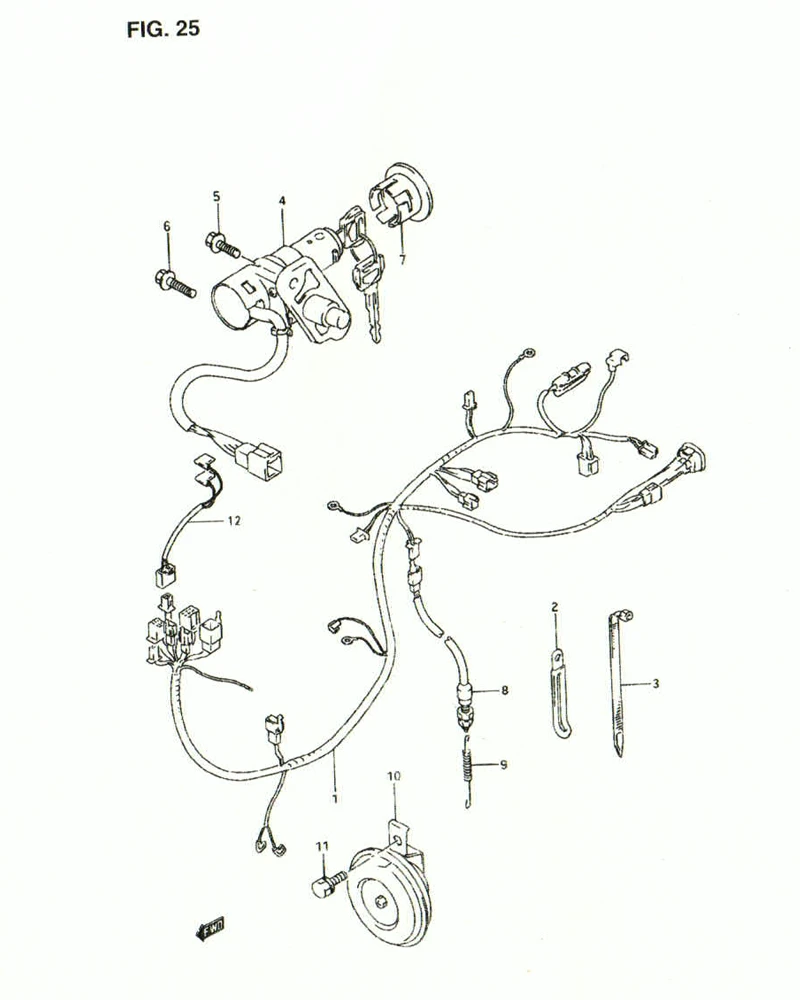

FIG. 25 WIRING HARNESS

FIG. 25 WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 36610-30D30L000		 HARNESS, wiring 1 -
2 09404-06429-000 CLAMP (L:60) 1 Rp15.000
3-1 36990-25G00-000
SUB: 09407-14403-000		 CLAMP (L:125) 1 Rp13.000
3-2 09407-19401-000
SUB: 09407-25401-000		 CLAMP (L:235) 4 Rp31.500
4-1 37100-30D10-000 LOCK ASSY, steering 1 Rp153.500
4-2 37100-30D10-000
SUB: 37100-30D10L000		 LOCK ASSY, steering 1 Rp153.500
5 01550-0616A-000
SUB: 01550-06163-000		 BOLT 1 Rp3.500
6 01550-0640A-000
SUB: 01550-06403-000		 BOLT 1 Rp5.500
7 37155-31C00-000 CAP, steering lock 1 Rp13.500
8 37740-35390-000
SUB: 37740-35390L000		 SWITCH ASSY, stop lamp 1 Rp17.000
9-1 09443-06083-000 SPRING 1 Rp4.000
9-2 09443-06083-000
SUB: 09443-06083L000		 SPRING 1 Rp4.000
10 DISCONTINUE
SUB: 38500-31C10L000		 HORN ASSY 1 -
11 01570-0812A-000
SUB: 01570-08123-000		 BOLT 1 Rp18.500
12-1 36852-30D00-000 WIRE, disk brake lead 1 -
12-2 35852-30D00-L WIRE, disk brake lead 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
