Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 17 STARTER MOTOR FIG. 19 BATTERY FIG. 21 SPEEDOMETER FIG. 23 TURNSIGNAL LAMP FIG. 25 WIRING HARNESS FIG. 16 KICK STARTER FIG. 22 HEADLAMP FIG. 20 ELECTRICAL FIG. 18 MAGNETO FIG. 24 TAIL LAMP FIG. 16 KICK STARTER

FIG. 17 STARTER MOTOR

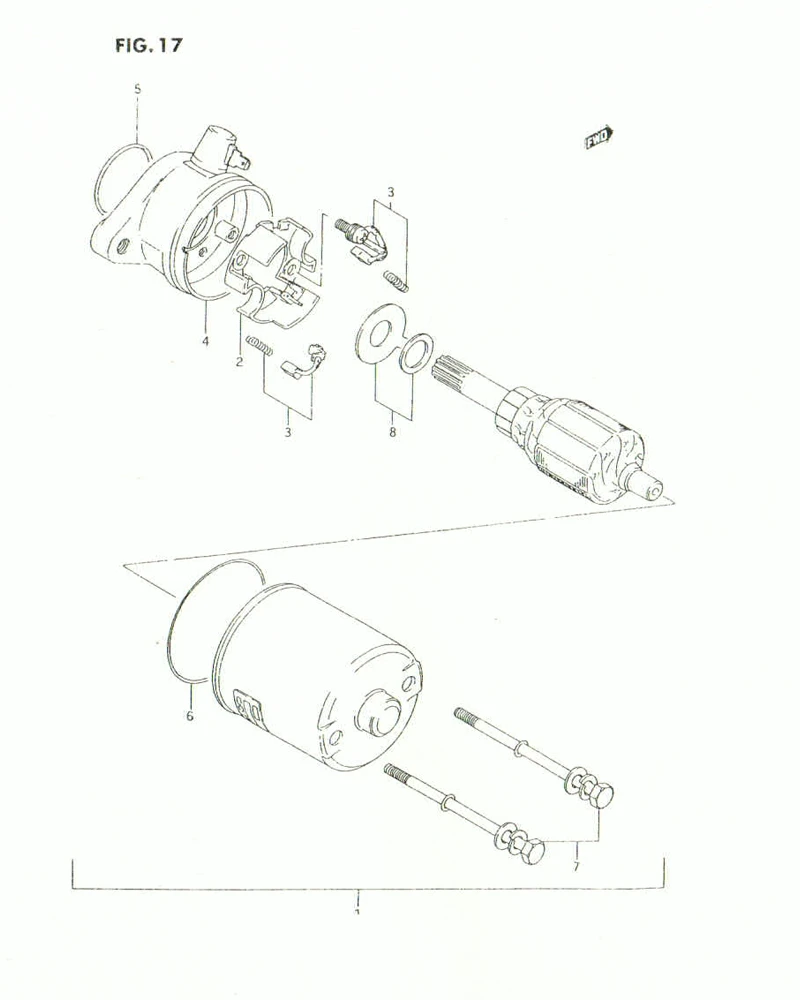

FIG. 17 STARTER MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	3110-30D00	MOTOR ASSY, starting	1	-
2	31130-35400-000	.HOLDER SET, brush	1	Rp64.000
3	31131-35400-000	.BRUSH SET	1	Rp109.000
4	DISCONTINUE SUB: 31151-30D00-000	.HOUSING SET	1	-
5	09280-25004-000 SUB: 31156-35400-000	.O RING	1	Rp13.000
6	DISCONTINUE SUB: 31158-35400-000	.O RING	1	-
7	DISCONTINUE SUB: 31280-31C00-000	.BOLT SET	1	-
8	31170-43400-000	.SHIM SET	1	Rp26.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
