Shogun FD 110 CDT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 17 STARTER MOTORFIG. 19 BATTERYFIG. 21 SPEEDOMETERFIG. 23 TURNSIGNAL LAMPFIG. 25 WIRING HARNESSFIG. 16 KICK STARTERFIG. 22 HEADLAMP FIG. 20 ELECTRICALFIG. 18 MAGNETOFIG. 24 TAIL LAMPFIG. 16 KICK STARTER

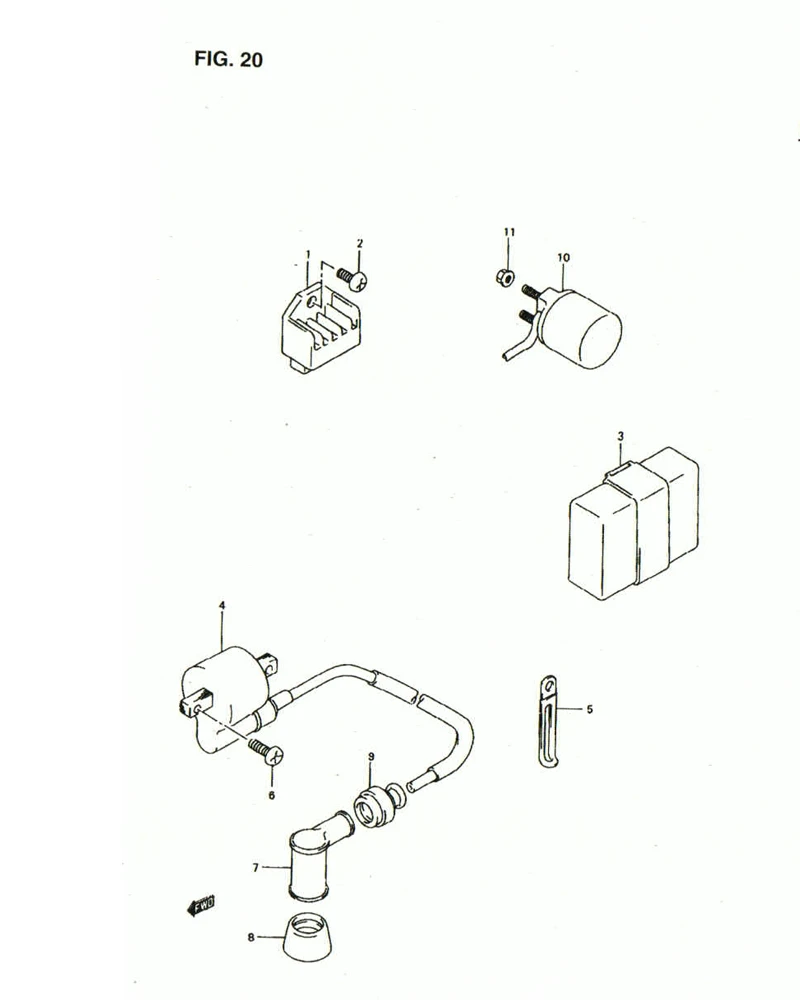

FIG. 20 ELECTRICAL

FIG. 20 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 32800-43E00L000		 RECTIFIER ASY 1 -
2 02112-0612A-000
SUB: 02112-06123-000		 SCREW 1 Rp3.500
3-1 DISCONTINUE
SUB: 32900-30D10-000		 CDI UNIT 1 -
3-2 DISCONTINUE
SUB: 32900-30D10L000		 CDI UNIT 1 -
4-1 33410-30D10-000 COIL ASSY, ignition 1 -
4-2 33410-31D10-000
SUB: 33410-30D10L000		 COIL ASSY, ignition 1 Rp72.500
5 09404-06429-000 CLAMP, high tension cord 1 Rp15.000
6 02112-0616A-000
SUB: 02112-06163-000		 SCREW, high tension cord 2 Rp3.500
7 33510-22010AS01
SUB: 33510-22010L000		 CAP, spark plug 1 Rp39.500
8 33541-24510L000 SEAL, spark plug 1 -
9 DISCONTINUE
SUB: 33542-38B00L000		 SEAL, high tension cord 1 -
10 31800-31C00-000
SUB: 31800-31C00L000		 RELAY ASSY, starting motor 1 Rp77.000
11 08361-3506A-000
SUB: 08361-35068-000		 NUT, stg mot 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
