Preview Engine Transmission Electrical Suspension Body

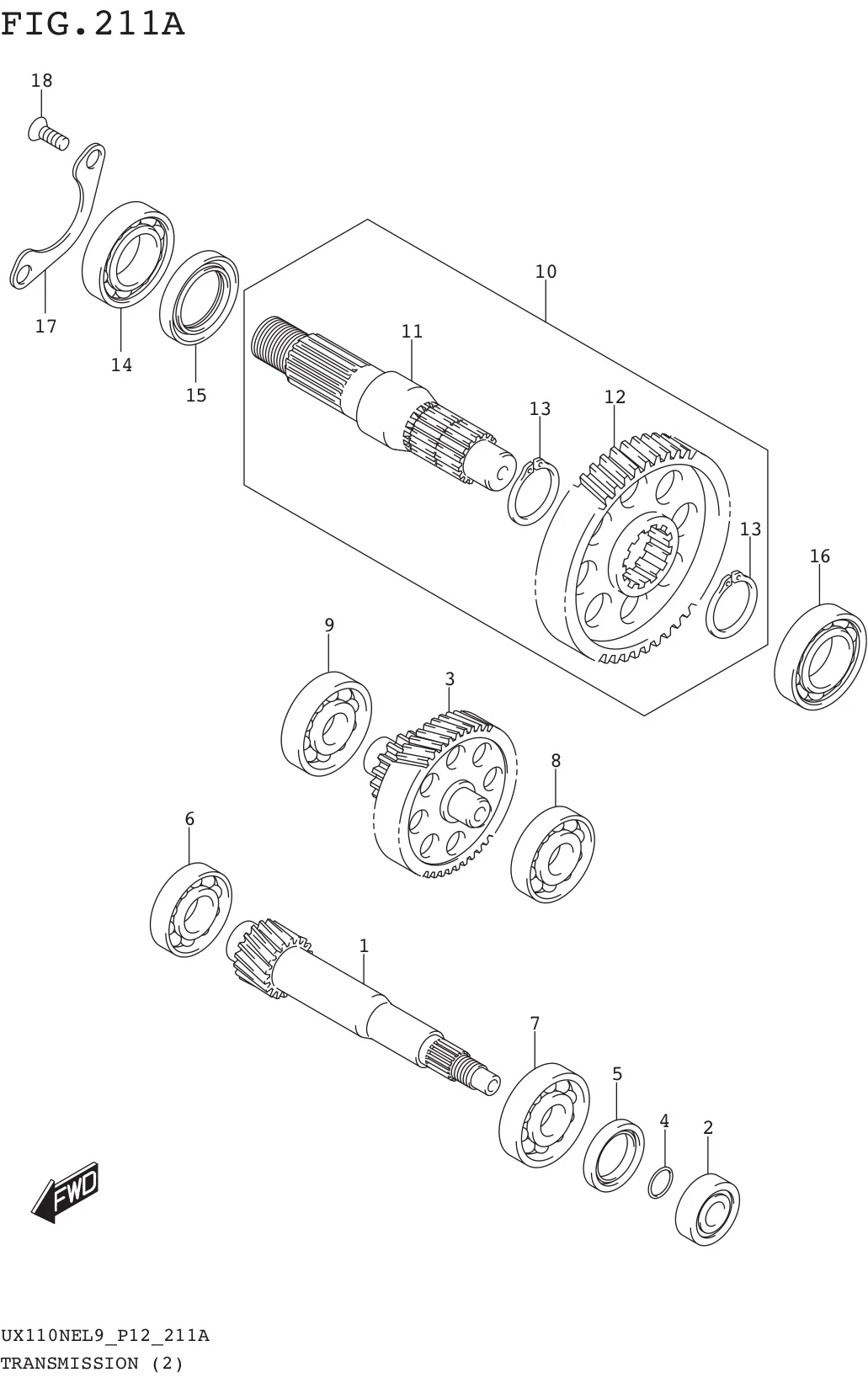

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24131-40J01-000	SHAFT, DRIVE (NT:16)	1	Rp130.000
2	24132-09J00-000	BEARING, DRIVE SHAFT LH	1	Rp22.500
3	24150-40J00-000	SHAFT, IDLE (NT:13/44)	1	Rp164.500
4	09280-08L01-000	O RING (D:1.9,ID:7.8)	1	Rp4.000
5	09283-20070-000	SEAL (20X28X5)	1	Rp8.000
6	08110-60020-000	BEARING	1	Rp43.000	RH
7	08110-60040-000	BEARING	1	Rp38.000	MIDDLE
8	08113-62010-000 SUB: 08113B62010N000	BEARING	1	Rp32.500	LH
9	08113-62020-000 SUB: 08113B62020N000	BEARING	1	Rp30.500	RH
10	24140-40J00-000	SHAFT ASSY, REAR AXLE	1	Rp233.500
11	24141-09J00-000	.SHAFT, REAR AXLE	1	Rp118.000
12	24371-40J00-000	.GEAR, FINAL DRIVEN (NT:47)	1	Rp117.000
13	08331-31249-000	.CIRCLIP	2	Rp8.500
14-1	09262-22036-000	BEARING (22X50X14)	1	Rp88.500	RH
14-2	09262-22041-000	BEARING (22X50X14)	1	Rp97.000	RH
15	09283-27L02-000	SEAL (27X40X6)	1	Rp10.500
16	08110-62030-000	BEARING	1	Rp33.500	LH
17	24751-09J00-000	RETAINER, AXLE SHAFT BEARING	1	Rp13.500
18	02122-0616A-000	SCREW	2	Rp3.500
