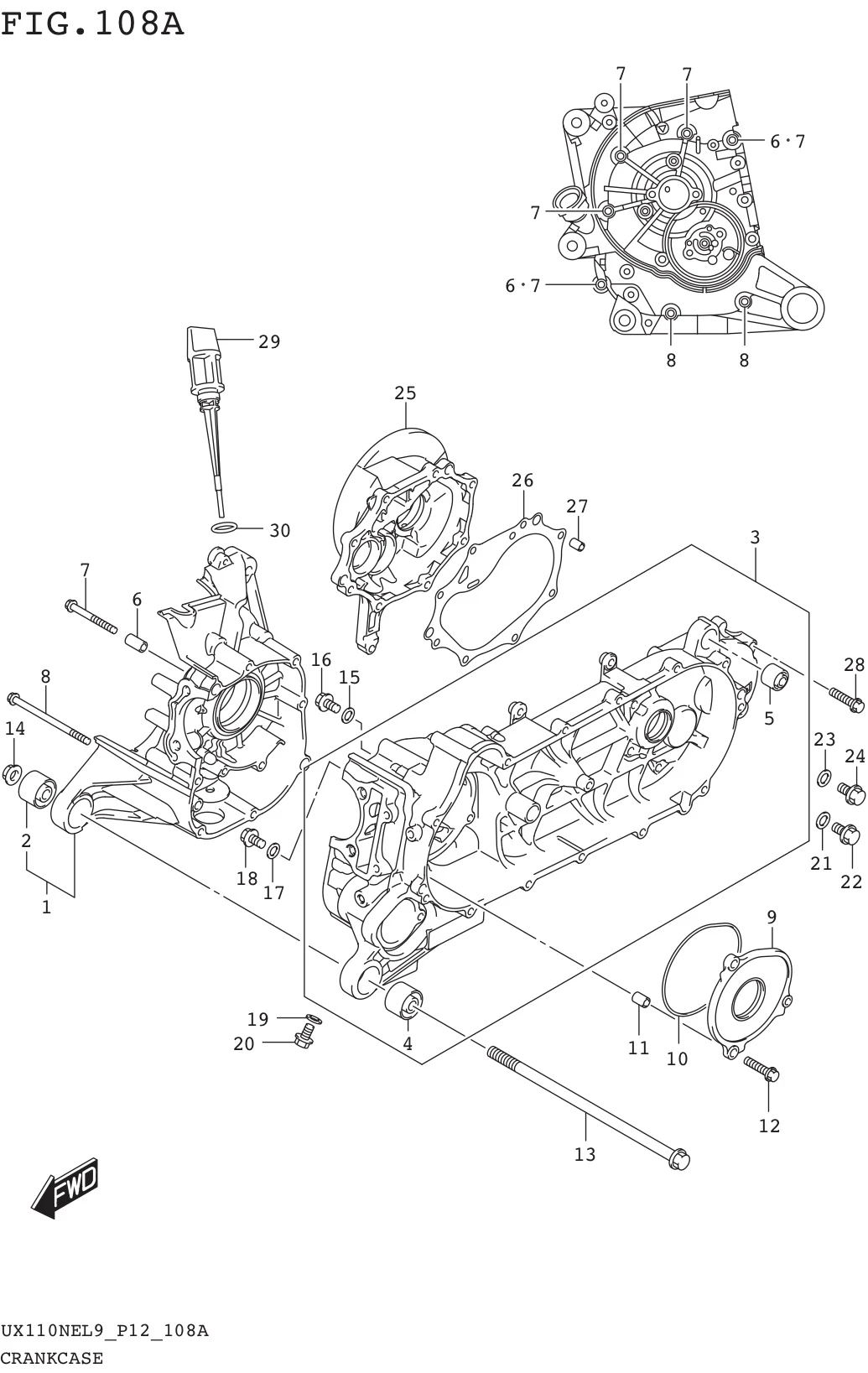

FIG. 108A CRANKCASE

FIG. 108A CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11310-09831-000
SUB: 11310-09830-000		 CRANKCASE RH 1 Rp538.000
2 11315-09J01-000
SUB: 11315-09J00-000		 .BUSH, ENGINE MTG 1 Rp35.000
3 11320-09831-000
SUB: 11320-09830-000		 CRANKCASE LH 1 Rp1.155.000
4 11315-09J01-000
SUB: 11315-09J00-000		 .BUSH, ENGINE MTG 1 Rp35.000
5 11316-09J00-000 .BUSH, REAR SHOCK ABS 1 Rp17.000
6 09206-10014-000 PIN (6.4X10X20) 2 Rp3.000
7 01547-0655A-000 BOLT 5 Rp7.500
8 01547-0695A-000 BOLT 2 Rp7.500
9 11323-09J00-000 CAP, CRANKCASE LH 1 Rp126.500
10 11324-09J00-000 O RING, CRANKCASE LH CAP 1 Rp5.500
11 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
12 01547-0625A-000 BOLT 3 Rp6.500
13 11611-39J00-000 BOLT, ENGINE MOUNTING 1 Rp35.500
14 08316-1010A-000 NUT 1 Rp3.500
15 09168-08008-000
SUB: 09168B08008N000		 GASKET (8.2X14X1) 2 Rp3.000
16 01550-0812A-000 BOLT 2 Rp3.500
17 09168-08008-000
SUB: 09168B08008N000		 GASKET (8.2X14X1) 1 Rp3.000
18 01550-0812A-000 BOLT 1 Rp3.500
19 09168-08008-000
SUB: 09168B08008N000		 GASKET (8.2X14X1) 1 Rp3.000
20 01550-0812A-000 BOLT 1 Rp3.500
21 09168-08008-000
SUB: 09168B08008N000		 GASKET (8.2X14X1) 1 Rp3.000
22 01550-0812A-000 BOLT 1 Rp3.500 OIL DRAIN
23 09168-08008-000
SUB: 09168B08008N000		 GASKET (8.2X14X1) 1 Rp3.000
24 01550-0812A-000 BOLT 1 Rp3.500
25 11430-09820-000 COVER SET, GEAR BOX 1 Rp352.500
26 11484-09J00-000 GASKET, GEAR BOX COVER 1 Rp8.500
27 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
28 01547-0630A-000 BOLT 8 Rp6.500
29 11971-09J00-000 GAUGE, OIL LEVEL 1 Rp23.000
30 09280-17003-000 O RING (D:3.1,ID:16.8) 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
