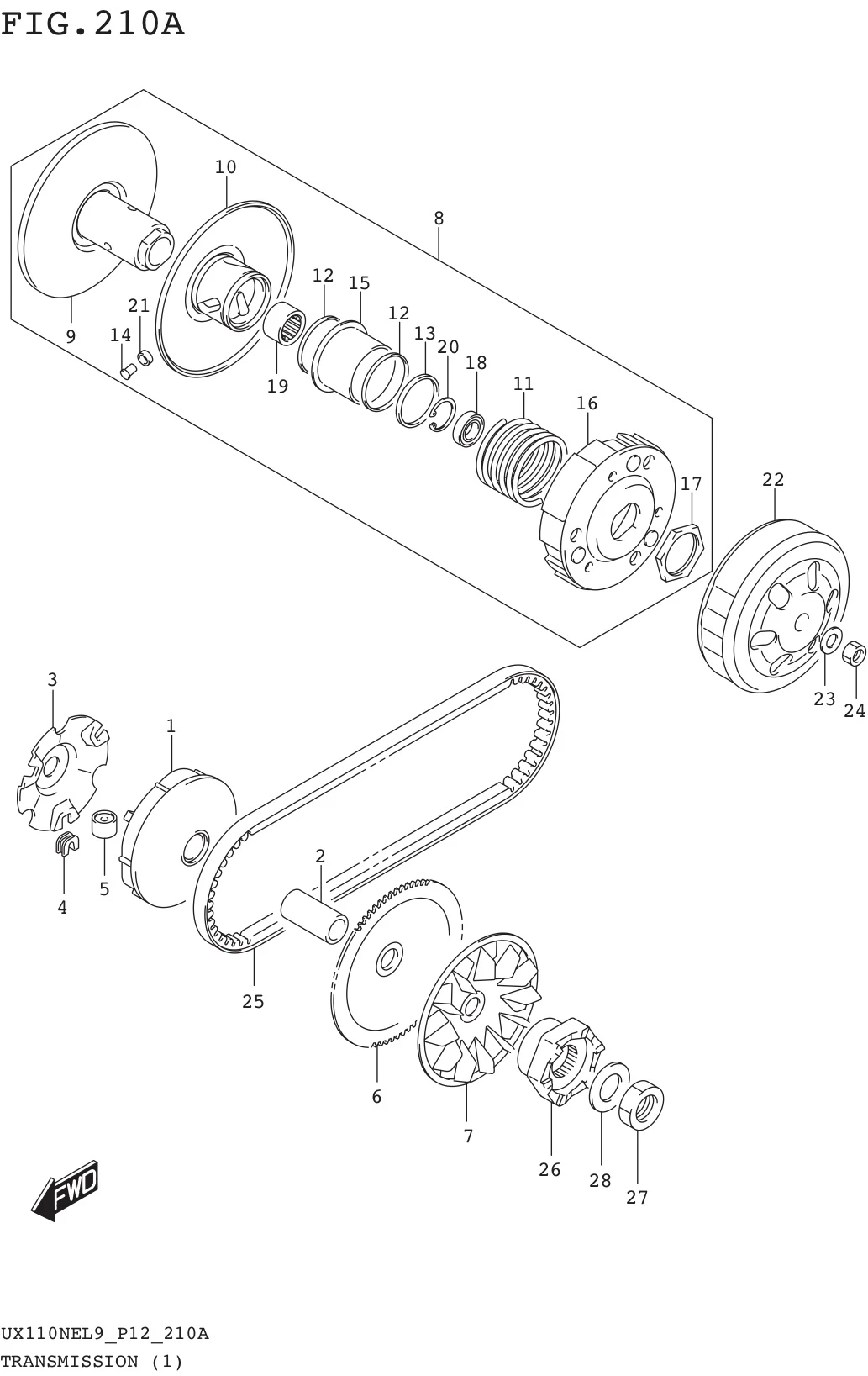

FIG. 210A TRANSMISSION (1

FIG. 210A TRANSMISSION (1
No No. Part Description Qty Price Per Pcs Remarks
1 21120-40J01-000 FACE, MOVABLE DRIVE 1 Rp130.000
2 21125-39J00-000 SPACER, MOVABLE DRIVE 1 Rp43.500
3 21431-40J00-000 PLATE, MOVABLE DRIVE 1 Rp33.500
4 21481-40J10-000 DAMPER, MOVABLE DRIVE PLATE 3 Rp8.000
5 21650-32G11-000 ROLLER, MOVABLE DRIVE 6 Rp13.500
6 21111-39J00-000 FACE, FIXED DRIVE (NT:70) 1 Rp94.000
7 21113-39J00-000 FAN, FIXED DRIVE 1 Rp24.000
8 21200-40J20-000
SUB: 21200-40J00-000		 FACE ASSY, DRIVEN 1 Rp756.000
9 21210-39J10-000 .FACE, FIXED DRIVEN 1 Rp118.000
10 21240-39J10-000 .FACE, MOVABLE DRIVEN 1 Rp92.500
11 21243-39J00-000 .SPRING, MOVABLE DRIVEN 1 Rp25.500
12 21245-33G00-000 .O RING, MOVABLE DRIVEN 2 Rp12.500
13 21247-39J00-000 .OIL SEAL 2 Rp21.000
14 21248-33G00-001
SUB: 21248B33G00N001		 .PIN, MOVABLE DRIVEN 3 Rp12.500
15 21471-09J00-000 .SHEET, MOVABLE DRIVEN 1 Rp14.000
16 21501-40J00-000 .CLUTCH ASSY, SHOE 1 Rp395.000
17 21518-40J00-000 .NUT, SHOE CLUTCH 1 Rp10.500
18 09262-15049-000 .BEARING (15X24X5) 1 Rp38.000 LH
19 09263-20112-000 .BEARING (20X26X14) 1 Rp60.000 RH
20 09381-24005-000 .CIRCLIP 1 Rp8.000
21 21249-33G00-000
SUB: 21249B33G00N000		 .SPACER, MOVABLE DRIVEN PIN 3 Rp4.500
22 21220-40J01-000 HOUSING, CLUTCH 1 Rp103.500
23 09164-12020-000 WASHER 1 Rp9.500
24 09140-12039-000
SUB: 09140B12039N000		 NUT 1 Rp6.500
25 27601-09J50-000 V-BELT, DRIVE 1 Rp113.500
26 26231-39J00-000 STARTER, KICK, RH 1 Rp42.500 RH
27 26282-40J00-000 NUT 1 Rp8.500
28 09164-12020-000 WASHER 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
