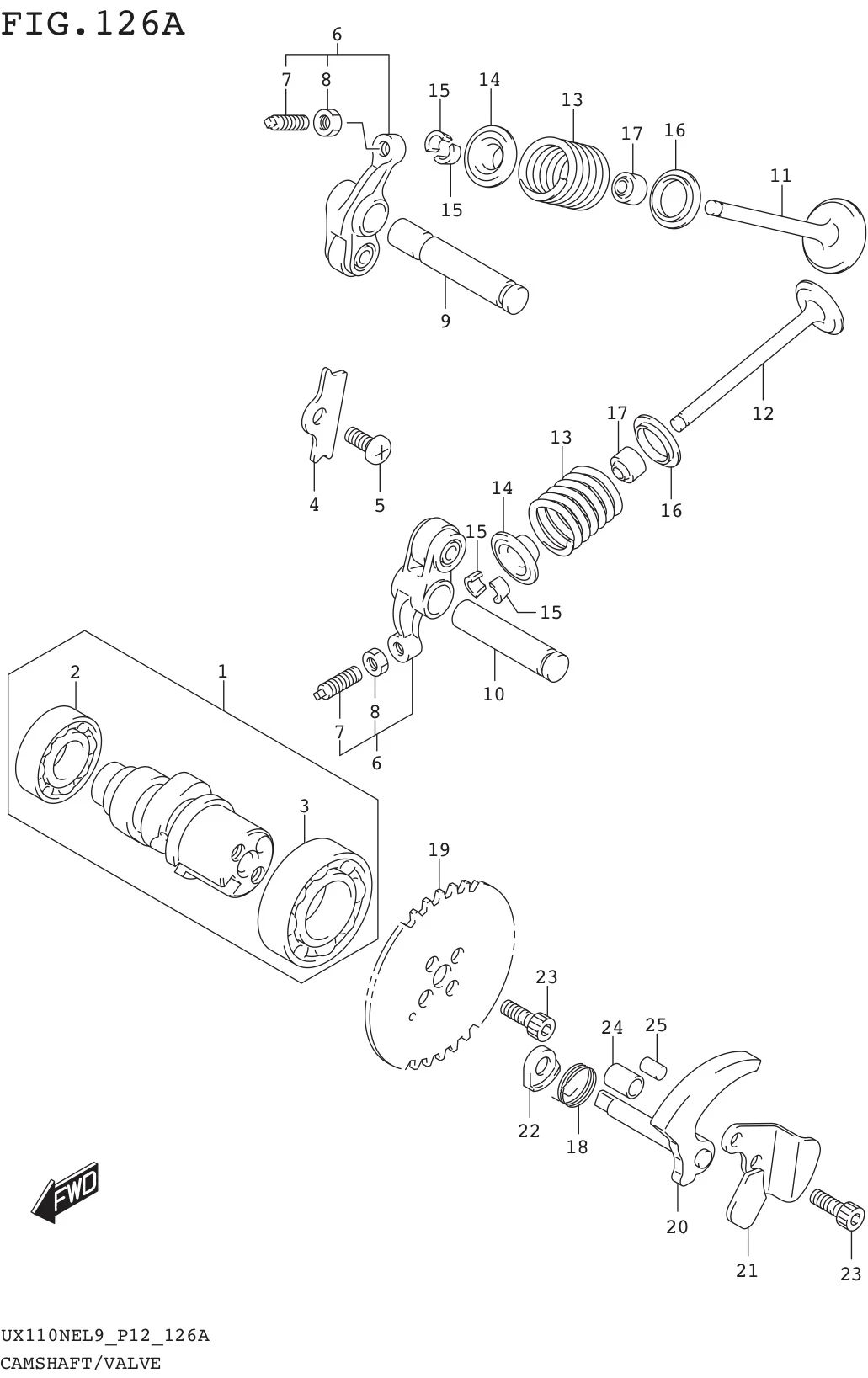

FIG. 126A CAMSHAFT/VALVE

FIG. 126A CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-40J00-000 CAMSHAFT 1 Rp259.500
2 08113-60020-000 .BEARING 1 Rp14.000 RH
3 08110-69050-000
SUB: 08110B69050N000		 .BEARING 1 Rp53.000 LH
4 12862-09J10-000 RETAINER, CAMSHAFT 1 Rp5.000
5 02112-0612A-000 SCREW 1 Rp3.500
6-1 12840-09J20-000 ARM ASSY, VALVE ROCKER 2 Rp54.000
6-2 12840-09J30-000 ARM ASSY, VALVE ROCKER 2 Rp141.500
7-1 12842-09J20-000
SUB: 12842B09J00N000		 .SCREW, TAPPET ADJUSTING 2 Rp4.500 FOR 12840-09J30
7-2 12842-09J20-000 .SCREW, TAPPET ADJUSTING 2 Rp4.500 FOR 12840-09J20
8-1 12843-27A00-000 .NUT, TAPPET ADJUSTING 2 Rp19.000 FOR 12840-09J30
8-2 12843-27A80-000 .NUT, TAPPET ADJUSTING 2 Rp3.000 FOR 12840-09J20
9 12861-40J00-000 SHAFT, VALVE ROCKER ARM INTAKE 1 Rp12.500
10 12871-40J00-000 SHAFT, VALVE ROCKER ARM EXHAUST 1 Rp10.500
11 12911-22J00-000 VALVE, INTAKE 1 Rp25.000
12 12912-22J00-000 VALVE, EXHAUST 1 Rp40.500
13 12921-09J00-000 SPRING, VALVE 2 Rp11.000
14 12931-09G00-000 RETAINER, VALVE SPRING 2 Rp13.000
15 12932-09G00-000 COTTER, VALVE 4 Rp4.500
16 12933-09G00-000 SEAT, VALVE SPRING 2 Rp9.000
17 09289-05L01-000 SEAL (4.4X10.5X8.4) 2 Rp7.000
18 12725-20G00-000 SPRING, DECOMP CAM 1 Rp3.000
19 12741-09J00-000 SPROCKET, CAMSHAFT (NT:34) 1 Rp52.500
20 12950-09J20-000 CAM, DECOMPRESSION 1 Rp41.000
21 12954-39J00-000 STOPPER, DECOMP CAM 1 Rp27.000
22 12955-33G00-000 WASHER, DECOMP SHAFT 1 Rp11.500
23 09106-05028-000 BOLT (5X15) 2 Rp6.500
24 09206-08008-000 PIN (6.3X8X12) 1 Rp4.000
25 09261-05005-000 PIN (5X8) 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
