NEX II

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 181A COOLING FANFIG. 210A TRANSMISSION (1FIG. 211A TRANSMISSION (2FIG. 240A KICK STARTER

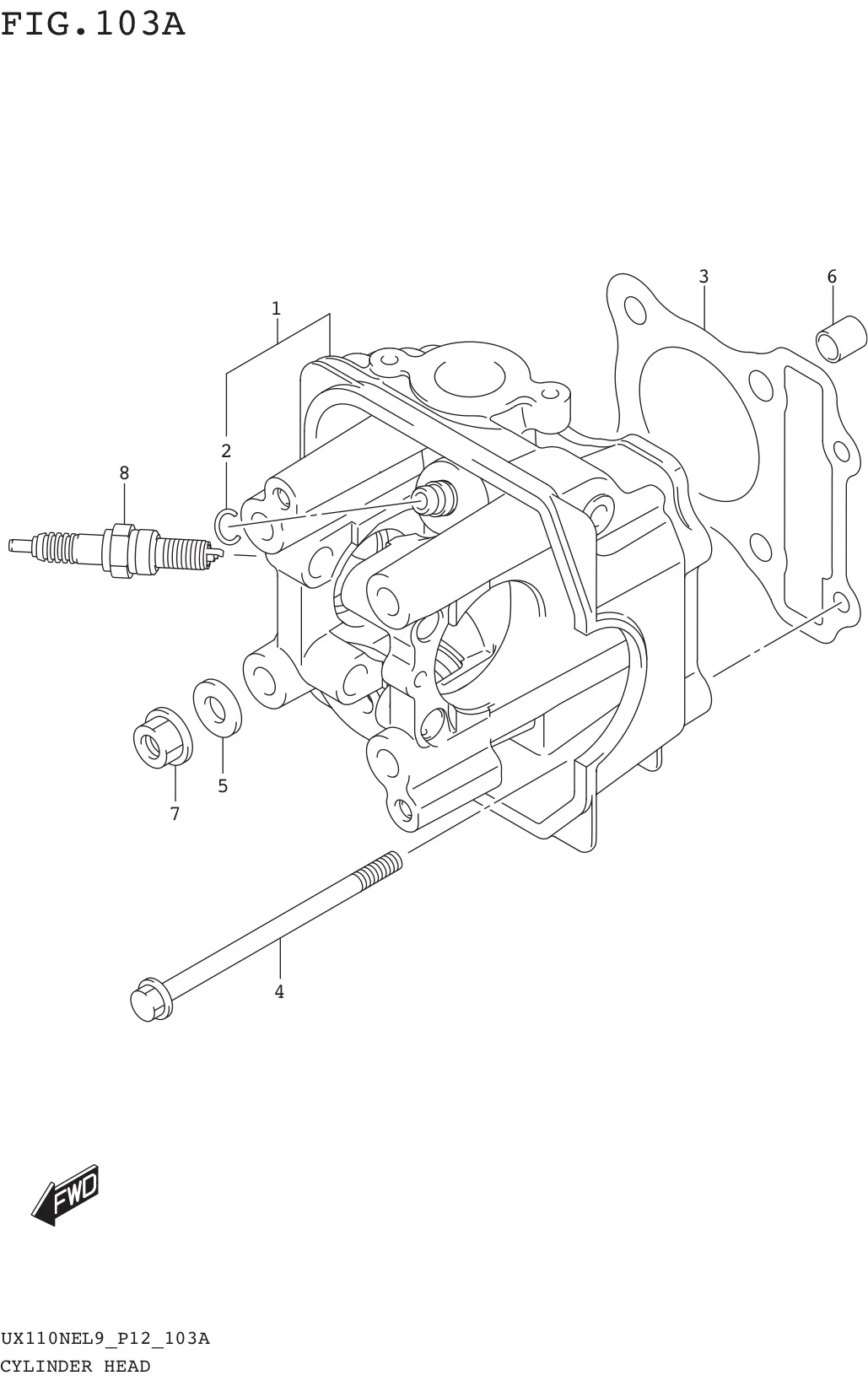

FIG. 103A CYLINDER HEAD

FIG. 103A CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11110-09J70-000 HEAD, CYLINDER 1 Rp889.000
2 09381-10004-000 .SNAP RING 2 Rp3.000
3 11141-09J10-000 GASKET, CYLINDER HEAD 1 Rp17.500
4 09103-06501-000 BOLT (6X100) 2 Rp9.000
5 09160-08164-000 WASHER (8.5X18X2.3) 4 Rp6.500
6 09206-10016-000 PIN (8.2X10X13) 2 Rp3.500
7 08316-1008A-000 NUT 4 Rp3.500
8-1 09482-00621-000 SPARK PLUG (CPR7EA-9) 1 Rp24.000 NGK
8-2 09482-00627-000
SUB: 09482B00627N000		 SPARK PLUG (U22EPR9) 1 Rp17.000 DENSO
8-3 09482-00620-000
SUB: 09482B00620N000		 SPARK PLUG (CPR6EA-9) 1 Rp29.000 OPT NGK
8-4 09482-00622-000 SPARK PLUG (CPR8EA-9) 1 Rp24.500 OPT NGK
8-5 09482-00626-000
SUB: 09482B00626N000		 SPARK PLUG (U20EPR9) 1 Rp20.500 OPT DENSO
8-6 09482-00628-000 SPARK PLUG (U24EPR9) 1 Rp20.500 OPT DENSO

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
