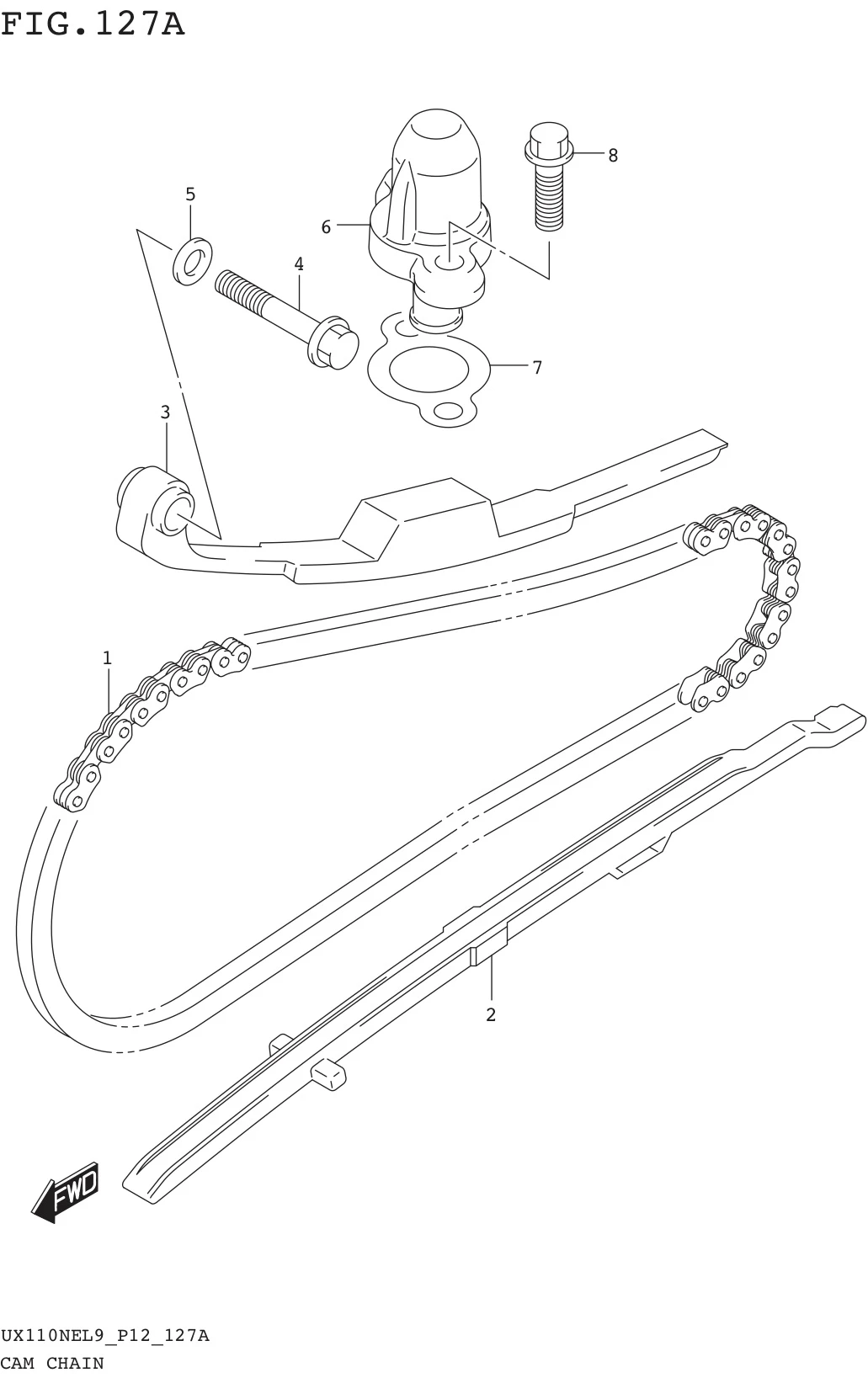

FIG. 127A CAM CHAIN

FIG. 127A CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12760-22J00-000 CHAIN, CAMSHAFT DRIVE 1 Rp74.000
2 12771-40J00-000 GUIDE, CAM CHAIN 1 Rp9.500
3-1 12811-22J01-000
SUB: 12811-22J00-000		 TENSIONER, CAM CHAIN 1 Rp57.500 NOK
3-2 12811-09J00-000
SUB: 12811B09J00N000		 TENSIONER, CAM CHAIN 1 Rp47.000 INOAC
4 09103-06247-000 BOLT (6X32) 1 Rp4.000
5 09168-06004-000 GASKET (6.2X11X1.2) 1 Rp2.500
6 12830-09J00-000 ADJUSTER ASSY, TENSIONER 1 Rp96.000
7 12837-46G10-000 GASKET, TENSIONER ADJUSTER 1 Rp4.000
8 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
