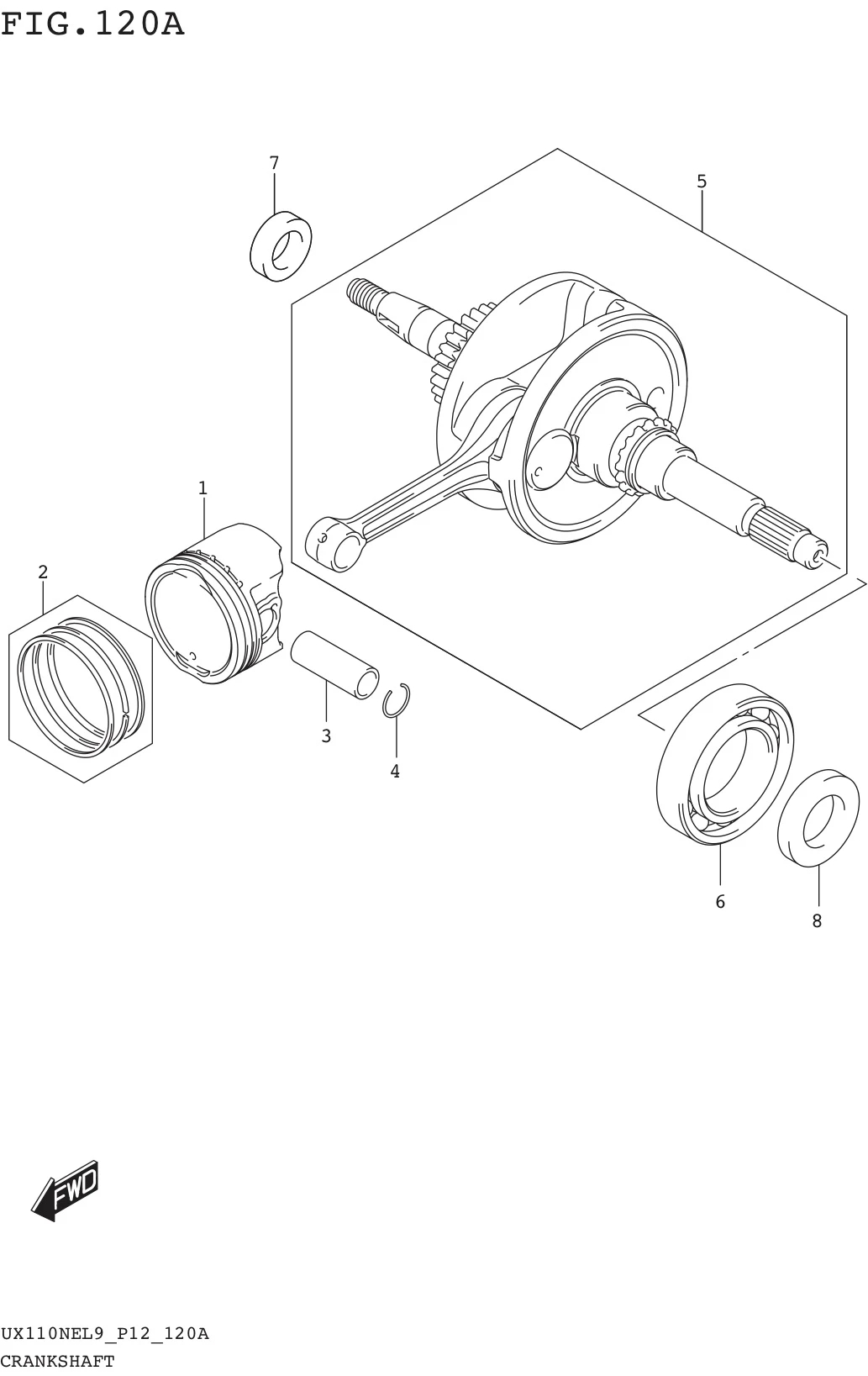

FIG. 120A CRANKSHAFT

FIG. 120A CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1-1 12111-40J00-0F0 PISTON STD 1 Rp90.000
1-2 12111-40J00-050 PISTON 0.5 1 Rp107.500
2-1 12140-22J00-0F0 RING SET, PISTON STD 1 Rp43.000
2-2 12140-22J00-050 RING SET, PISTON 0.5 1 Rp50.500
3 12151-09J10-000 PIN, PISTON 1 Rp7.500
4 09381-13001-000 SNAP RING 2 Rp3.000
5 12200-09JF0-000
SUB: 12200-09JE1-000		 CRANKSHAFT ASSY 1 Rp778.000
6 09262-35L10-000 BEARING (35X62X14) 1 Rp57.500 LH
7 09283-16010-000 SEAL, CRANKSHAFT OIL, RH 1 Rp17.500 RH
8 09283-22035-000 SEAL, CRANKSHAFT OIL, LH 1 Rp16.500 LH

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
