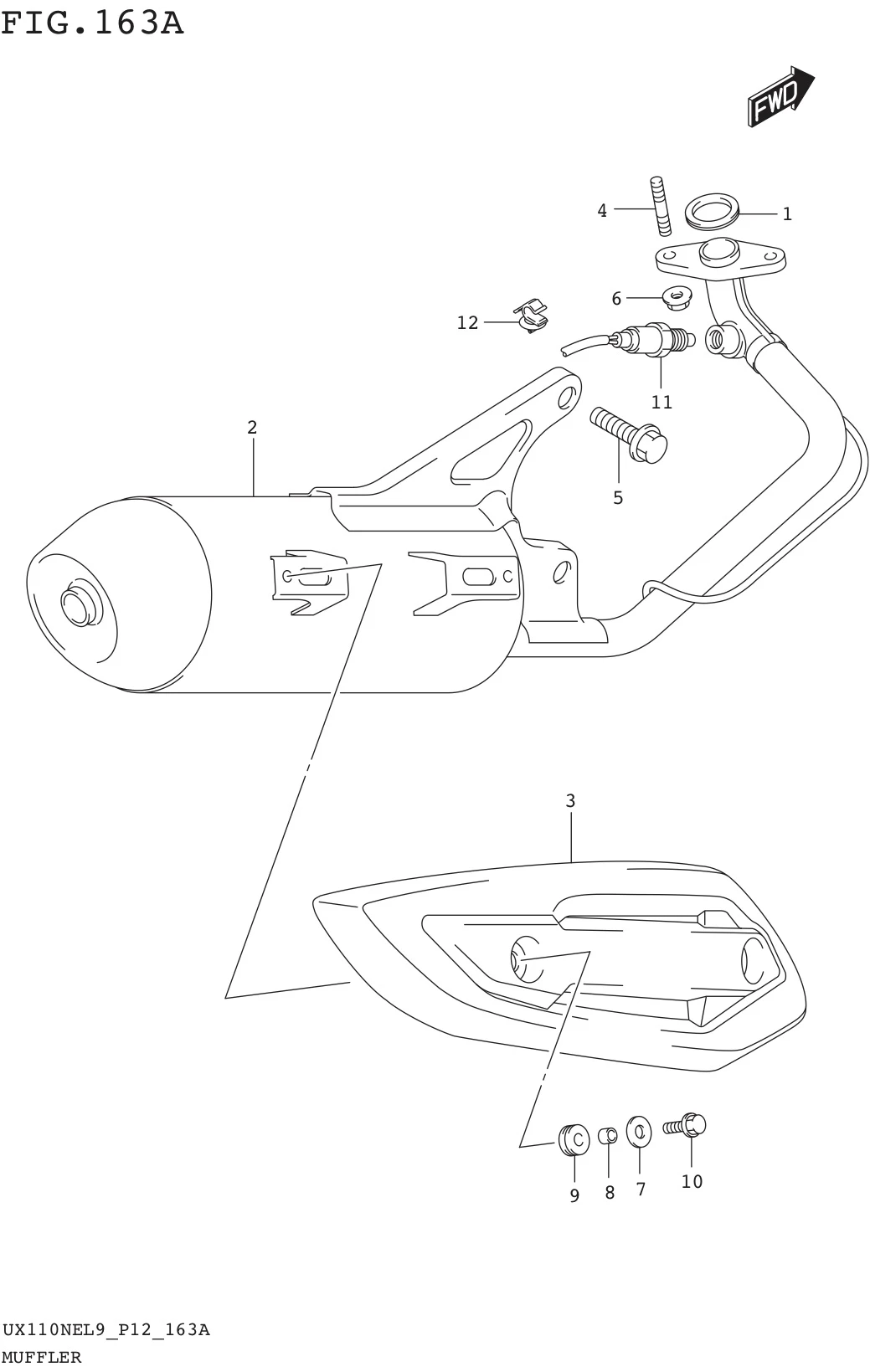

FIG. 163A MUFFLER

FIG. 163A MUFFLER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	14181-30A20-000	GASKET, EXH PIPE	1	Rp4.000
2	14310-40J70-000	BODY, MUFFLER	1	Rp2.243.000
3	14781-40J01-000	COVER, MUFFLER	1	Rp25.000
4	01421-0616A-000	BOLT	2	Rp3.500
5	01550-1040A-000	BOLT	2	Rp7.000
6	08316-1006A-000	NUT	2	Rp2.000
7	09160-06028-000	WASHER (6.5X18X1)	2	Rp3.500
8	09180-06256-000	SPACER (6.5X9X5.7)	2	Rp3.000
9	09320-08051-000	CUSHION	2	Rp3.000
10	01550-0616A-000	BOLT	2	Rp3.500
11	18213-09JA1-000	SENSOR, OXYGEN	1	Rp444.500
12	09403-05L03-000	CLAMP	1	Rp12.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
