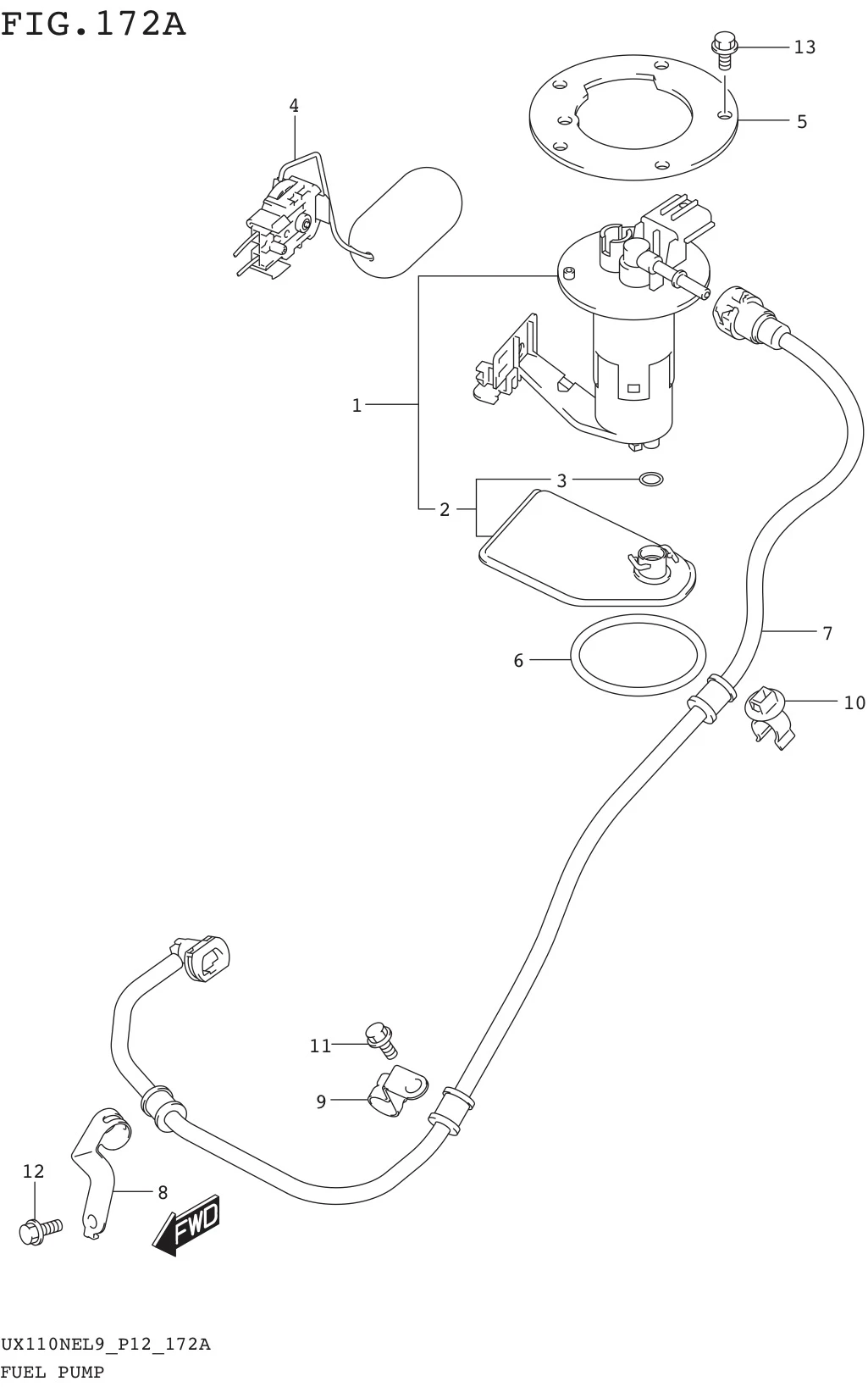

FIG. 172A FUEL PUMP

FIG. 172A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-09JB2-000
SUB: 15100-09JB1-000		 PUMP ASSY, FUEL 1 Rp517.500
2 15420-09JB0-000 .FILTER, FUEL 1 Rp266.500
3 15424-09JB0-000 ..O RING 1 Rp10.000
4 34810-49K00-000 GAUGE ASSY, FUEL LEVEL SENDER 1 Rp105.500
5 15121-09JC0-000 PLATE, FUEL PUMP 1 Rp10.500
6 15201-09JA0-000 O RING, FUEL PUMP 1 Rp54.500
7 15810-49K01-000
SUB: 15810-49K00-000		 HOSE, FUEL 1 Rp127.500
8 15891-49K00-000 CLAMP, FUEL HOSE FR 1 Rp10.500
9 15892-49K00-000 CLAMP, FUEL HOSE MR 1 Rp7.000
10 15893-09JA0-000
SUB: 15893B09JA0N000		 CLAMP, FUEL HOSE RR 1 Rp11.000
11 01547-0610A-000 BOLT 1 Rp3.000
12 01547-0610A-000
SUB: 01547B0612AN000		 BOLT 1 Rp3.000
13 01547-0610A-000 BOLT 5 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
