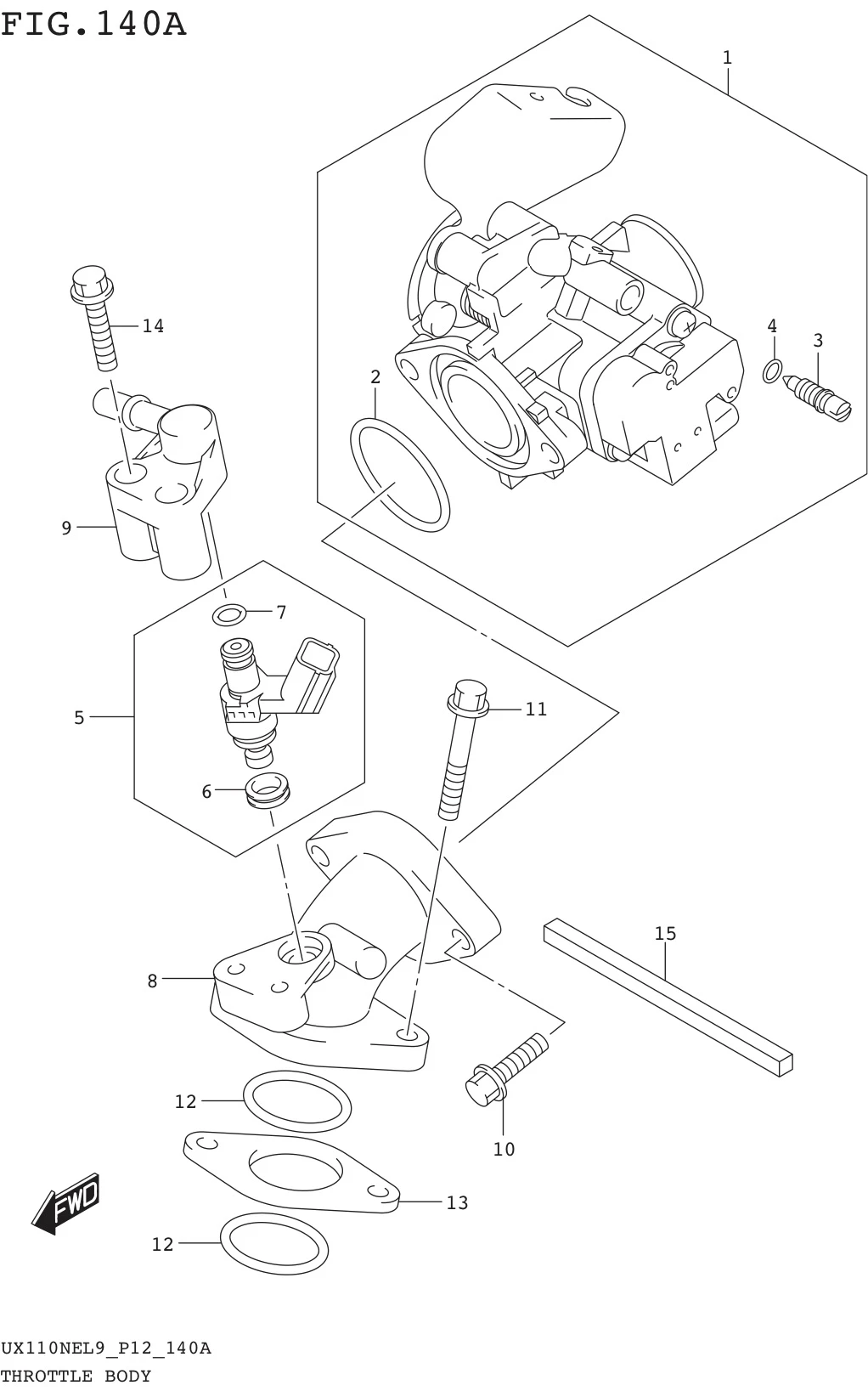

FIG. 140A THROTTLE BODY

FIG. 140A THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-49K01-000
SUB: 13400-49K00-000		 BODY ASSY, THROTTLE 1 Rp699.000
2 13295-16HA0-000 .O RING 1 Rp5.000
3 13662-22J00-000 .ADJUSTER, BAS 1 Rp12.000
4 13453-36F00-000 .O RING, FUEL PUMP 1 Rp20.500
5 15710-39JA0-000 INJECTOR ASSY, FUEL 1 Rp196.000
6 15722-21H00-000
SUB: 15722B21H00N000		 .RING, SEAL 1 Rp9.000
7 15721-26J00-000 .O RING 1 Rp5.500
8 13110-39JB0-000 PIPE, INTAKE 1 Rp77.000
9 15830-39JA0-000 JOINT, FUEL HOSE 1 Rp35.500
10 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
11 01547-0625A-000 BOLT 2 Rp6.500
12 09280-26011-000 O RING (D:2.4,ID:25.7) 2 Rp8.000
13 13128-40JA0-000 INSULATOR, INTAKE PIPE 1 Rp9.500
14 01547-0635A-000 BOLT 2 Rp6.500
15 13112-39JB0-000 CUSHION, INTAKE PIPE 1 Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
