New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFT(5MT)FRONT DRIVE SHAFT(4AT)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRE(W/AL WHEEL)STEERING WHEELSTEERING COLUMNSTEERING UNITPEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (4AT)BRAKE MASTER CYLINDER BRAKE PIPING ANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

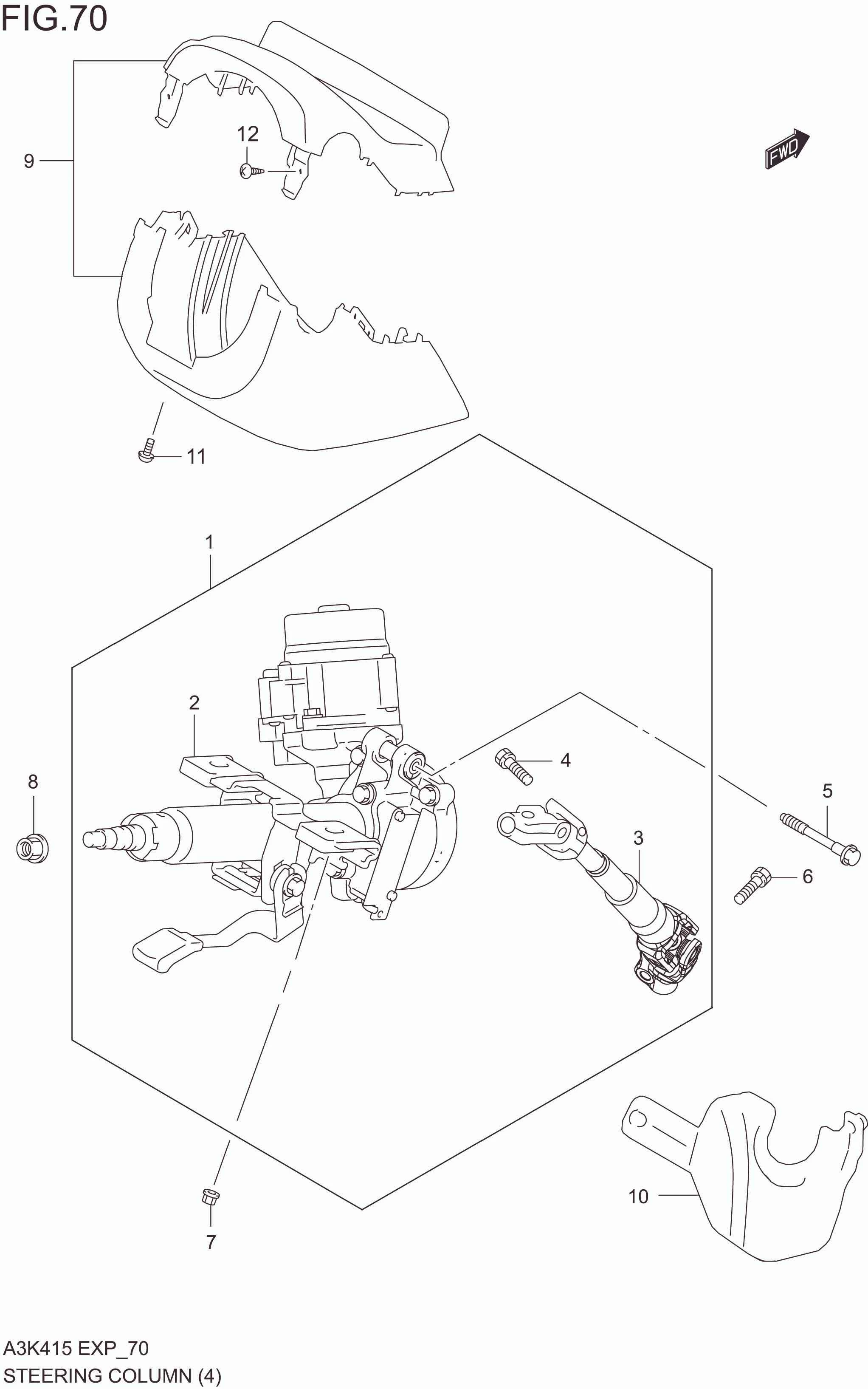

STEERING COLUMN

STEERING COLUMN
No No. Part Description Qty Price Per Pcs Remarks
1 48200M55TE0-000 COLUMN ASSY, STEERING 1 Rp18.731.500
2 48210M55TE0-000 .SHAFT ASSY, STEERING COLUMN UPPER (W/MOTOR) 1 Rp16.043.000
3 48220M68P00-000 .SHAFT ASSY, STEERING COLUMN LOWER 1 Rp1.564.500
4 48218M61M00-000 .BOLT STEERING SHAFT JOINT 2 Rp16.000
5 48215-76M00-000 BOLT, STEERING COLUMN LOWER 1 Rp37.500
6 09117-08106-000 BOLT 1 Rp23.500
7 08316-1008A-000 NUT 2 Rp3.500
8 08316-1012A-000 NUT 1 Rp6.500
9 48400M55T30-5PK COVER ASSY, STEERING COLUMN (BLACK) 1 Rp158.000
10 48481-52R00-000 COVER, STEERING JOINT 1 Rp19.000
11 09136M05030-000
SUB: 09136-05030-000		 SCREW 1 Rp4.500
12 03241-0512A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
