New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFT(5MT)FRONT DRIVE SHAFT(4AT)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRE(W/AL WHEEL)STEERING WHEELSTEERING COLUMNSTEERING UNITPEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (4AT)BRAKE MASTER CYLINDER BRAKE PIPING ANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

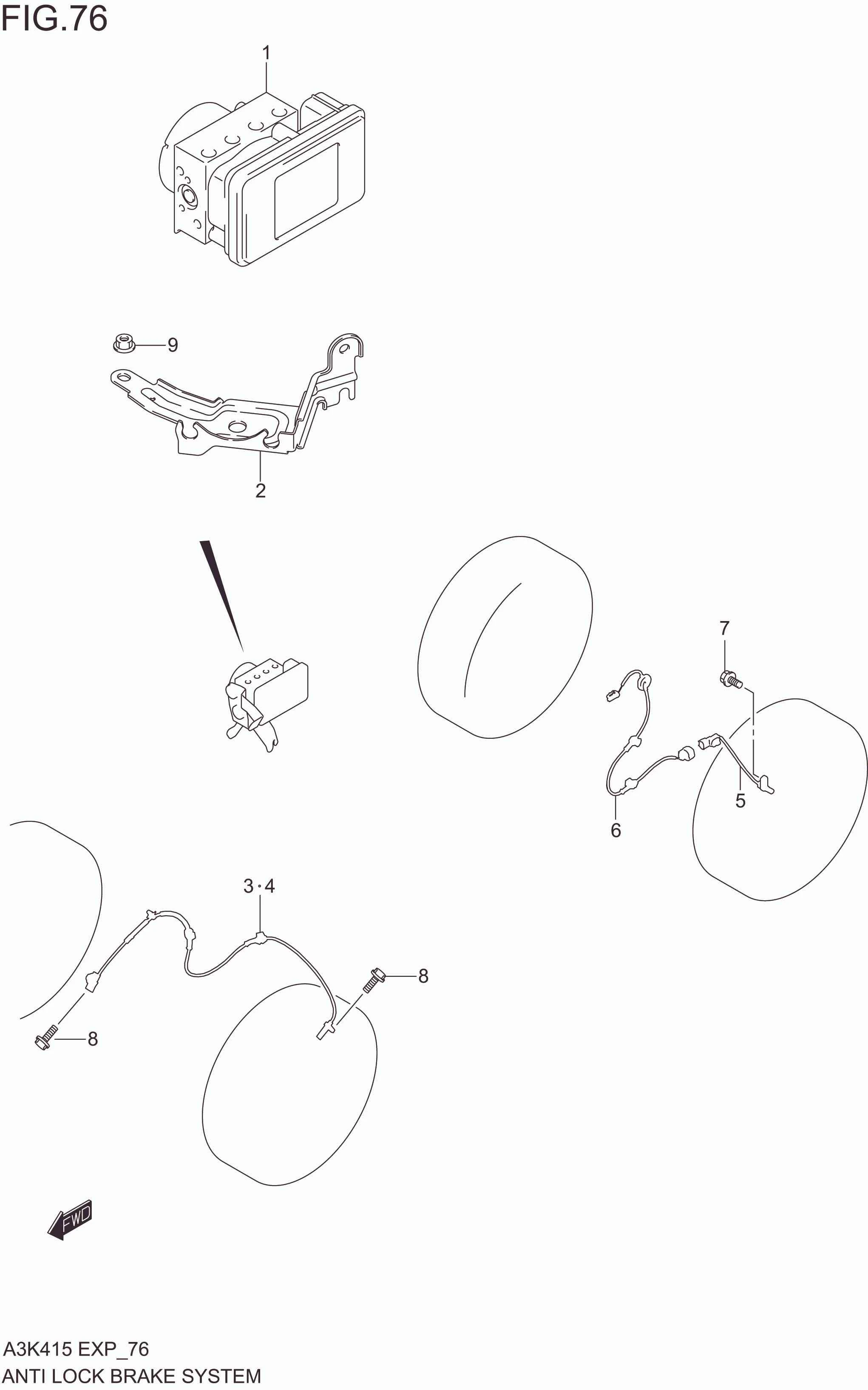

ANTI LOCK BRAKE SYSTEM

ANTI LOCK BRAKE SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1-1 56130M55TD0-000 ACTUATOR ASSY, ESP 1 Rp14.535.000
1-2 56130M55TE0-000 ACTUATOR ASSY, ESP 1 Rp14.535.000
2 56161M55T50-000 BRACKET, ESP ACTUATOR 1 Rp87.000
3 56210M55T00-000 SENSOR, FR WHEEL RH 1 Rp238.000
4 56220M55T00-000 SENSOR, FR WHEEL LH 1 Rp233.000
5 56310M55T00-000 SENSOR, RR WHEEL 2 Rp182.500
6 56315M55T00-000 HARNESS, RR WHEEL SENSOR 2 Rp155.500
7 01550-0612A-000 BOLT 2 Rp3.500
8 02162-0616A-000 BOLT 2 Rp3.000
9 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
