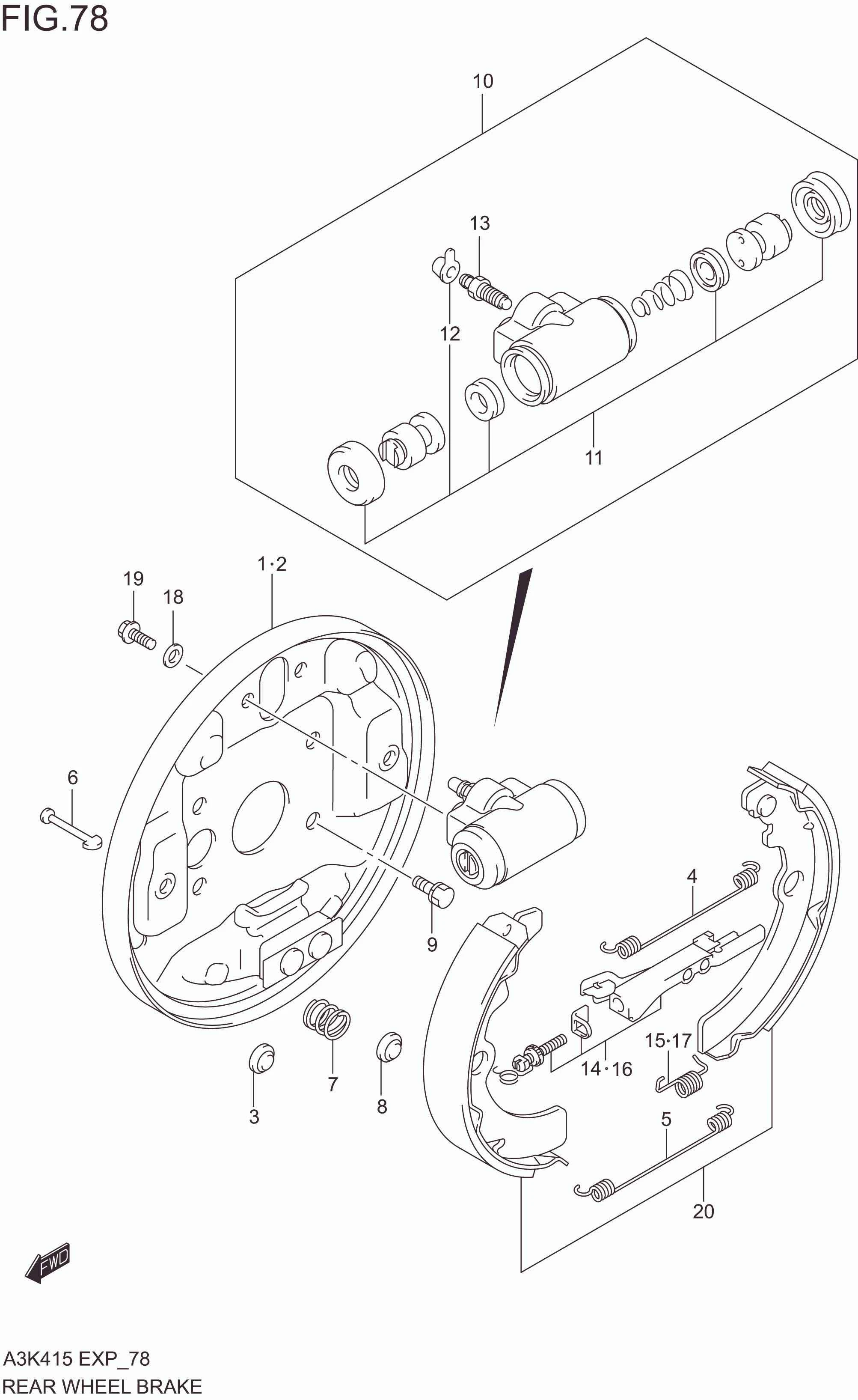

No	No. Part	Description	Qty	Price Per Pcs
1	53101M68P50-000	PLATE, RR BRAKE RH	1	Rp398.500
2	53102M68P50-000	PLATE, RR BRAKE LH	1	Rp398.500
3	53141M79F10-000	PLUG	1	Rp5.500
4	53231M75J00-000	SPRING, SHOE RETURN UPR	2	Rp11.500
5	53232M75J00-000	SPRING, SHOE RETURN LWR	2	Rp10.000
6	53241M68P50-000	PIN	4	Rp10.500
7	53243M75J00-000	SPRING, HOLD DOWN	4	Rp10.000
8	53244M79GC0-000	CUP	4	Rp9.500
9	53247M75J00-000	SCREW	2	Rp11.500
10	53402M75J01-000	CYLINDER ASSY, REAR WHEEL	2	Rp219.500
11	53400M75J00-000	.CUP SET, RR WHEEL CYLINDER	2	Rp53.000
12	55156M68K00-000	..CAP, BLEEDER	2	Rp5.500
13	55473M68P50-000	.BLEEDER	2	Rp5.500
14	53701M68P51-000	STRUT ASSY, RR BRAKE RH	1	Rp181.000
15	53714M75J00-000	STRUT, RETAINING SPRING RH	1	Rp18.500
16	53702M68P51-000	STRUT ASSY, RR BRAKE LH	1	Rp181.000
17	53715M75J00-000	STRUT, RETAINING SPRING LH	1	Rp18.500
18	DISCONTINUE SUB: 08321-01063-000	WASHER	4	-
19	52476M68K00-000	SCREW, MOUNTING	2	Rp10.500
20	53200M54T10-000	SHOE SET	1	Rp567.500
