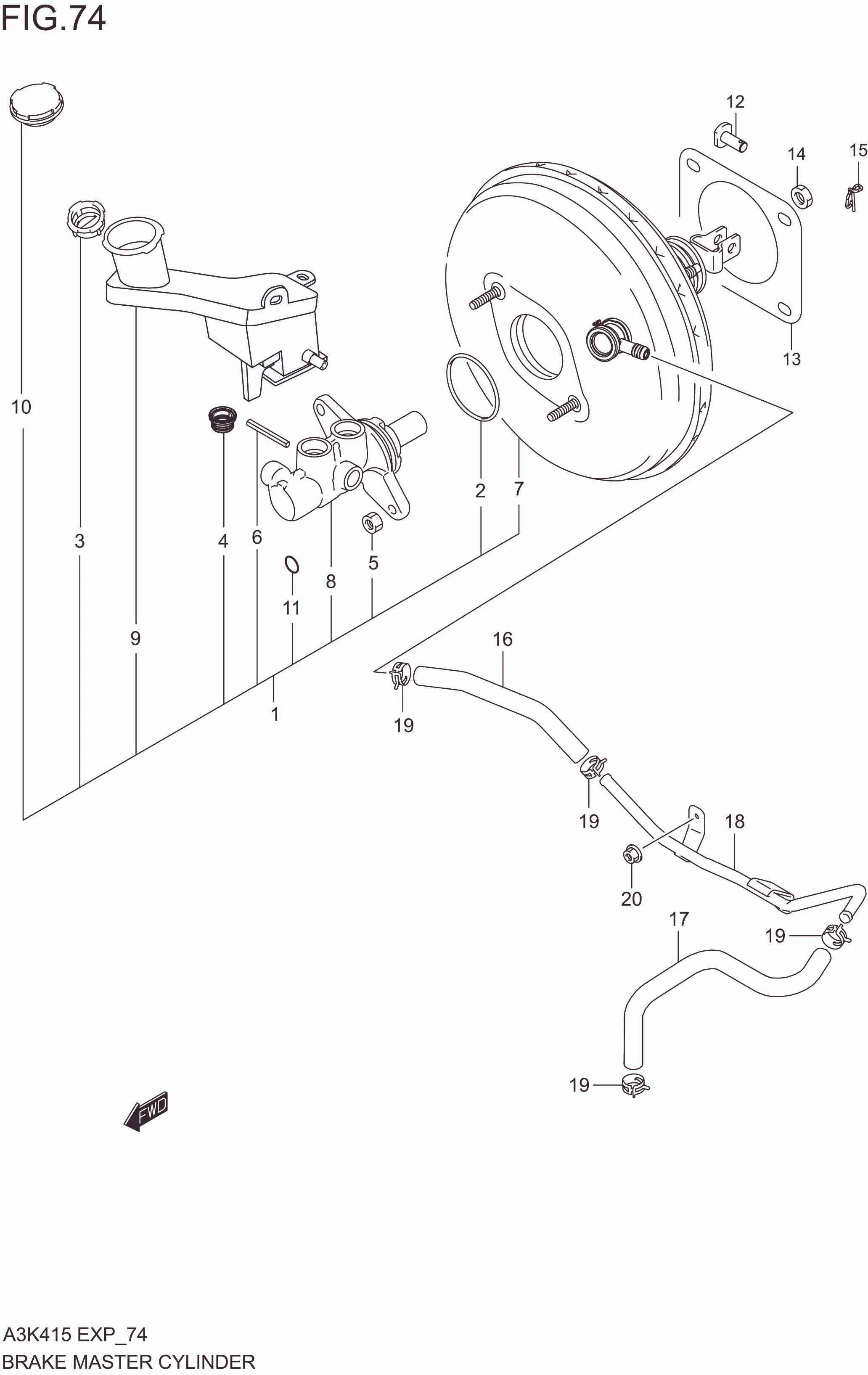

No	No. Part	Description	Qty	Price Per Pcs
1-2	51000M55TL0-000	CYLINDER ASSY, BRAKE MASTER	1	Rp2.931.000
1-1	51000M55T50-000	CYLINDER ASSY, BRAKE MASTER	1	Rp2.470.000
2	51311M68K00-000	.O RING	1	Rp10.500
3	51240M67LA0-000	.FILTER	1	Rp51.500
4	51232M74L00-000	.GROMMET	2	Rp37.500
5	08310-0008A-000	.NUT	2	Rp12.500
6	51233M65J00-000 SUB: 51233-65J00-000	.SPRING, PIN	1	Rp29.500
7-1	51300M55TS0-000	.BOOSTER ASSY, BRAKE MASTER	1	Rp1.978.000
7-2	51300M55TR0-000	.BOOSTER ASSY, BRAKE MASTER	1	Rp3.931.000
8-1	51100M55T50-000	.MASTER CYLINDER ASSY	1	Rp2.092.000
8-2	51100M55TH0-000	.MASTER CYLINDER ASSY	1	Rp2.102.000
9-2	51200M55TH0-000	.RESERVOIR ASSY, BRAKE MASTER	1	Rp301.000
9-1	51200M55T00-000	.RESERVOIR ASSY, BRAKE MASTER	1	Rp301.000
10	51220M55T00-000	.CAP, RESERVOIR	1	Rp90.500
11	08321M01083-000 SUB: 08321-0108A-000	.WASHER	2	Rp11.000
12	51120M60M00-000	PIN,BRAKE MASTER CYLINDER	1	Rp10.500
13	51132M79G10-000	PACKING, BRAKE MASTER CYLINDER	1	Rp5.500
14	09159-08127-000 SUB: 09159M08153-000	NUT	4	Rp11.000
15	09385M08L01-000	CLIP	1	Rp9.000
16	51020M55T00-000	HOSE, VACUUM PIPE TO INTK	1	Rp139.500
17	51811M68P10-000	HOSE, VACUUM BSTR TO PIPE	1	Rp27.500
18	51870M68P01-000	PIPE, BRAKE VACUUM	1	Rp56.000
19	09401M15422-000	CLAMP	4	Rp9.000
20	08316-1006A-000	NUT	2	Rp2.000
