New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFT(5MT)FRONT DRIVE SHAFT(4AT)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRE(W/AL WHEEL)STEERING WHEELSTEERING COLUMNSTEERING UNITPEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (4AT)BRAKE MASTER CYLINDER BRAKE PIPING ANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

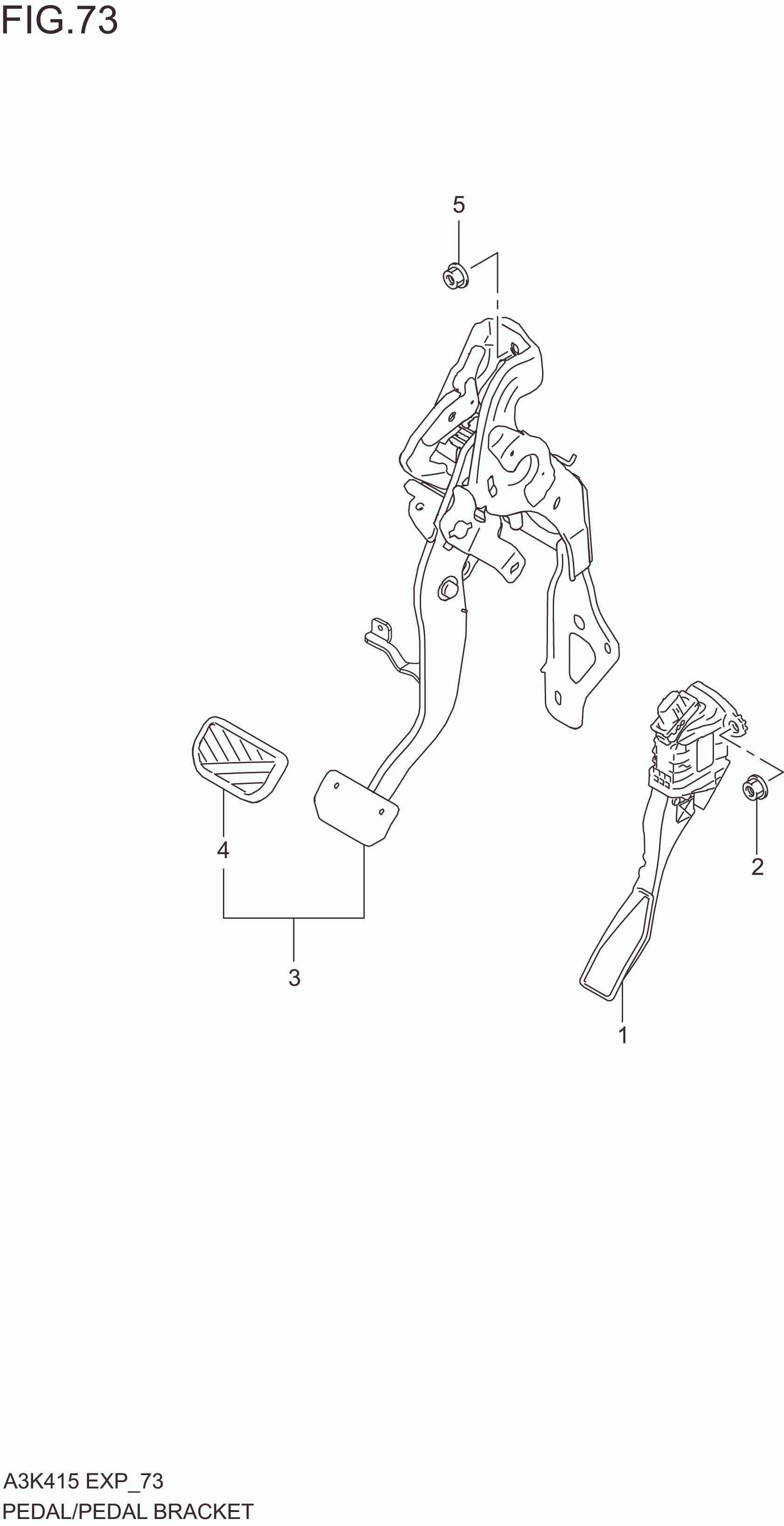

PEDAL/PEDAL BRACKET (4AT)

PEDAL/PEDAL BRACKET (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 49400M55T00-000 PEDAL ASSY,ACCELERATOR 1 Rp783.000
2 09159-08127-000
SUB: 09159M08153-000		 NUT,ACCEL PEDAL BRACKET 2 Rp11.000
3 49600M55R10-000 PEDAL ASSY,BRAKE 1 Rp571.500
4 49751M50M10-000 .PAD,PEDAL 1 Rp24.000
5 09159-08127-000
SUB: 09159M08153-000		 NUT 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
