Preview Engine Transmission Electrical Suspension Body

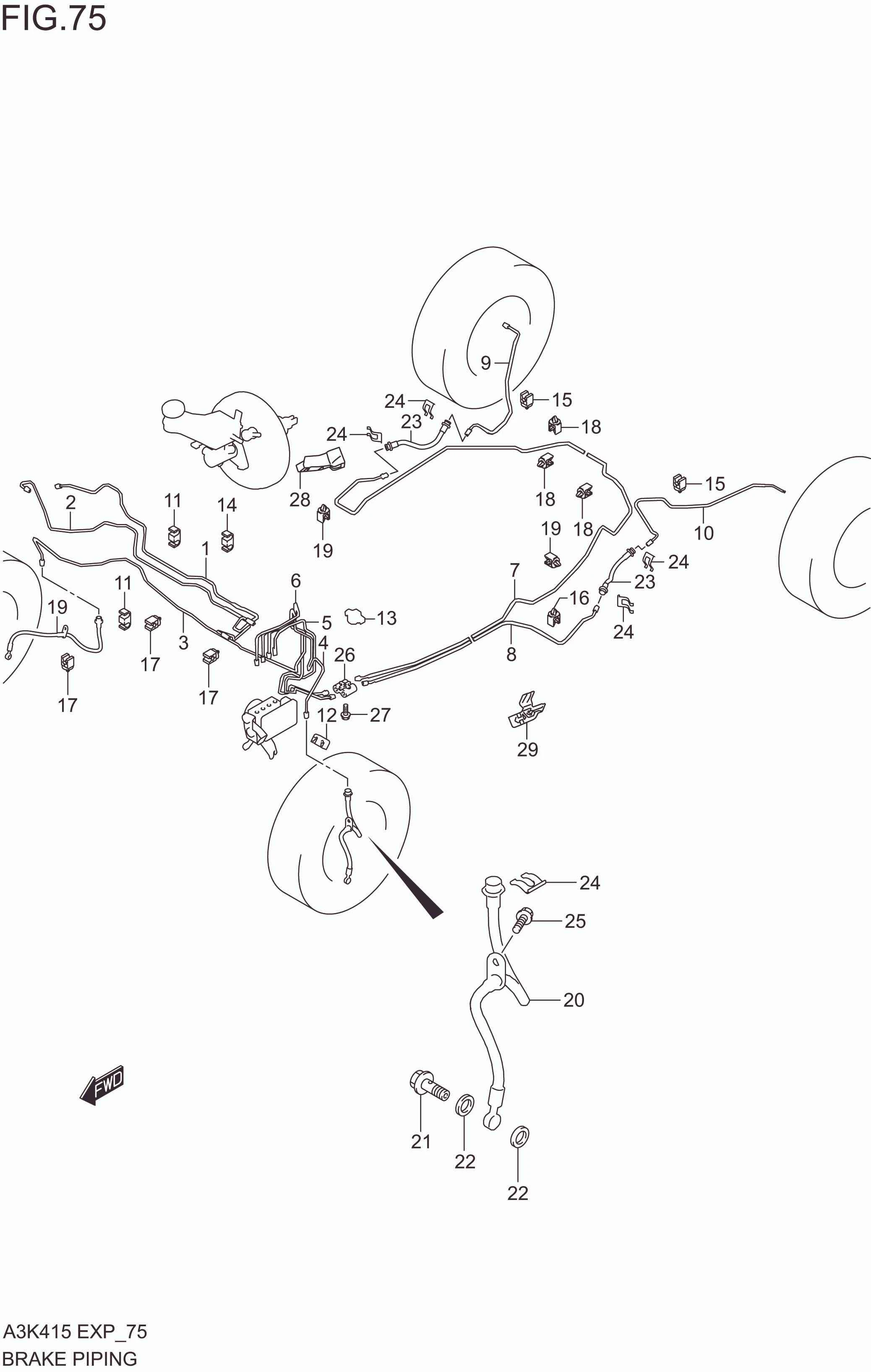

No	No. Part	Description	Qty	Price Per Pcs
1	51410M55T00-000	PIPE, MA PRI TO HU	1	Rp125.000
2	51420M55T00-000	PIPE, MA SEC TO HU	1	Rp132.500
3	51430M55T00-000	PIPE, HU TO FR BK HOSE RH	1	Rp116.000
4	51440M55T00-000	PIPE, HU TO FR BK HOSE LH	1	Rp58.000
5	51450M55T00-000	PIPE, HU TO JOINT RH	1	Rp78.500
6	51460M55T00-000	PIPE, HU TO JOINT LH	1	Rp78.500
7	51470M68P50-000	PIPE, JOINT TO RR BK HOSE RH	1	Rp230.500
8	51480M68P00-000	PIPE, JOINT TO RR BK HOSE LH	1	Rp122.000
9	51510M55T00-000	PIPE, RR BK HOSE TO RR W/C RH	1	Rp53.500
10	51520M55T00-000	PIPE, RR BK HOSE TO RR W/C LH	1	Rp53.500
11	51751M55T20-000	CLAMP, BK PIPE MA TO HU	2	Rp8.000
12	51751M75J00-000	CLAMP, BK PIPE DASH DOUBLE	1	Rp10.500
13	51751M55T00-000	CLAMP, BK PIPE 4	1	Rp28.500
14	51751M79M00-000	CLAMP, BK PIPE MA TO HU	1	Rp15.000
15	51761M60M20-000	CLAMP, BK PIPE DASH SINGLE	2	Rp5.500
16	51761M60M20-000	CLAMP, BK PIPE SIDE MEMBER RH	1	Rp5.500
17	51761M60M20-000	CLAMP, BK PIPE RR SIDE MBR	3	Rp5.500
18	51761M60M20-000	CLAMP, BK PIPE RR FL SINGLE	3	Rp5.500
19	51761M60M20-000	CLAMP, BK PIPE 1	2	Rp5.500
20	51550M55R02-000 SUB: 51550M55R01-000	HOSE, FR BRAKE FLEXIBLE	2	Rp187.000
21	51561M55K00-000	BOLT, FR DISC FLEXIBLE HOSE	2	Rp8.500
22	51562M55K00-000	WASHER, FR DISC FLEXIBLE HOSE	4	Rp8.500
23	51570M55R00-000	HOSE, RR BRAKE FLEXIBLE	2	Rp81.000
24	09383M13005-000	E-RING	6	Rp7.000
25	01551-0816C-000 SUB: 01551-0816A-000	BOLT	2	Rp13.500
26	51630M70F00-000	JOINT, BRAKE 4 WAY	1	Rp122.000
27	02162M0625E-000	BOLT	1	Rp7.500
28	51711M68P00-000	COVER, BRAKE PIPE RH	1	Rp32.000
29	51712M68P00-000	COVER, BRAKE PIPE LH	1	Rp32.000
