Suspension - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

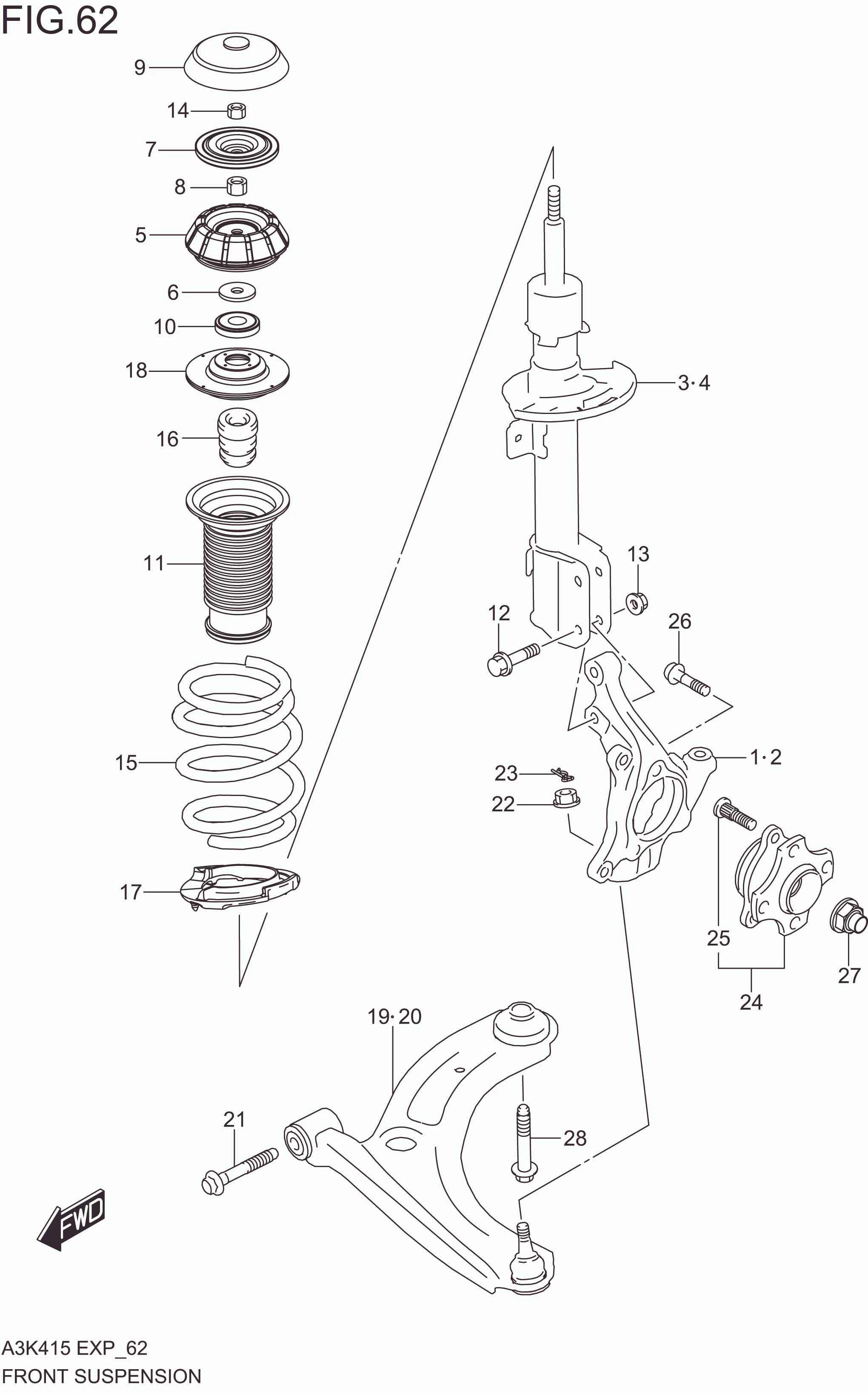

No	No. Part	Description	Qty	Price Per Pcs
1	45111M55T00-000	KNUCKLE,STEERING,RH	1	Rp754.000
2	45151M55T00-000	KNUCKLE,STEERING,LH	1	Rp765.500
3	41601M55T00-000	STRUT ASSY,FRONT SPNSN,RH	1	Rp1.058.000
4	41602M55T00-000	STRUT ASSY,FRONT SPNSN,LH	1	Rp1.058.000
5	41710M55R00-000	SUPPORT,FRONT STRUT	2	Rp172.000
6	41711-52R00-000	PLATE,STRUT BEARING	2	Rp149.500
7	41720M55R00-000	STOPPER,FRONT STRUT REBOUND	2	Rp83.000
8	41721-55R00-000	NUT,STRUT SUPPORT LOWER	2	Rp69.000
9	41724-72R00-000	CAP,STRUT ROD	2	Rp141.000
10	41742M57K10-000	BEARING,FRONT STRUT	2	Rp81.000
11	41931-55R01-000	COVER,STRUT DUST	2	Rp200.500
12	41615-52R00-000	BOLT,STRUT BRACKET	4	Rp40.000
13	41616M76M00-000	NUT,STRUT BRACKET	4	Rp15.000
14	08310-0012A-000	NUT	2	Rp17.500
15-1	41111M55T30-000	SPRING,FRONT COIL	2	Rp329.500
15-2	41111M55T40-000	SPRING,FRONT COIL	2	Rp329.500
16	42111M72R01-000 SUB: 42111-72R01-000	STOPPER,FRONT BUMP	2	Rp137.000
17	41212-52R00-000	SEAT,FRONT SPRING LOWER	2	Rp105.000
18	41230-55R00-000	SEAT,FRONT SPRING UPPER	2	Rp101.000
19	45201M68P20-000	ARM ASSY,FRONT SUSPENSION,RH	1	Rp843.500
20	45202M68P20-000	ARM ASSY,FRONT SUSPENSION,LH	1	Rp843.500
21	45861M68P10-000	BOLT,SPNSN ARM FR BUSHING	2	Rp70.000
22	09159-12069-000	NUT	2	Rp23.000
23	09385-12002-000	PIN	2	Rp4.500
24	43401M68P01-000	HUB ASSY,FRONT WHEEL	2	Rp1.201.000
25	43423M62S00-000	.BOLT, FRONT HUB	8	Rp19.000
26	43458M68P00-000	BOLT,WHEEL HUB HOUSING	6	Rp25.000
27	09159-18024-000	NUT	2	Rp74.500
