Preview Engine Transmission Electrical Suspension Body

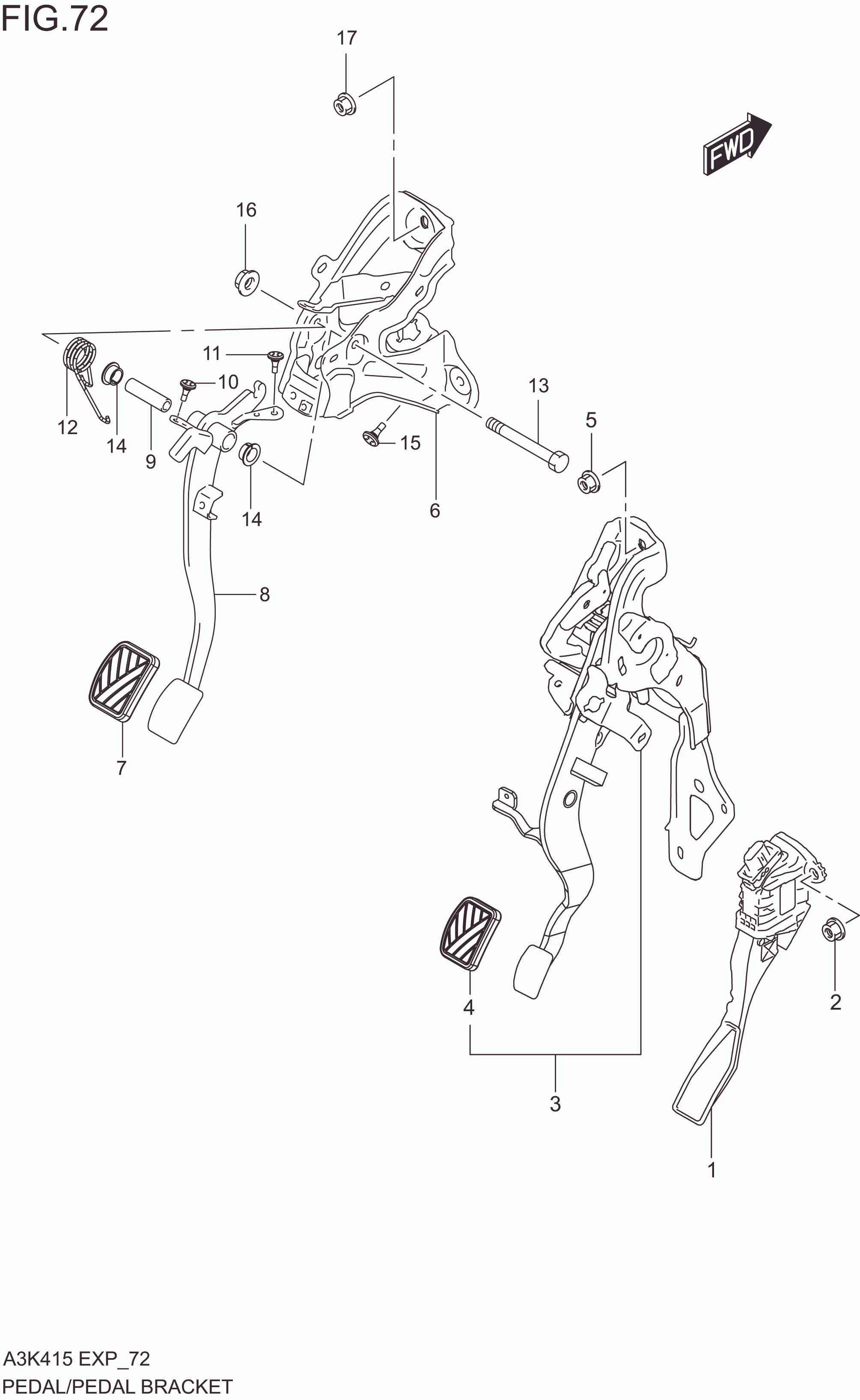

No	No. Part	Description	Qty	Price Per Pcs
1	49400M55T00-000	PEDAL ASSY,ACCELERATOR	1	Rp783.000
2	09159-08127-000 SUB: 09159M08153-000	NUT,ACCEL PEDAL BRACKET	2	Rp11.000
3	49600M55R00-000	PEDAL ASSY,BRAKE	1	Rp523.500
4	49751M58J00-000 SUB: 49751-58J00-000	.PAD,PEDAL	1	Rp9.500
5	09159-08127-000 SUB: 09159M08153-000	NUT,PEDAL BRACKET	1	Rp11.000
6	49720M68P00-000	BRACKET ,CLUTCH PEDAL	1	Rp181.000
7	49751M58J00-000 SUB: 49751-58J00-000	PAD,PEDAL	1	Rp9.500
8	49810M55R00-000	PEDAL ,CLUTCH	1	Rp106.000
9	49871M80F00-000 SUB: 49871-80F00-000	SPACER,CLUTCH PEDAL SHAFT	1	Rp8.500
10	49825M74L00-000	CUSHION,CLUTCH PEDAL START SW	1	Rp6.500
11	49825M74L10-000	CUSHION,CLUTCH PEDAL START SW	1	Rp9.000
12	49891M68P00-000	SPRING,CLUTCH PEDAL	1	Rp9.500
13	DISCONTINUE SUB: 09100-10304-000	BOLT,CLUTCH PEDAL SHAFT	1	-
14	09306M13004-000 SUB: 09307-13005-000	BUSH,PEDAL BOSS	2	Rp11.500
15	09321M06026-000 SUB: 09321-06026-000	CUSHION,CLUTCH PEDAL STOP	1	Rp4.500
16	08316-1010A-000	NUT	1	Rp3.500
17	09159-08127-000 SUB: 09159M08153-000	NUT	3	Rp11.000
