New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFT(5MT)FRONT DRIVE SHAFT(4AT)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRE(W/AL WHEEL)STEERING WHEELSTEERING COLUMNSTEERING UNITPEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (4AT)BRAKE MASTER CYLINDER BRAKE PIPING ANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

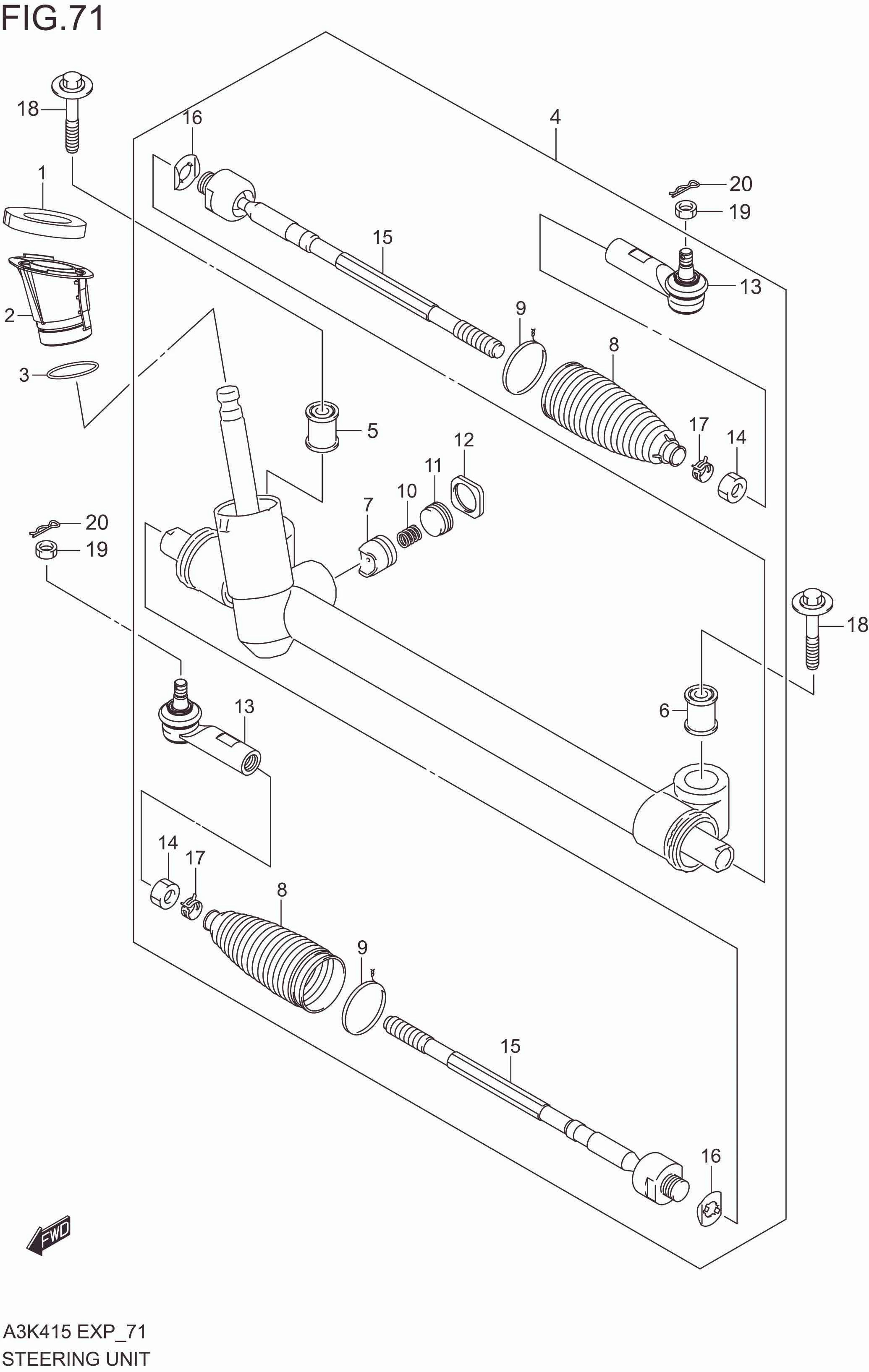

STEERING UNIT

STEERING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 48451M52R00-000 PACKING,STRG GEAR 1 Rp39.000
2 48452M52R00-000 COVER,STRG GEAR 1 Rp24.500
3 09280M46001-000 O-RING 1 Rp5.500
4 48500M55T10-000 BOX ASSY,STRG GEAR 1 Rp3.792.500
5 48525M56R00-000 .MOUNT, STRG PINION SIDE 1 Rp66.500
6 48525M56R50-000 .MOUNT, STRG RACK SIDE 1 Rp69.000
7 48534M56R00-000 .PLUNGER, STRG RACK 1 Rp138.500
8 48571M74L00-000 .BOOT, STRG 2 Rp351.000
9 48575M74L00-000 .STRAP, BOOT 2 Rp57.000
10 48591M56R00-000 .SPRING 1 Rp7.500
11 48592M56R00-000 .YOKE COVER 1 Rp56.000
12 48593M56R00-000 .LOCK NUT 1 Rp22.500
13 48810M65M00-000 .END, STRG TIE ROD 2 Rp388.500
14 48817M74L00-000 .NUT, STRG TIE ROD LOCK 2 Rp18.500
15 48830M56R01-000 .TIE ROD, STRG 2 Rp201.000
16 48841M74L00-000 .LOCK WASHER 2 Rp17.500
17 48871M74L00-000 .CLIP 2 Rp19.000
18 09116-12010-000 BOLT 2 Rp60.000
19 09140-12039-000 NUT 2 Rp6.500
20 09385-12002-000 CLIP 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
