New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFT(5MT)FRONT DRIVE SHAFT(4AT)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRE(W/AL WHEEL)STEERING WHEELSTEERING COLUMNSTEERING UNITPEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (4AT)BRAKE MASTER CYLINDER BRAKE PIPING ANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

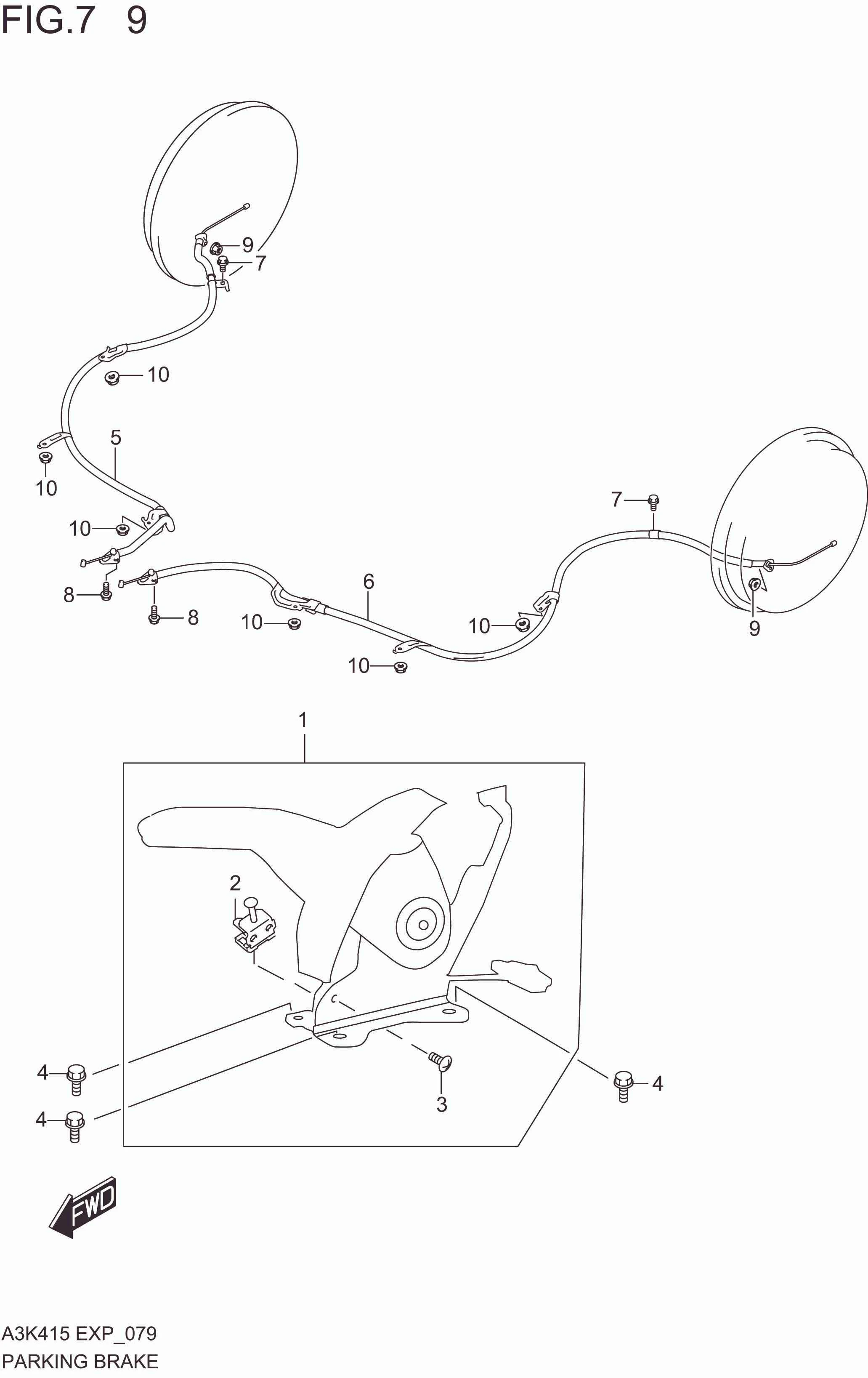

PARKING BRAKE

PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 54100M55T00-C48 LEVER ASSY, PARKING BRAKE (CHROME/BLACK) 1 Rp595.500
2 37940-76G00-000 .SWITCH ASSY, PARKING BK 1 Rp75.500
3 54115-76G00-000 .SCREW 1 Rp16.000
4 01551-0820A-000 BOLT 3 Rp17.500
5 54401M55T00-000 CABLE, PARKING BRAKE RH 1 Rp303.000
6 54402M55T00-000 CABLE, PARKING BRAKE LH 1 Rp303.000
7 01550-0612A-000 BOLT 2 Rp3.500
8 02162-0616A-000 BOLT 2 Rp3.000
9 08316-1006A-000 NUT 2 Rp2.000
10 08316-1006A-000 NUT 6 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
