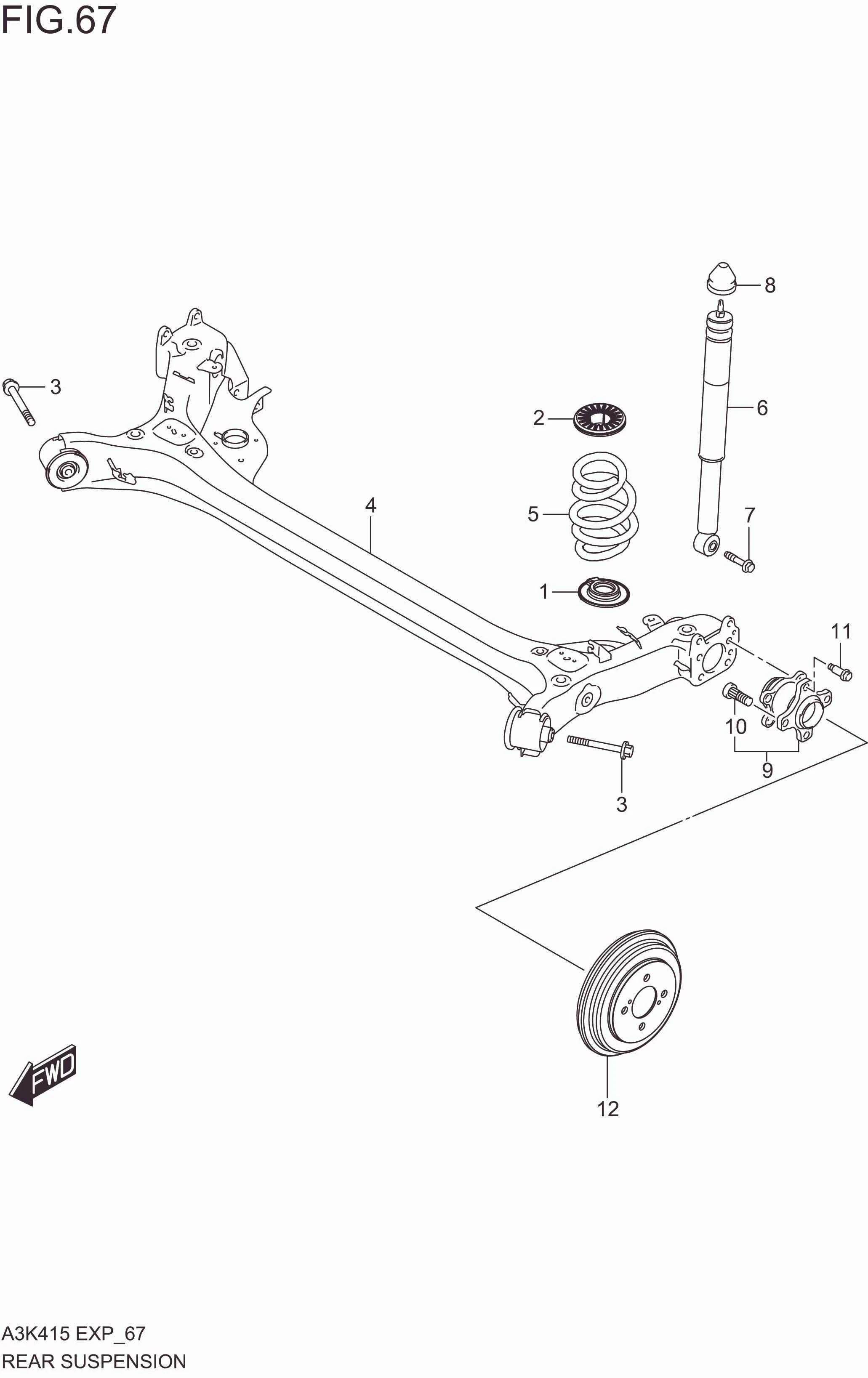

REAR SUSPENSION

REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 41312M72R10-000 SEAT,REAR SPRING LOWER 2 Rp12.000
2 41341M72R00-000 SEAT,REAR SPRING UPPER 2 Rp23.500
3 46223M72R00-000 BOLT,RR TRAILING 2 Rp135.500
4 46500M55T10-000 BEAM ASSY,REAR SPNSN 1 Rp7.327.500
5 41311M55T10-000 SPRING,REAR COIL 2 Rp389.000
6 41800M55T01-000
SUB: 41800M55T00-000		 ABSORBER ASSY,REAR SHOCK 2 Rp1.045.500
7 41821M55R00-000 BOLT,REAR SHK ABS LOWER 2 Rp33.000
8 41951M68P00-000 CAP,REAR SHOCK ABSORBER 2 Rp24.000
9 43402M68P03-000 HUB ASSY,REAR WHEEL 2 Rp1.270.000
10 43423M62S00-000 .BOLT, REAR HUB 8 Rp19.000
11 43413M68P00-000 BOLT,REAR HUB MOUNTING 8 Rp17.500
12 43511M55T00-000 DRUM,BRAKE REAR 2 Rp802.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
