IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFTFRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRESTEERING WHEEL (GL)STEERING WHEEL (GX)STEERING COLUMN (5MT:GL;5AGS:GX)STEERING COLUMN (5MT:GX)STEERING UNITPEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (5AGS)BRAKE MASTER CYLINDERBRAKE PIPINGANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

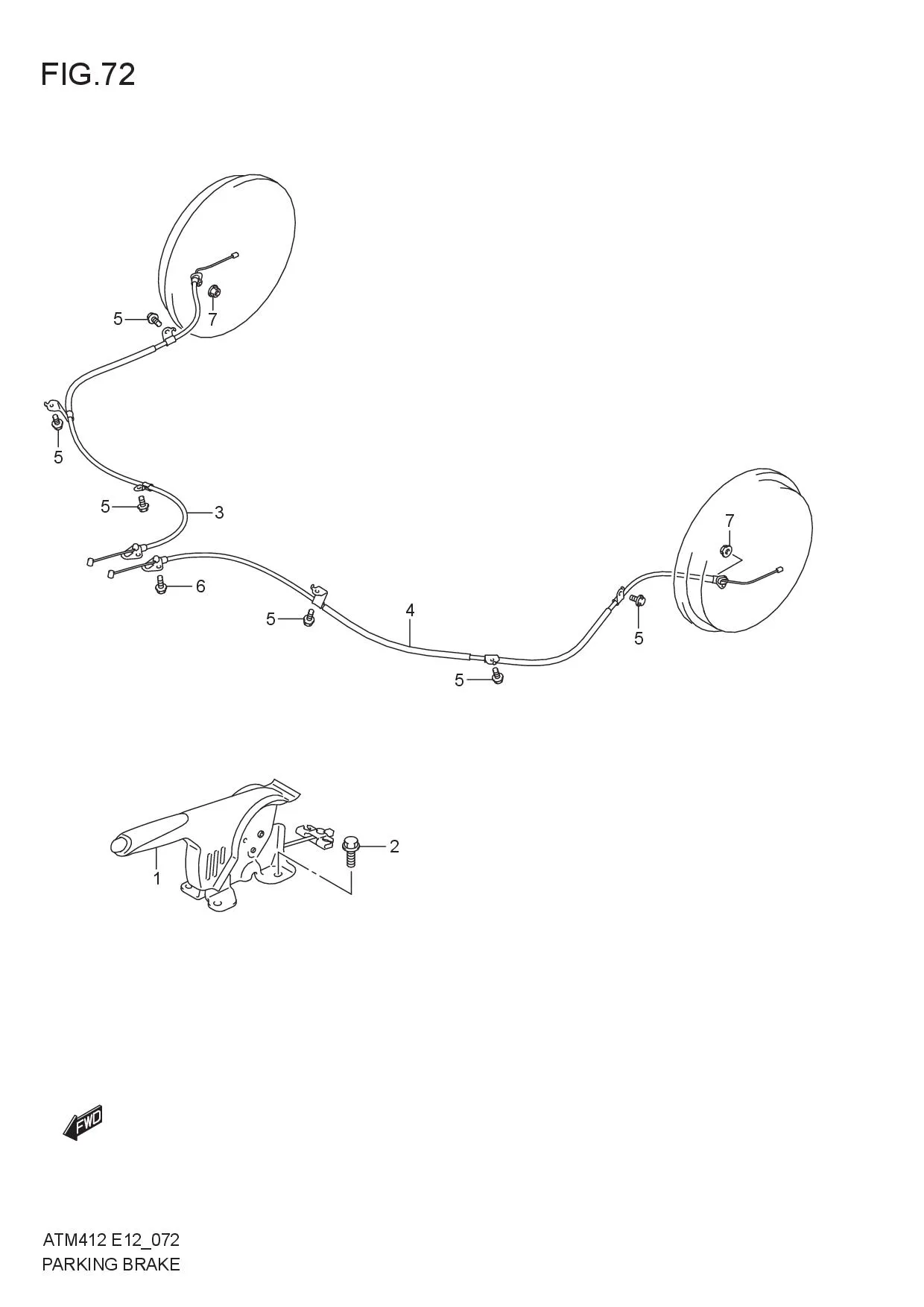

PARKING BRAKE

PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1-1 54100M66R10-5PK LEVER ASSY, PARKING BRAKE (BLACK) 1 Rp398.500 GL
1-2 54100M66R00-C48 LEVER ASSY, PARKING BRAKE (CHROME) 1 Rp411.000 GX
2 01551-0820A-000 BOLT 3 Rp17.500
3 54401M66R00-000 CABLE, PARKING BRAKE RH 1 Rp216.500
4 54402M66R00-000 CABLE, PARKING BRAKE LH 1 Rp225.000
5 02162-0612A-000 BOLT,PARKING CABLE CLAMP 6 Rp11.000
6 02162-0616A-000 BOLT,CASING CAP 2 Rp3.000
7 08316-1006A-000
SUB: 08316B1006AN000		 NUT,PARKING CABLE CAP 4 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
