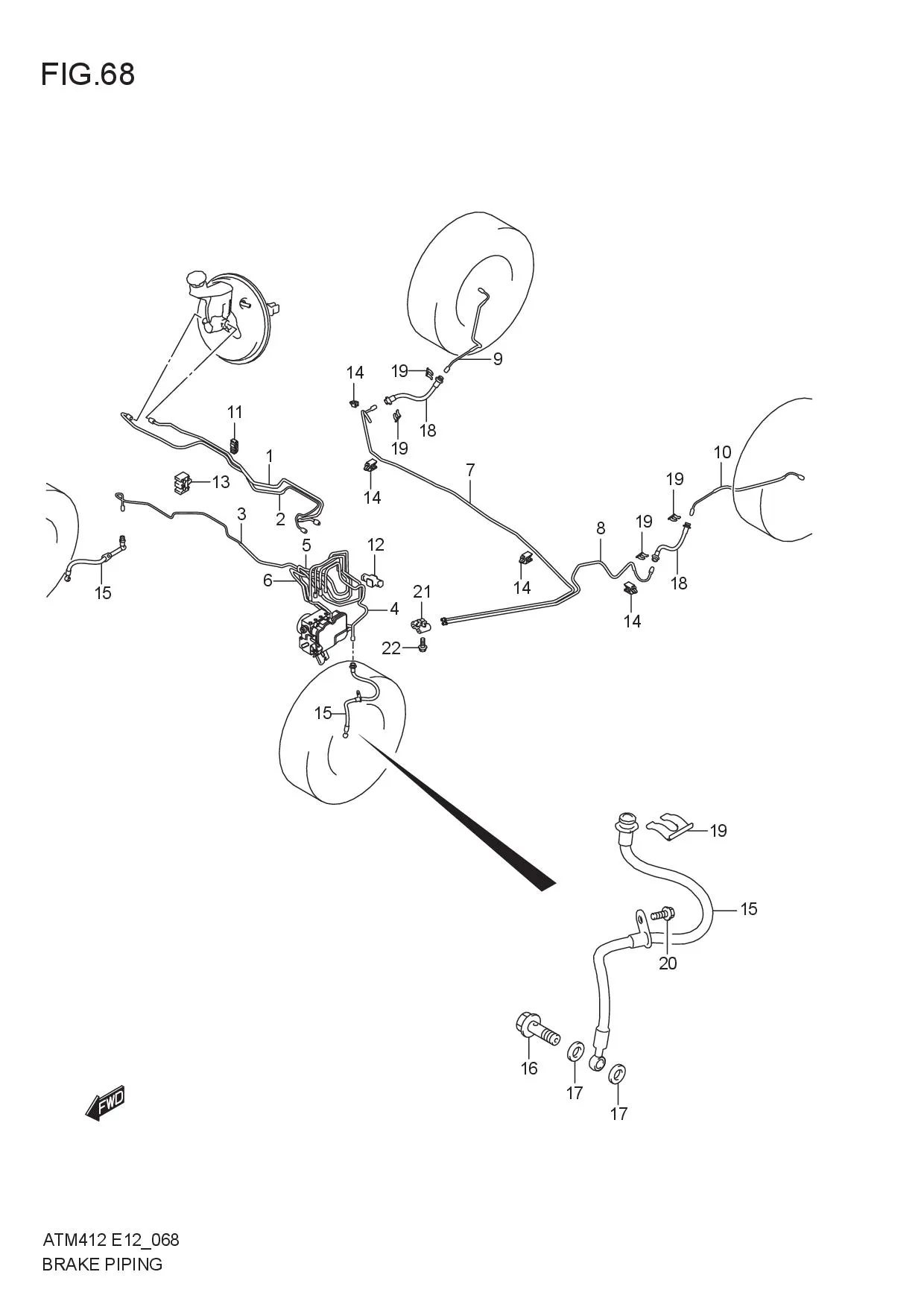

No	No. Part	Description	Qty	Price Per Pcs
1	51410M66R60-000	PIPE,MA PRI TO HU	1	Rp59.000
2	51420M66R60-000	PIPE,MA SEC TO HU	1	Rp64.000
3	51430M66R60-000	PIPE,HU TO FR BK HOSE,R	1	Rp102.000
4	51440M66R60-000	PIPE,HU TO FR BK HOSE,L	1	Rp39.000
5	51450M66R60-000	PIPE,HU TO JOINT,R	1	Rp71.000
6	51460M66R60-000	PIPE,HU TO JOINT,L	1	Rp65.500
7	51470M66R00-000	PIPE,JOINT TO RR BK HOSE,R	1	Rp191.000
8	51480M66R00-000	PIPE,JOINT TO RR BK HOSE,L	1	Rp135.500
9	51510M66R00-000	PIPE,RR BK HOSE TO RR W/C,R	1	Rp39.500
10	51520M66R00-000	PIPE,RR BK HOSE TO RR W/C,L	1	Rp39.500
11	51751M67P00-000	CLAMP,BK PIPE DASH TRIPLE	1	Rp8.000
12	51751M68P00-000	CLAMP,BK PIPE 4	1	Rp46.000
13	51761-70F00-000	CLAMP,BK PIPE DASH DOUBLE	1	Rp33.500
14	51761M60M20-000	CLAMP,BK PIPE REAR FL SINGLE	4	Rp5.500
15	51550M69R01-000 SUB: 51550M66R00-000	HOSE, FR BRAKE FLEXIBLE	2	Rp125.000
16	51561M55K00-000	BOLT, FR DISC FLEXIBLE HOSE	2	Rp8.500
17	51562M55K00-000	WASHER, FR DISC FLEXIBLE HOSE	4	Rp8.500
18	51570M69R00-000 SUB: 51570M66R00-000	HOSE, RR BRAKE FLEXIBLE	2	Rp111.000
19	09383M13005-000	E-RING	6	Rp7.000
20	01551-0816C-000 SUB: 01551-0816A-000	BOLT	2	Rp13.500
21	51630M70F00-000	JOINT, 4WAY BRAKE	1	Rp122.000
22	02162-0625A-000	BOLT	1	Rp3.500
