Suspension - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

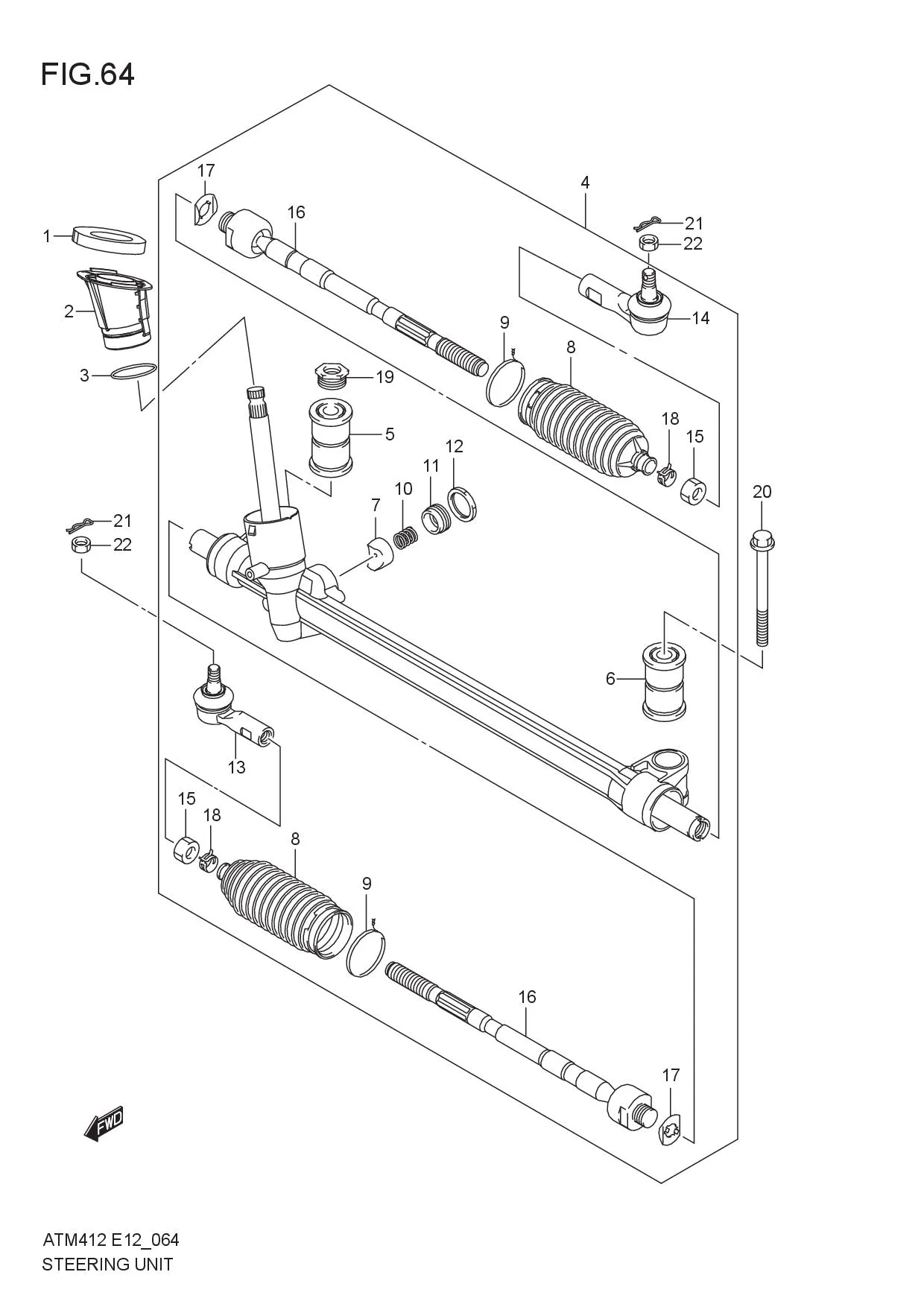

No	No. Part	Description	Qty	Price Per Pcs
1	48451M81P00-000	PACKING, STRG GEAR	1	Rp49.500
2	48452M81P00-000	COVER, STRG GEAR RH	1	Rp24.500
3	09280M46001-000	O RING	1	Rp5.500
4	48500M66R02-000 SUB: 48500M66R00-000	BOX ASSY, STRG GEAR	1	Rp3.540.500
5	48525M66R00-000	•MOUNT RH	1	Rp78.000
6	48525M66R50-000	•MOUNT LH	1	Rp107.000
7	48534M66R00-000	•YOKE	1	Rp167.000
8	48571M66R00-000	•BOOT, STRG	2	Rp173.500
9	48595M77P00-000	•STRAP	2	Rp6.000
10	48591M74L10-000	•SPRING	1	Rp20.500
11	48592M68P00-000	•PLUG	1	Rp35.500
12	48593M74L10-000	•NUT	1	Rp18.500
13	48810M66R00-000	•END, STEERING TIE-ROD RH	1	Rp151.500
14	48820M66R00-000	•END, STEERING TIE-ROD LH	1	Rp151.500
15	48817M74L10-000	•NUT	2	Rp5.500
16	48830M66R00-000	•TIE-ROD	2	Rp217.500
17	48841M67L00-000	•WASHER	2	Rp6.500
18	48871M74L10-000	•CLIP	2	Rp11.500
19	48562M74L10-000	•PINION COVER	1	Rp49.500
20	09116-12010-000	BOLT (12X77)	2	Rp60.000
21	09385-12002-000 SUB: 09385B12002N000	CLIP	2	Rp4.500
22	09140-12039-000 SUB: 09140B12039N000	NUT	2	Rp6.500
