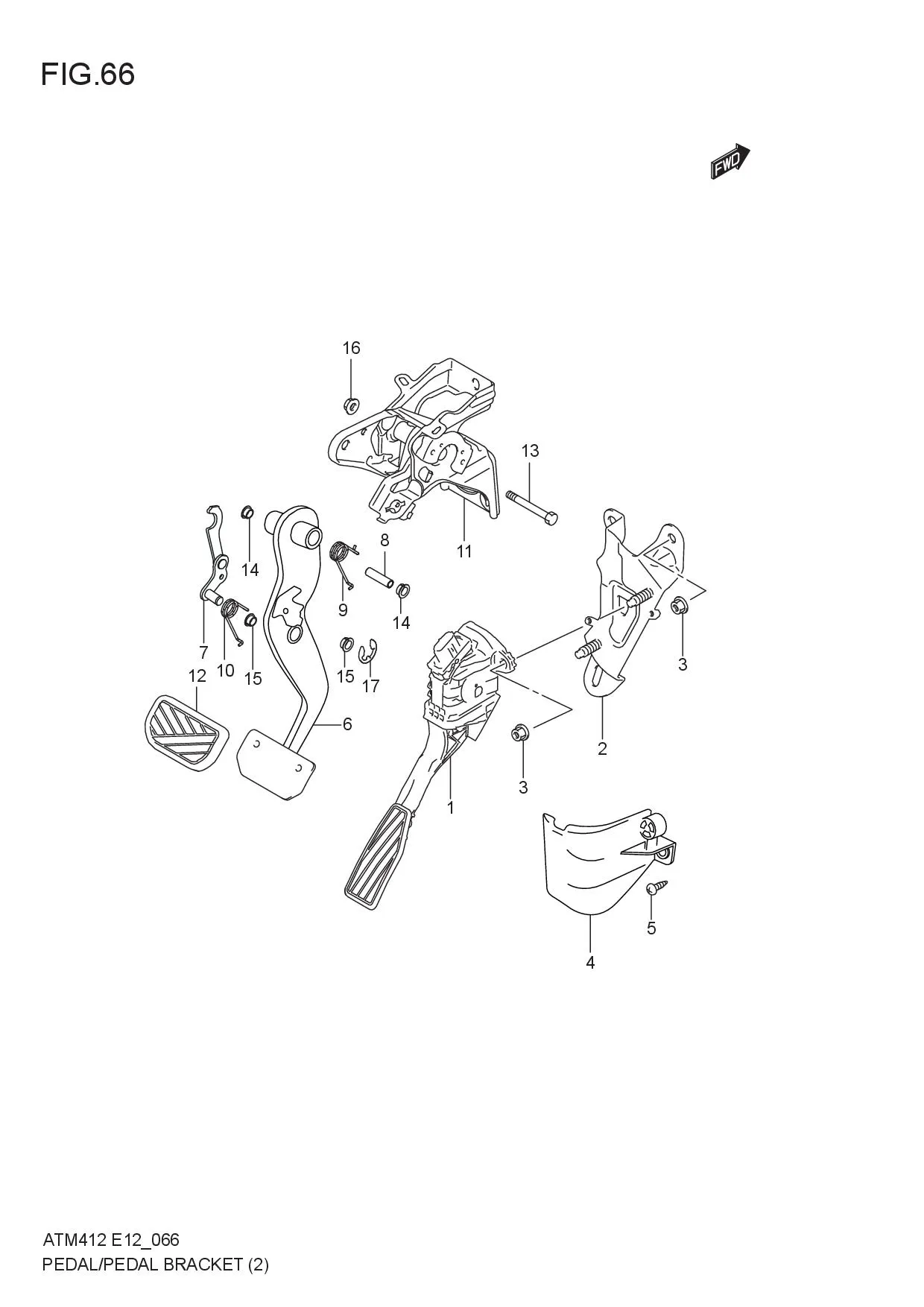

PEDAL/PEDAL BRACKET (5AGS)

PEDAL/PEDAL BRACKET (5AGS)
No No. Part Description Qty Price Per Pcs Remarks
1 49400M66R40-000 PEDAL ASSY, ACCELERATOR 1 Rp830.000
2 49511M62R01-000 BRACKET, ACCELERATOR PEDAL 1 Rp29.000
3 09159-08127-000
SUB: 09159M08153-000		 NUT 4 Rp11.000
4 49451M62R00-000 COVER,ACCELERATOR PEDAL 1 Rp24.500
5 03241-0512A-000
SUB: 03241B0512AN000		 SCREW,ACCEL PEDAL COVER 2 Rp3.500
6 49610M66RM0-000 PEDAL, BRAKE 1 Rp112.500
7 49630M62R00-000 LEVER,BRAKE PEDAL 1 Rp62.000
8 49671M74P00-000 SPACER,BRAKE PEDAL SHAFT 1 Rp10.500
9 49691M66R10-000 SPRING,BRAKE PEDAL RETURN 1 Rp16.000
10 49691M73H20-000 SPRING,BRAKE PEDAL RELEASE 1 Rp9.000
11 49710M62R00-000 BRACKET,BRAKE PEDAL 1 Rp134.000
12 49751M50M10-000 PAD,PEDAL 1 Rp24.000
13 09100-10124-000 BOLT,BRAKE PEDAL SHAFT 1 Rp19.500
14 09306M13004-000 BUSH,PEDAL BOSS 2 Rp11.500
15 09306M13004-000
SUB: 09307M13005-000		 BUSH,PEDAL BOSS 2 Rp11.500
16 08316-1010A-000
SUB: 08316B1010AN000		 NUT,BRAKE PEDAL SHAFT 1 Rp3.500
17 08332-1110A-000 E-RING,BRAKE PEDAL LEVER COMP 1 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
