Suspension - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

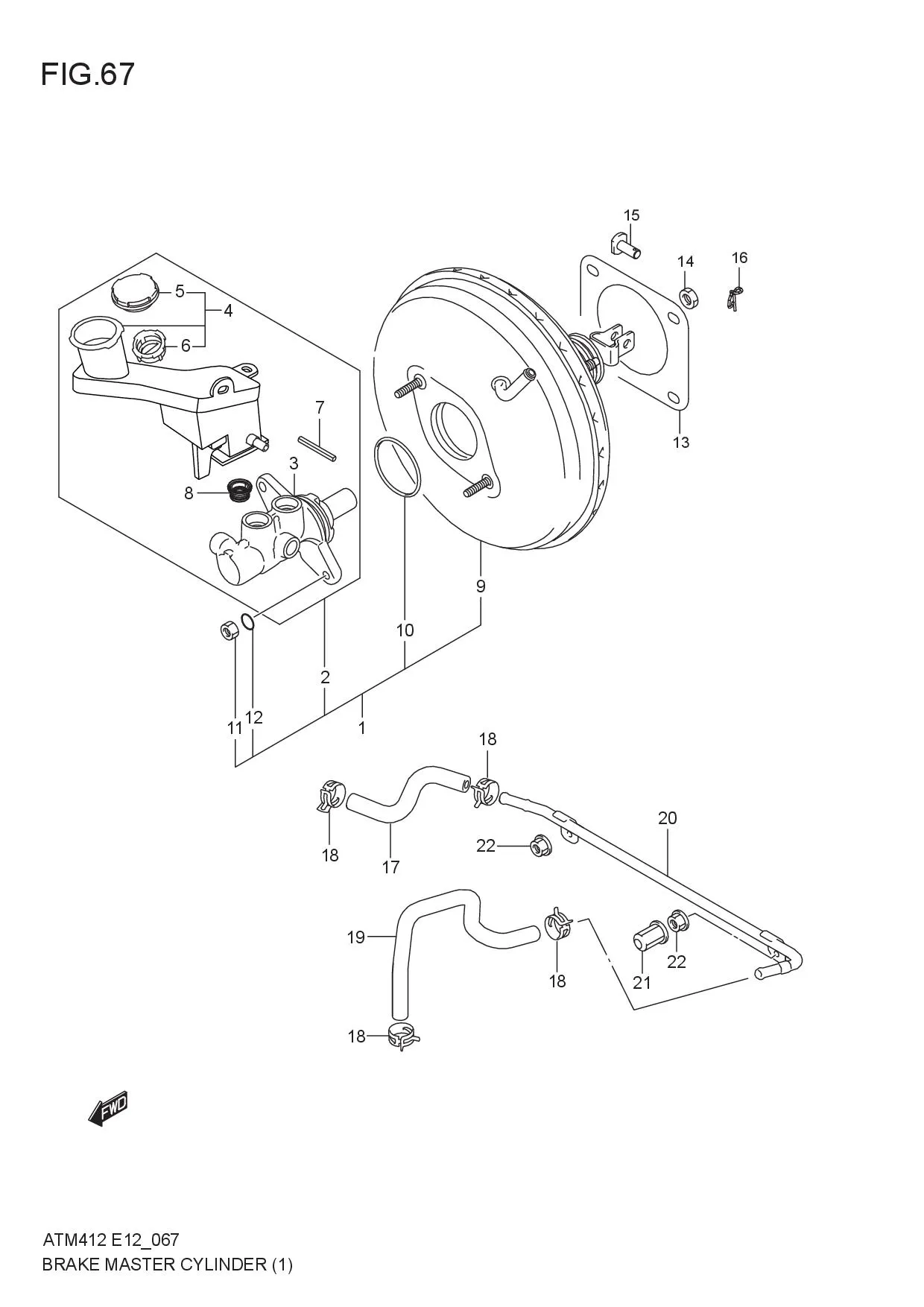

No	No. Part	Description	Qty	Price Per Pcs
1	51000M66R00-000	BOOSTER MASTER CYLINDER ASSY	1	Rp2.342.000
2	51100M66R20-000	•CYLINDER ASSY, BRAKE MASTER	1	Rp2.069.000
3	51110M66R00-000	••MASTER CYLINDER ASSY W/RES	1	Rp1.682.500
4	51200M66R00-000	••RESERVOIR ASSY, BRAKE MASTER	1	Rp554.500
5	51220M60M00-000	•••CAP, RESERVOIR	1	Rp41.000
6	51240M67LA0-000	•••FILTER	1	Rp51.500
7	51233M65J00-000	••PIN	1	Rp29.500
8	51232M74L00-000	••GROMMET	2	Rp37.500
9	51300M66R00-000	•BOOSTER ASSY, BRAKE MASTER	1	Rp1.714.000
10	51311M68K00-000	•O RING	1	Rp10.500
11	08310M68K00-000	•NUT	2	Rp11.500
12	08321M01083-000 SUB: 08321M0108A-000	•WASHER	2	Rp11.000
13	51132M79G10-000 SUB: 51132M79G00-000	PACKING, BRAKE MASTER CYLINDER	1	Rp5.500
14	09159-08127-000 SUB: 09159M08153-000	NUT	4	Rp11.000
15	51120M60M00-000	PIN, BRAKE MASTER CYLINDER	1	Rp10.500
16	09385M08L01-000	CLIP	1	Rp9.000
17	51020M66R50-000	HOSE COMP,VACUUM BSTR TO PIPE	1	Rp22.500
18	09401-15420-000	CLAMP	4	Rp17.000
19	51821M66R50-000	HOSE,BRAKE VACUUM PIPE TO INTK	1	Rp34.000
20	51870M66R50-000	PIPE COMP,BRAKE VACUUM	1	Rp90.000
21	75162M63H10-000	CLIP,STUD COVER	1	Rp8.000
22	08316-1006A-000 SUB: 08316B1006AN000	NUT,BRAKE VACUUM PIPE	2	Rp2.000
