Preview Engine Transmission Electrical Suspension Body

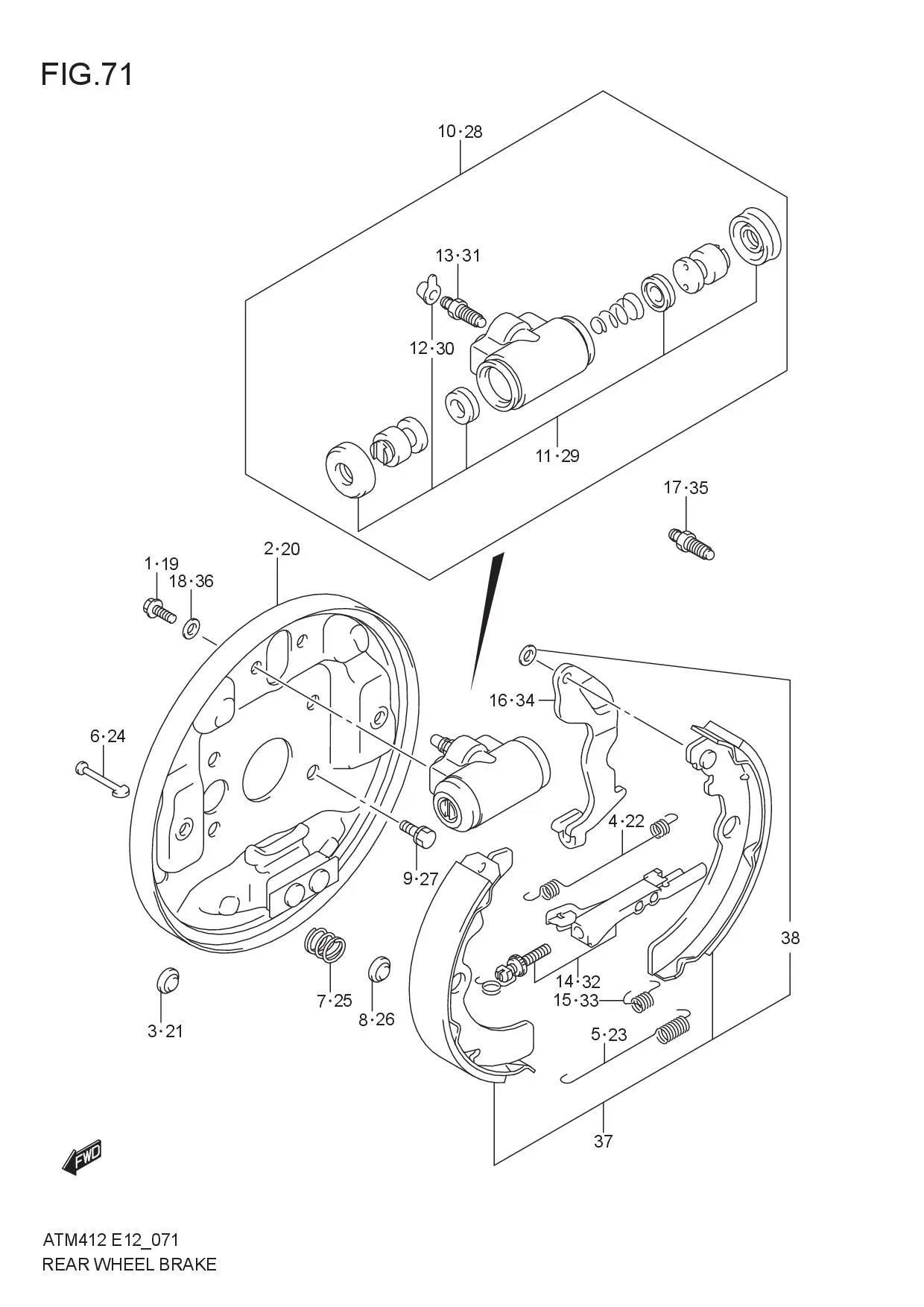

REAR WHEEL BRAKE

No	No. Part	Description	Qty	Price Per Pcs
1	52476M68K00-000	BOLT, WHEEL CYLINDER	2	Rp10.500
2	53101M68P00-000	PLATE, RR BRAKE RH	1	Rp297.500
3	53141M79F10-000	PLUG, BPACKING PLATE	1	Rp5.500
4	53231M76M00-000	SPRING, SHOE RETURN UPR	1	Rp16.500
5	53232M76M00-000	SPRING, SHOE RETURN LWR	1	Rp10.500
6	53241M68P50-000	PIN	2	Rp10.500
7	53243M68P00-000	SPRING, HOLD DOWN	2	Rp7.000
8	53244M79GC0-000	CUP	2	Rp9.500
9	53247M75J00-000	SCREW	1	Rp11.500
10	53402M67L00-000	CYLINDER ASSY, REAR WHEEL	1	Rp307.000
11	53400M79F10-000	•CUP SET, RR WHEEL CYLINDER	1	Rp43.500
12	55156M68K00-000	••CAP, BLEEDER PLUG	1	Rp5.500
13	55473M68K00-000	•PLUG, BLEEDER	1	Rp12.500
14	53701M68P00-000	STRUT ASSY RH	1	Rp324.000
15	53715M76M00-000	SPRING, STRUT RETURN RH	1	Rp6.000
16	53751M68P00-000	LEVER, PARKING SHOE RH	1	Rp51.500
17	55473M68K00-000	PLUG, BLEEDER	1	Rp12.500
18	DISCONTINUE SUB: 08321M0106A-000	WASHER	2	-
19	52476M68K00-000	BOLT, WHEEL CYLINDER	2	Rp10.500
20	53102M68P00-000	PLATE, RR BRAKE LH	1	Rp297.500
21	53141M79F10-000	PLUG, BPACKING PLATE	1	Rp5.500
22	53231M76M00-000	SPRING, SHOE RETURN UPR	1	Rp16.500
23	53232M76M00-000	SPRING, SHOE RETURN LWR	1	Rp10.500
24	53241M68P50-000	PIN	2	Rp10.500
25	53243M68P00-000	SPRING, HOLD DOWN	2	Rp7.000
26	53244M79GC0-000	CUP	2	Rp9.500
27	53247M75J00-000	SCREW	1	Rp11.500
28	53402M67L00-000	CYLINDER ASSY, REAR WHEEL	1	Rp307.000
29	53400M79F10-000	•CUP SET, RR WHEEL CYLINDER	1	Rp43.500
30	55156M68K00-000	••CAP, BLEEDER PLUG	1	Rp5.500
31	55473M68K00-000	•PLUG, BLEEDER	1	Rp12.500
32	53702M68P00-000	STRUT ASSY LH	1	Rp324.000
33	53716M76M00-000	SPRING, STRUT RETURN LH	1	Rp6.000
34	53761M68P00-000	LEVER, PARKING SHOE LH	1	Rp53.500
35	55473M68K00-000	PLUG, BLEEDER	1	Rp12.500
36	DISCONTINUE SUB: 08321M0106A-000	WASHER	2	-
37	53200M68P00-000	SHOE SET	1	Rp515.500
38	53753M68K00-000	•PUSH NUT	2	Rp5.500
