IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFTFRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRESTEERING WHEEL (GL)STEERING WHEEL (GX)STEERING COLUMN (5MT:GL;5AGS:GX)STEERING COLUMN (5MT:GX)STEERING UNITPEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (5AGS)BRAKE MASTER CYLINDERBRAKE PIPINGANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

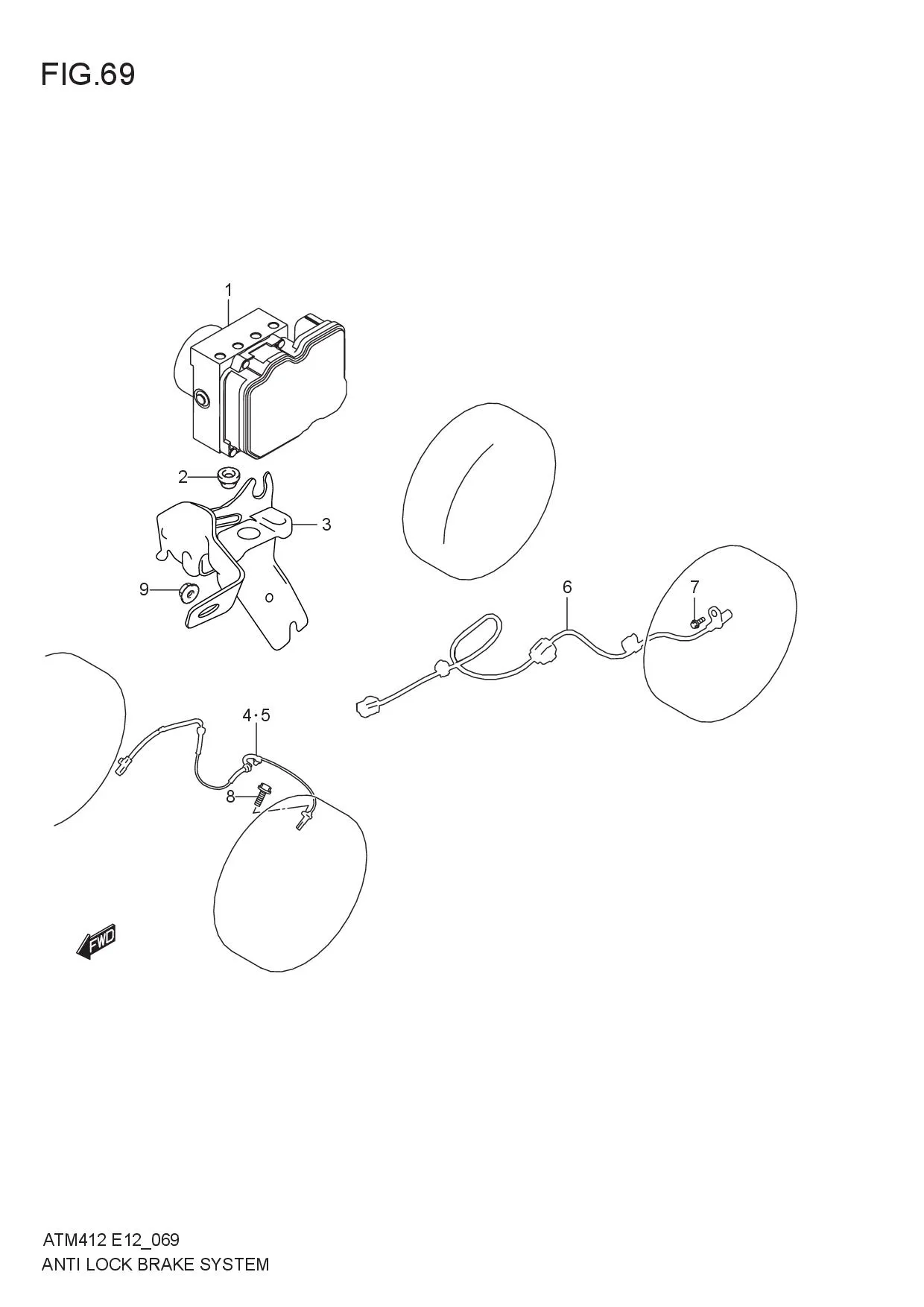

ANTI LOCK BRAKE SYSTEM

ANTI LOCK BRAKE SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1 56130M66R00-000 ACTUATOR ASSY, ABS 1 Rp8.882.500
2 56121-58J00-000 DAMPER, ACTUATOR MOUNT 1 Rp40.500
3 56161M66R00-000 BRACKET, ACTUATOR 1 Rp44.500
4 56210M62R00-000 SENSOR, FR WHEEL RH 1 Rp424.000
5 56220M76R00-000
SUB: 56220M62R00-000		 SENSOR, FR WHEEL LH 1 Rp423.500
6 56310M62R01-000
SUB: 56310M62R00-000		 SENSOR, RR WHEEL 2 Rp349.500
7 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,RR WHEEL SENSOR 6 -
8 02162-0616A-000 BOLT,FR WHEEL SENSOR 2 Rp3.000
9 08316-1008A-000
SUB: 08316B1008AN000		 NUT,ACTUATOR BRACKET 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
