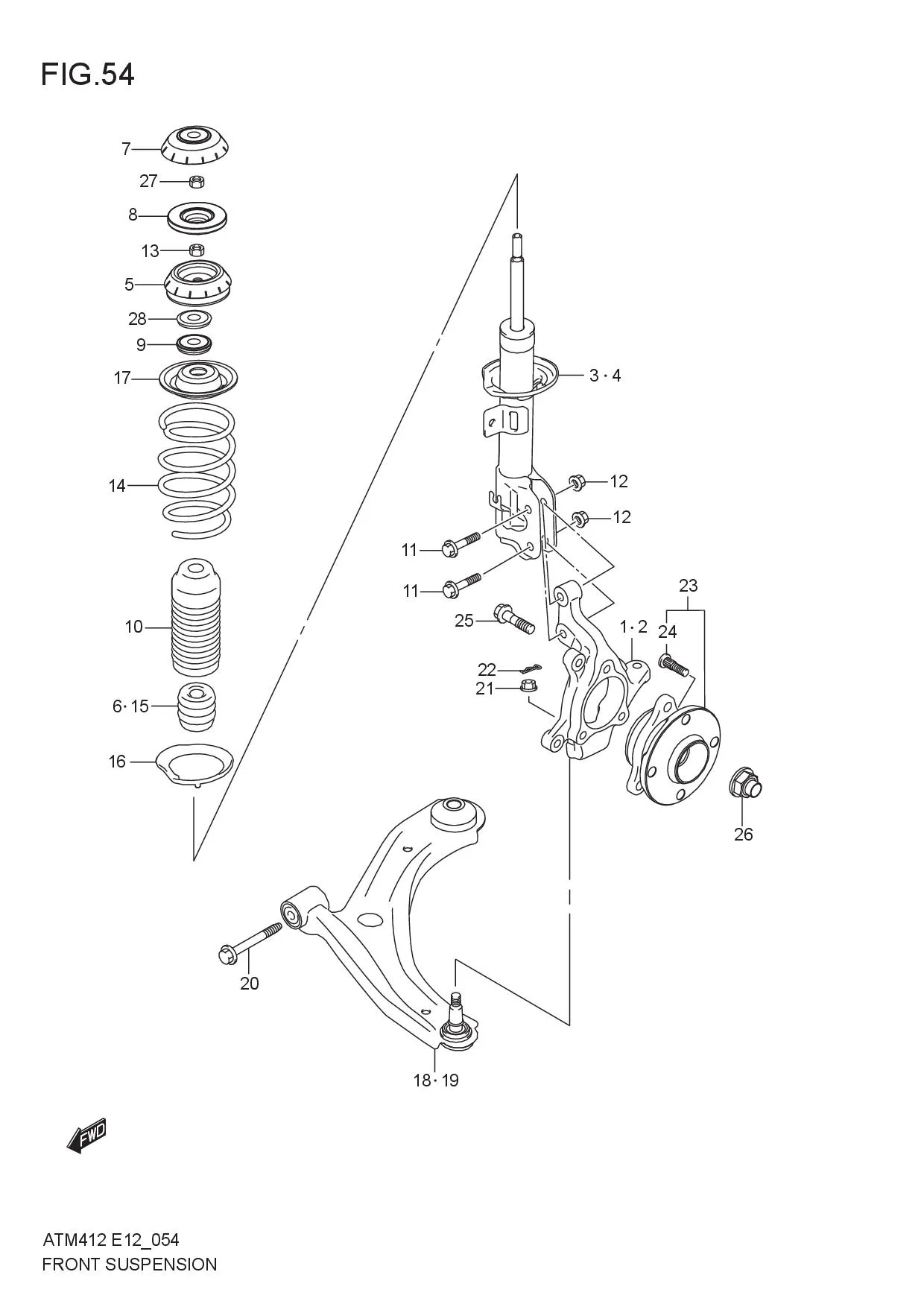

FRONT SUSPENSION

FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111M66R00-000 KNUCKLE, STEERING RH 1 Rp784.000
2 45151M66R00-000 KNUCKLE, STEERING LH 1 Rp784.000
3 41601M66R00-000 STRUT ASSY, FRONT SPNSN RH 1 Rp636.500
4 41602M66R00-000 STRUT ASSY, FRONT SPNSN LH 1 Rp636.500
5 41710M66R00-000 SUPPORT, FRONT STRUT 2 Rp125.500
6 42111M66R00-000 STOPPER,FRONT BUMP 2 Rp54.500
7 41724M65P00-000 CAP, STRUT ROD 2 Rp10.000
8 41720M66R00-000 STOPPER,FRONT STRUT REBOUND 2 Rp50.500
9 41741M66R00-000 BEARING, FR STRUT 2 Rp98.500
10 41931M66R00-000 COVER, STRUT DUST 2 Rp74.000
11 09103-12118-000 BOLT (12X50) 4 Rp33.000
12 41616M76M00-000 NUT, STRUT BRACKET 4 Rp15.000
13 08310M0012A-000 NUT,STRUT SUPPORT LOWER 2 Rp5.000
14 41111M66R00-000 SPRING, FRONT COIL 2 Rp272.000
15 42111M66R00-000 STOPPER, FRONT BUMP 2 Rp54.500
16 41212M74P01-000 SEAT, FR SPRING LWR 2 Rp49.500
17 41230M74P00-000 SEAT, FR SPRING UPR 2 Rp49.500
18 45201M66R01-000
SUB: 45201M66RA0-000		 ARM ASSY, FRONT SUSPENSION RH 1 Rp734.000
19 45202M66R01-000
SUB: 45202M66RA0-000		 ARM ASSY, FRONT SUSPENSION LH 1 Rp734.000
20 45853-74P01-000
SUB: 45853-74P00-000		 BOLT, SPNSN ARM FR BUSHING 2 Rp69.000
21 09159-12069-000 NUT 2 Rp23.000
22 09385-12002-000
SUB: 09385B12002N000		 PIN 2 Rp4.500
23 43401M68P01-000
SUB: 43401M68P00-000		 HUB ASSY, FRONT WHEEL 2 Rp1.201.000
24 43423M79G00-000 •BOLT,FRONT HUB 8 Rp22.500
25 43458M68P00-000 BOLT, HUB 8 Rp25.000
26 09159-18024-000 NUT 2 Rp74.500
27 09140-12054-000 NUT 2 Rp18.500
28 41711M52R00-000 PLATE,STRUT BEARING 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
