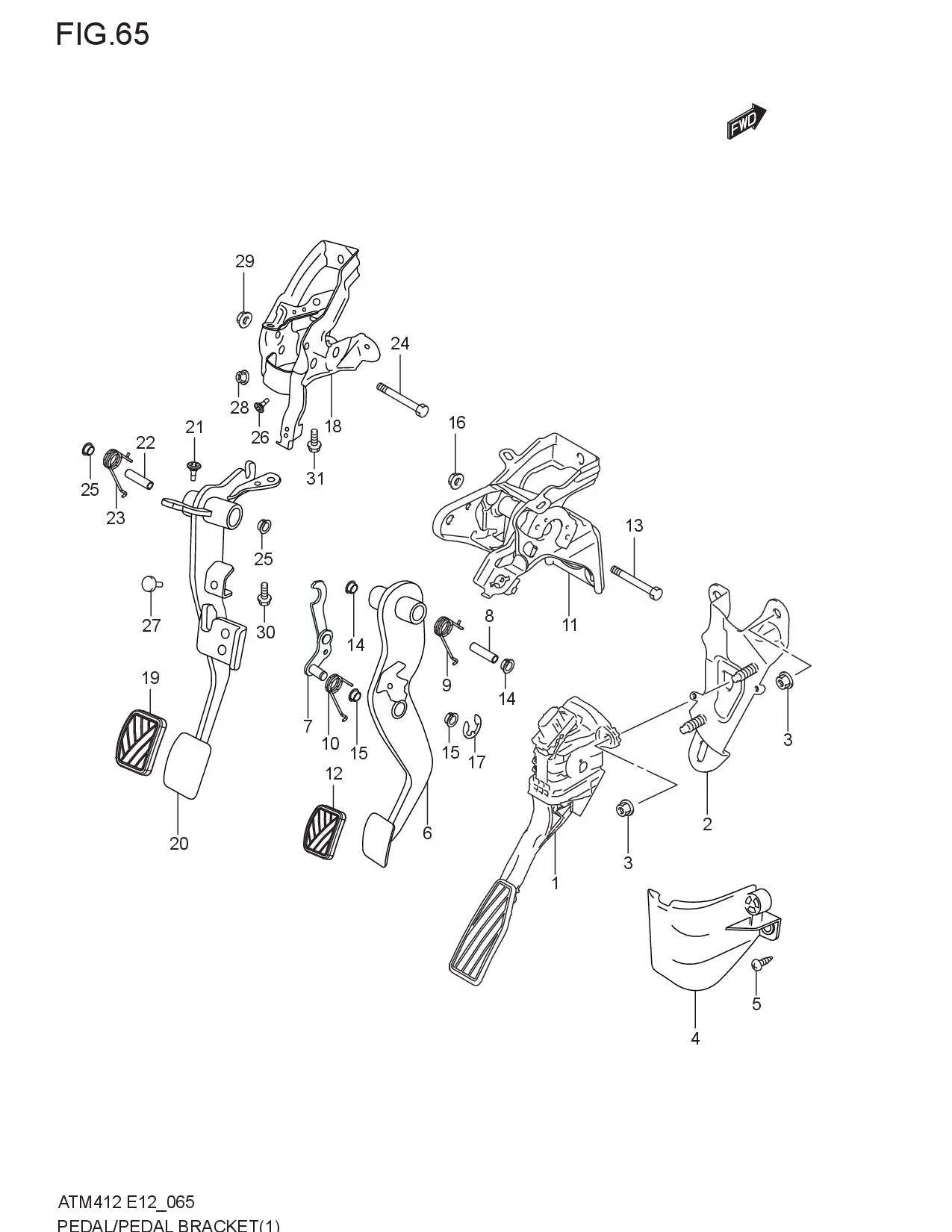

PEDAL/PEDAL BRACKET (5MT)

No	No. Part	Description	Qty	Price Per Pcs
1	49400M66R40-000	PEDAL ASSY, ACCELERATOR	1	Rp830.000
2	49511M62R01-000	BRACKET, ACCELERATOR PEDAL	1	Rp29.000
3	09159-08127-000 SUB: 09159M08153-000	NUT	4	Rp11.000
4	49451M62R00-000	COVER,ACCELERATOR PEDAL	1	Rp24.500
5	03241-0512A-000 SUB: 03241B0512AN000	SCREW,ACCEL PEDAL COVER	2	Rp3.500
6	49610M66RL0-000	PEDAL, BRAKE	1	Rp112.500
7	49630M62R00-000	LEVER COMP,BRAKE PEDAL	1	Rp62.000
8	49671M74P00-000	SPACER,BRAKE PEDAL SHAFT	1	Rp10.500
9	49691M66R10-000	SPRING,BRAKE PEDAL RETURN	1	Rp16.000
10	49691M73H20-000	SPRING,BRAKE PEDAL RELEASE	1	Rp9.000
11	49710M62R00-000	BRACKET COMP,BRAKE PEDAL	1	Rp134.000
12	49751M58J00-000	PAD,PEDAL	1	Rp9.500
13	09100-10124-000	BOLT,BRAKE PEDAL SHAFT	1	Rp19.500
14	09306M13004-000	BUSH,PEDAL BOSS	2	Rp11.500
15	09306M13004-000 SUB: 09307M13005-000	BUSH,PEDAL BOSS	2	Rp11.500
16	08316-1010A-000 SUB: 08316B1010AN000	NUT,BRAKE PEDAL SHAFT	1	Rp3.500
17	08332-1110A-000	E-RING,BRAKE PEDAL LEVER COMP	1	Rp12.500
18	49720M62R00-000	BRACKET,CLUTCH PEDAL	1	Rp156.000
19	49751M58J00-000	PAD, PADEL	1	Rp9.500
20	49810M66R20-000 SUB: 49810M62R00-000	PEDAL, CLUTCH	1	Rp162.500
21	49825M74L10-000	CUSHION,CLUTCH PEDAL START SW	1	Rp9.000
22	49871M80F00-000	SPACER,CLUTCH PEDAL SHAFT	1	Rp8.500
23	49891M62R00-000	SPRING,CLUTCH PEDAL	1	Rp9.000
24	DISCONTINUE SUB: 09100-10304-000	BOLT	1	-
25	09306M13004-000	BUSH	2	Rp11.500
26	09321M06026-000	CUSHION	1	Rp4.500
27	09321-06033-000	CUSHION	1	Rp19.000
28	08310-0006A-000 SUB: 08310B0006AN000	NUT	1	Rp2.500
29	08316-1010A-000 SUB: 08316B1010AN000	NUT	1	Rp3.500
30	09100M10324-000	BOLT,CLUTCH PEDAL SHAFT	1	-
31	09100M06150-000	BOLT,CLUTCH PEDAL STOP	1	Rp4.500
