IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKET SETCYLINDER HEADCYLINDEROIL PANCRANK SHAFTCAM SHAFT/VALVECAM CHAINENGINE MOUNTINGINTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPE/FUEL INJECTOROIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

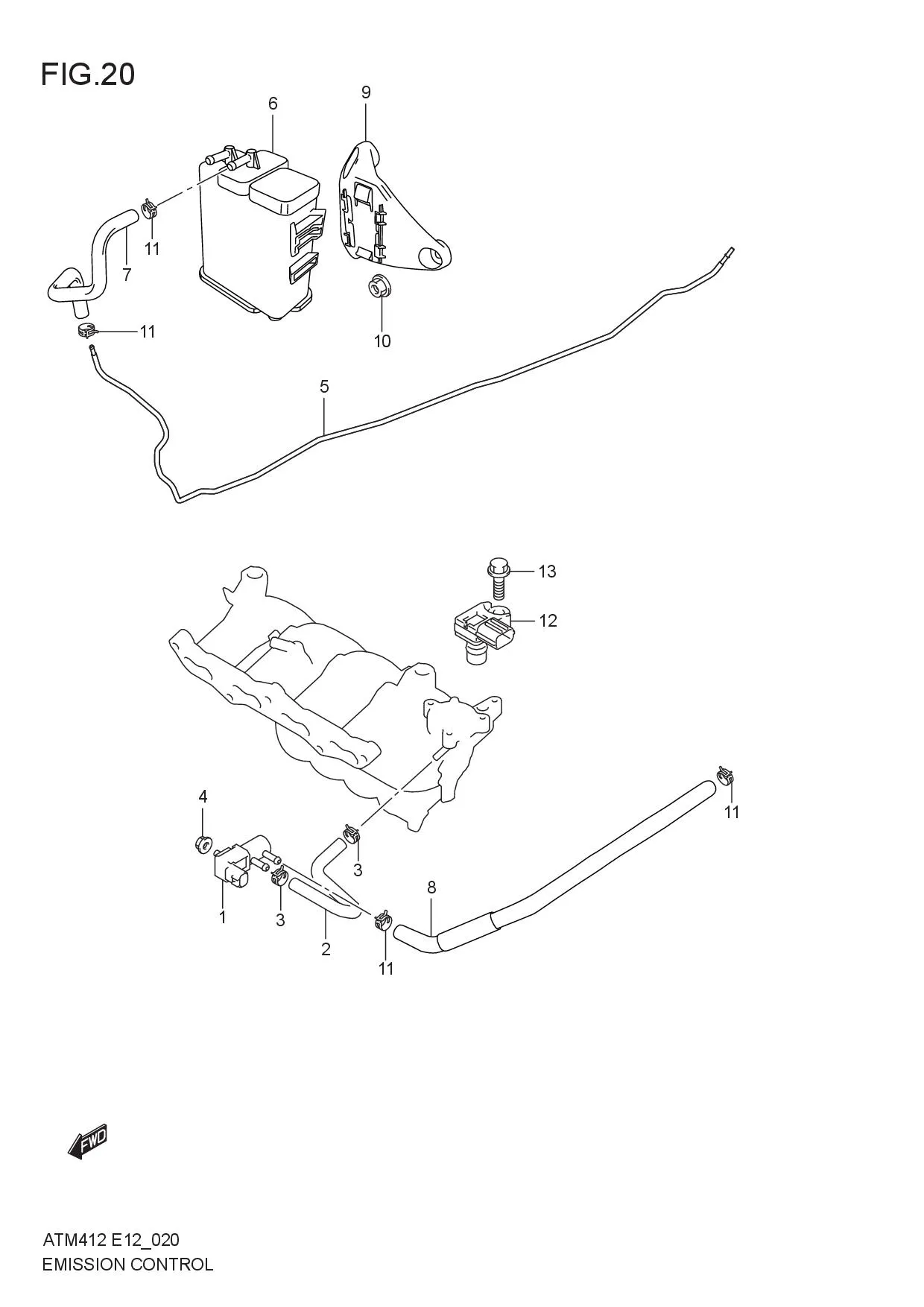

EMISSION CONTROL

EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18114M76M00-000 VALVE ASSY, DUTY FOR PURGE 1 Rp322.500
2 18564M66R00-000 HOSE, PURGE 1 Rp53.000
3 09401M11432-000 CLIP 2 Rp6.000
4 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
5 18351M62R11-000 PIPE, FUEL EVAP 1 Rp183.000
6 18560M66R00-000 CANISTER 1 Rp311.500
7 18561M66R00-000 HOSE, CANISTER INLET 1 Rp53.000
8 18562M66R00-000 HOSE, PURGE 1 Rp67.500
9 18570M62R10-000 BRACKET, CANISTER 1 Rp33.000
10 09159-06076-000 NUT 3 Rp19.500
11 09401M11432-000 CLIP 4 Rp6.000
12 18590M76M00-000 SENSOR, MAP 1 Rp379.500
13 01550-0620C-000 BOLT 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
