IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKET SETCYLINDER HEADCYLINDEROIL PANCRANK SHAFTCAM SHAFT/VALVECAM CHAINENGINE MOUNTINGINTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPE/FUEL INJECTOROIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

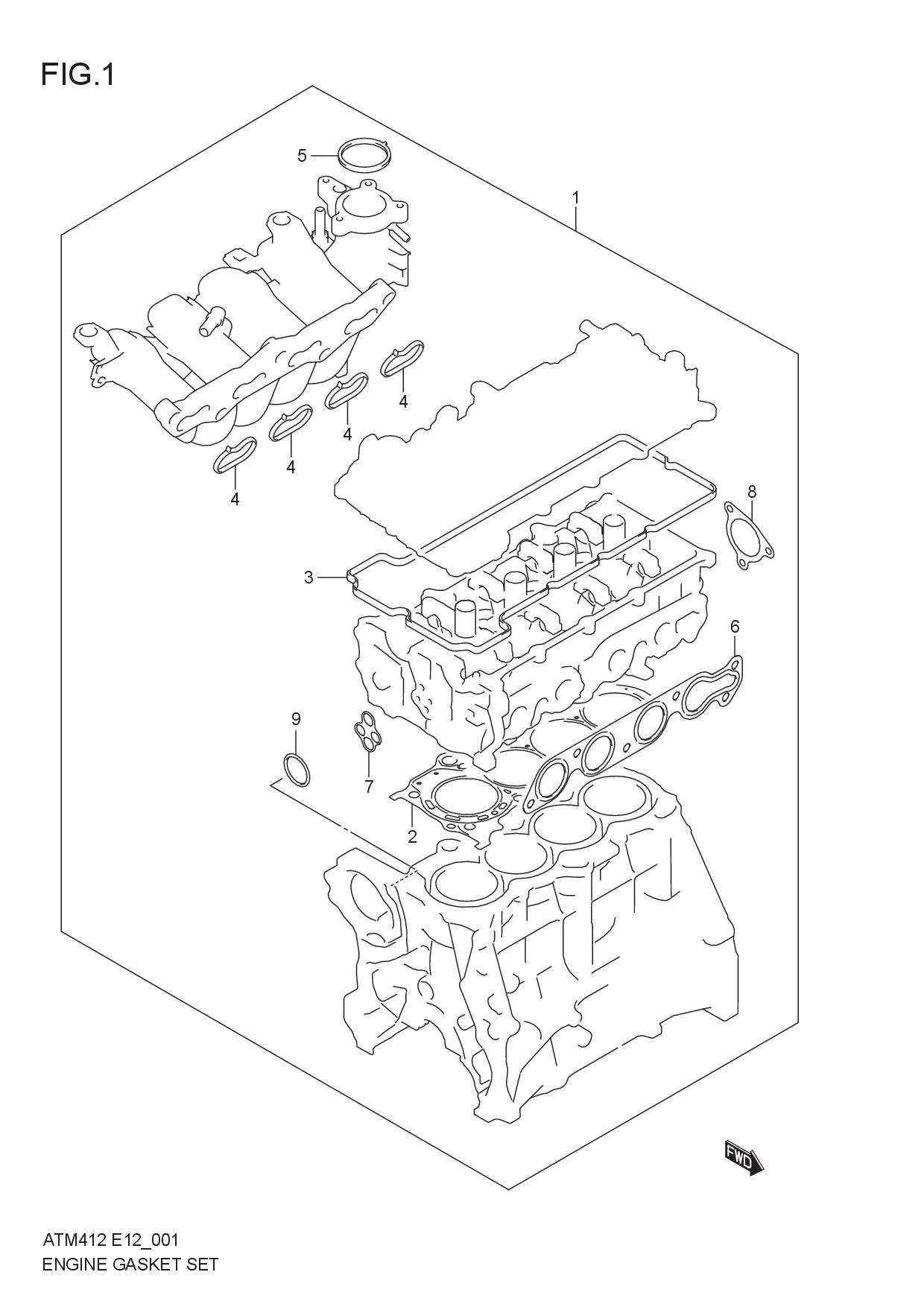

ENGINE GASKET SET

ENGINE GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
1 11401M68870-000 GASKET SET, ENGINE NO.1 1 Rp788.500
2 11141M68P00-000 •GASKET, CYLINDER HEAD 1 Rp450.000
3 11189M83P00-000 •GASKET, CYLINDER HEAD COVER 1 Rp191.500
4 13118M68P00-000 •GASKET, INTK MANF 4 Rp25.000
5 13421M68P00-000 •GASKET, THROTTLE BODY 1 Rp45.000
6 14140M83K00-000 •GASKET, EXH MANF 1 Rp66.500
7 16118M74LB0-000 •O RING, OIL PUMP CASE 1 Rp11.500
8 17699M68K00-000 •GASKET, THERMO CASE 1 Rp13.000
9 09280M28L01-000 •O RING (D:3•5,ID:27•7) 1 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
