IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKET SETCYLINDER HEADCYLINDEROIL PANCRANK SHAFTCAM SHAFT/VALVECAM CHAINENGINE MOUNTINGINTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPE/FUEL INJECTOROIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

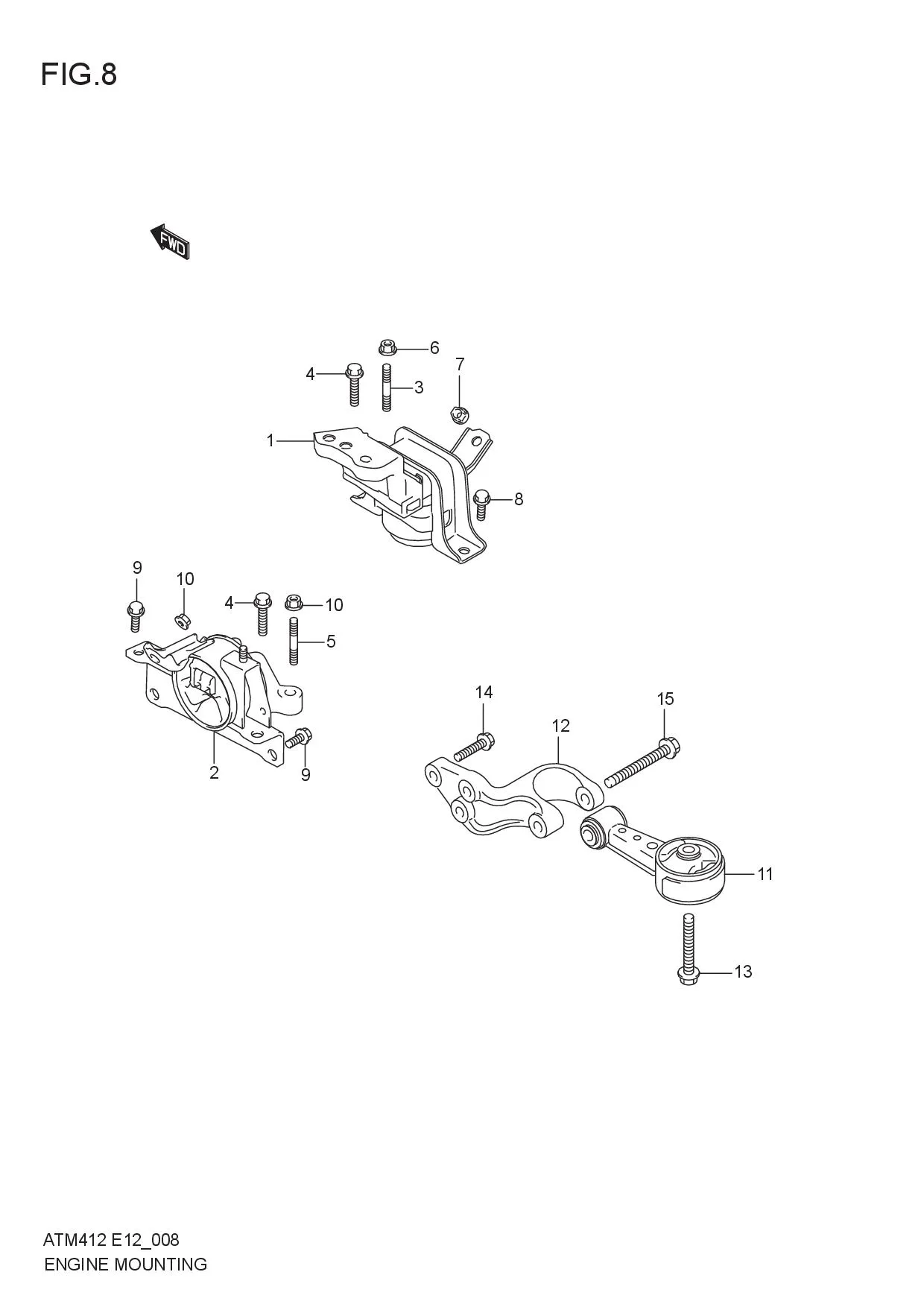

ENGINE MOUNTING

ENGINE MOUNTING
No No. Part Description Qty Price Per Pcs Remarks
1 11610M66R00-000 MOUNTING, ENG RH 1 Rp758.500
2 11620M66R00-000 MOUNTING, ENG LH 1 Rp595.000
3 11653-79J50-000 BOLT, ENG LH MTG BRKT STUD 2 Rp40.000
4 01550-1040A-000
SUB: 01550B1040AN000		 BOLT (10X50) 1 Rp7.000
5 09108M10165-000 BOLT 2 Rp21.000
6 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
7 08316-1010A-000
SUB: 08316B1010AN000		 BOLT 1 Rp3.500
8 01551-1025A-000 BOLT 3 Rp29.000
9 01551-1025A-000 BOLT 4 Rp29.000
10 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
11 11910M66R00-000 ROD,ENG RR 1 Rp315.000
12 11941M66R00-000 BRACKET, ENG RR MTG 1 Rp420.000
13 09113M12010-000 BOLT (10X85) 1 -
14 01550M1040C-000 BOLT 3 -
15 01550M1290A-000 BOLT 1 Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
