IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKET SETCYLINDER HEADCYLINDEROIL PANCRANK SHAFTCAM SHAFT/VALVECAM CHAINENGINE MOUNTINGINTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPE/FUEL INJECTOROIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

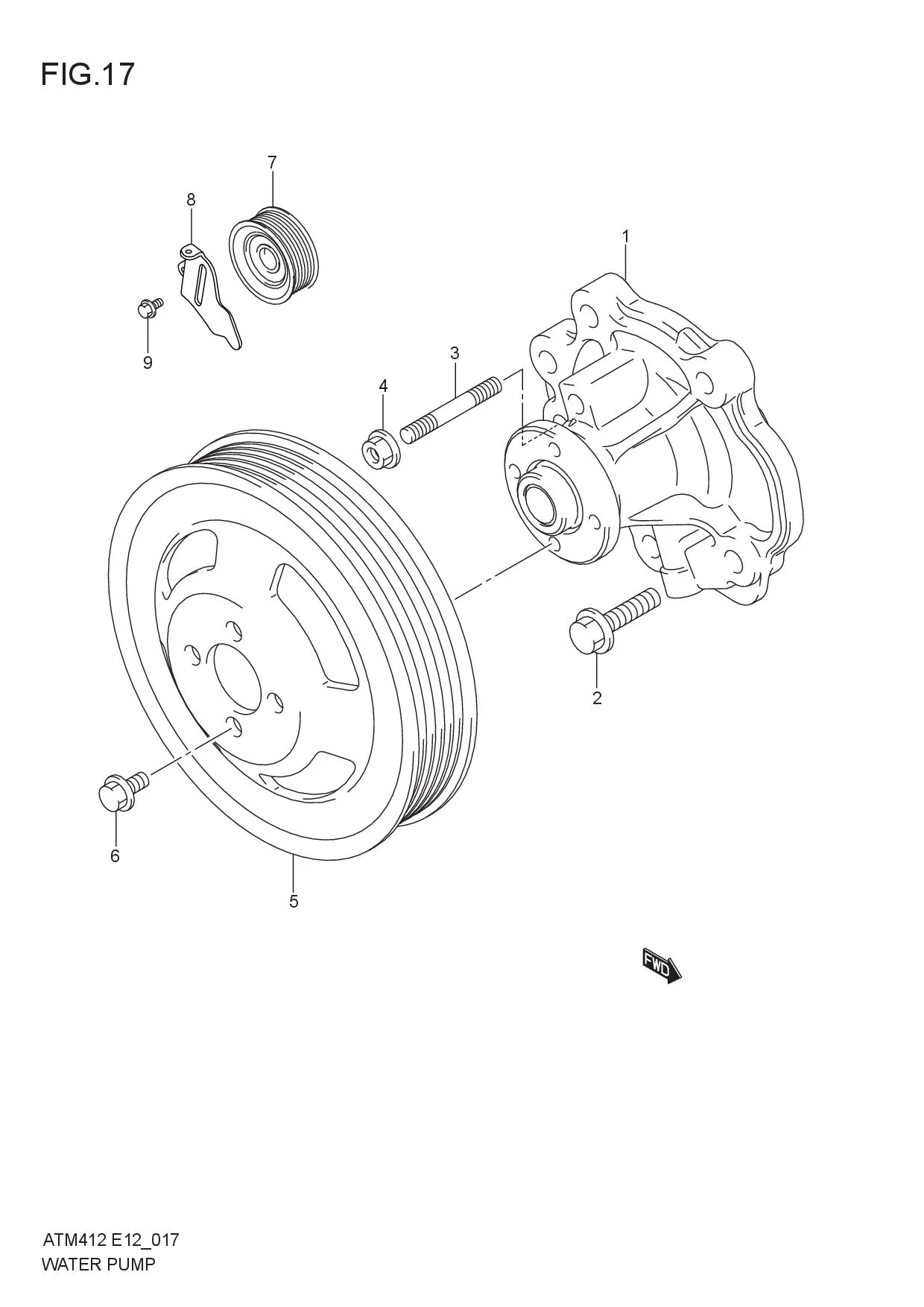

WATER PUMP

WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17400M67L24-000
SUB: 17400M67L20-000		 PUMP ASSY, WATER 1 Rp741.000
2 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 4 Rp4.000
3 01421-0835A-000 STUD BOLT 2 Rp13.500
4 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
5 17511M68PA0-000 PULLEY, WATER PUMP 1 Rp135.500
6 01550-0610B-000
SUB: 01550B0610AN000		 BOLT 4 Rp3.000
7 17530-62R03-000
SUB: 17530-62R01-000		 PULLEY COMP,BELT TENSIONER 1 Rp580.000
8 17541M72R00-000
SUB: 17541M66R00-000		 ARM,BELT TENSIONER 1 Rp82.000
9 17545-62R00-000 BOLT,TENSIONER PULLEY 1 Rp41.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
